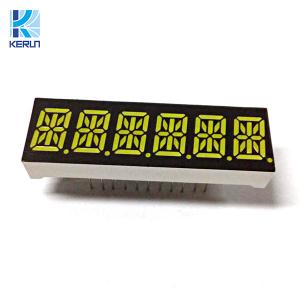

6 Digit 14 Segment LED Display Common Anode 10mm For Taximeter

    Buy cheap 6 Digit 14 Segment LED Display Common Anode 10mm For Taximeter from wholesalers

    Buy cheap 6 Digit 14 Segment LED Display Common Anode 10mm For Taximeter from wholesalers
    • Buy cheap 6 Digit 14 Segment LED Display Common Anode 10mm For Taximeter from wholesalers
    • Buy cheap 6 Digit 14 Segment LED Display Common Anode 10mm For Taximeter from wholesalers
    • Buy cheap 6 Digit 14 Segment LED Display Common Anode 10mm For Taximeter from wholesalers

    6 Digit 14 Segment LED Display Common Anode 10mm For Taximeter

    Ask Lasest Price
    Brand Name : KeRun
    Model Number : KRS-25183CUR
    Certification : ROHS,SGS,REACH
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram, L/C
    Supply Ability : 10000pcs/day
    Delivery Time : 20-25 working days, can negotiate based on order quantity
    • Product Details
    • Company Profile

    6 Digit 14 Segment LED Display Common Anode 10mm For Taximeter

    6 Digit 14 Segment LED Display Common Anode 10mm For Taximeter


    Super Bright Red 6 Digit 14 Segment Led Display 10mm For Taximeter


    Quick details


    • 14 Segment Single-Digit Alphanumeric LED Display
    • Character height are available from 6.2mm (0.25") to 500.00mm(20")
    • long life span
    • OEM / ODM
    • for temperature and humidity indicators
    • Excellent design of outer appearance
    • Strict quality testing before it leave the factory
    • We have our own production workshop and production facility
    • We can customize it according to your requirements

    Absolute Maximum Ratings(Ta=25℃)

    ParameterSymbolRatingsUnit
    Forward Current(per dice)Ipm20mA
    Reverse Voltage(per dice)Vr5V
    Power Dissipation(per dice)Pm80mW
    Operating Temperature RangeTopr-40~+85
    Storage Temperature RangeTstg-40~+85
    Solder Temperature(3 sec)Th260


    Code:R(Super bright Red)

    ParameterSymbolConditionMinTypMaxUnit
    Forward Voltage(Per dice)VfIf=20mA1.82.5V
    Reverse Voltage(Per dice)VrIr=10uA5V
    Luminous Intensty(Per dice)IvIf=20mA80100mcd
    Spectrum With Of Half Value△λIf=20mA20nm
    WavelengthIf=20mA622625nm
    LED working lifetime 100,000hrs Absolute Maximum Rating at Ta=25℃

    Inner package: Thin plastic film surround the products to protect it from scratching and water.
    Outer package: Internationally standard K3 K5 layers corrugated cartons.
