Quarts sand and activated carbon filter sand carbon filter
Please Attention
HY FACTORY OFFER YOU :
1: FACTORY DIRECT PRICE.
2: NICE QUALITY.
3: ONLINE PAYMENT.
4: SUPPORT REFUND AFTER YOUR INSTALLED THE PLANT IF THERE ARE ANY
PROBLME.
5: AFTER SALES SERVICES 24/7
6. Letters patent
7. ENGINNER CAN BE OVERSEA INSTALLNATION
We have 2 factories +300 workers+ Qualified engineer+ Engineer
Overseas service

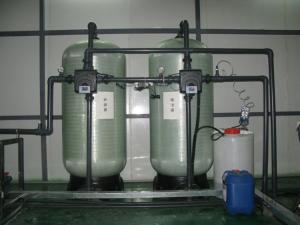

Quarts sand and activated carbon filter sand carbon filter Process function description
1. Sand carbon filter use automatic control and semi-control .Pretreatment parts can
adopt fiber glass or stainless steel material.
2.Sand and activated carbon filters has protected when no power, poor power, larger electrical current,
leakage, short circuit.
3.Sand carbon filter is compact, easy installation.
4.Sand and activated carbon filters equipped with manual and auto control based on user needed.
5. Haiyuan quartz sand and activated carbon produce as per ISO and SGS standard and main parts accessories have
obtained CE certification.
6. All the plants will be commissioning well. Make sure don't have any
problem when arrived site.
7.What we provide not only the good products, but also our whole
team, the quality, experience, and service.
A. Design basic:
Raw water is underground/Borehole water,river water or tap water.
the basic requirements as follows:
a. Inflow Total dissolved solids content:≤1000PPM
c. water temperature: 5-45 degree. d. PH range: 6.5 - 8.5 e. Hardness: 600mg / L (caco3) f. Turbidity: ≤ 10NTU g Pollution Index: SDI <5 h. Iron: <0.3mg / L( If iron >0.3 and manganese >0.1, Must be Aeration+ Iron
remove filter)
j. Free chlorine: <1mg / L
B. Client should supply basic condition:
Plant size: Customized, required floor smooth, floor ground should have drain trench.
Water quality basic steady,pressure steady.
User power supply: Customized
C.Control method:

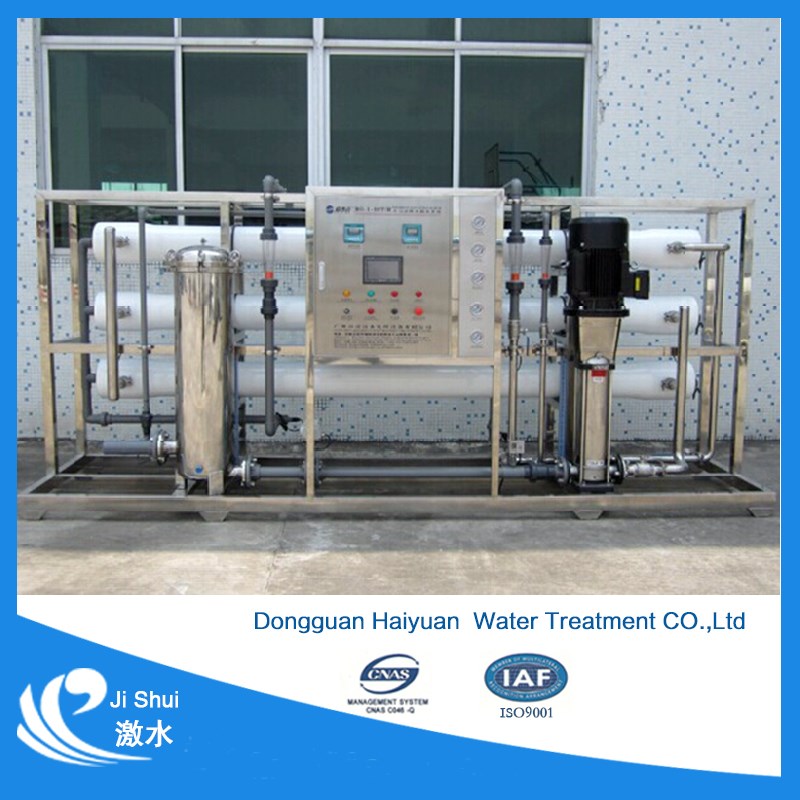

Reverse osmosis water purified water system use full/semi
automatically control model, both model can be exchanged
accordingly. Sand Carbon filter & water softener with auto and
manual back flush.The RO system automatic flushing at each startup
and shutdown. High water level auto stop, low water level auto
start.Pump protected without water.
Protected when no power, poor power, larger electrical current,
leakage, short circuit
Two pumps, one for backup(when another fault)
D.Process flow:
Source water→Pumping to tank→Feed water pump → mutimedia filter(sands filter) →Carbon filter
→Micro filter→RO system→ permeat tank→UV sterilizer(Remark: green colour client should be preare)
Productd informationof sand carbon filter :
Product featureof quartz sand and activated carbon :
1. Compact structure: The device integrates filtration and
continuous backwashing in one device, which simplifies the water
treatment process, has a small floor space, simple structure and
convenient installation.
2. Easy operation: It can realize series or parallel connection,
manual or automatic operation, which reduces the energy consumption
and manual management cost of the raw water treatment process and
reduces the operation difficulty.
3. Continuous self-cleaning filtration:Filter media automatic
circulation, continuous cleaning.
4. Reduce the suspended matter content of raw water: With the
micro-flocculation device, various industrial waters, urban
domestic sewage and industrial water for influent high-suspension
materials are used as recycled water, and the removal rate is
higher than 90%, achieving perfect filtration effect.
5. Selected material: Long service life
Hot selling products
Industrial reverse osmosis RO Reverse osmosis water HY brackish
water reverse osmosis
water systempurification machineosmosissystems
Good price ro water 1000LPH Drinking Water Purification Good price
household water
treatment plant Plant/ Machine desalination plant for drinking
Warmly reminder
Warmly reminder:
Dear client. Many thanks for you take attention to our products. At
here wish our products and our sincerity service can solve all your
questions.
1. Where is the feed water from?Make water analysis report?(eg.
borehole water, river water. The total dissolved solid, Fe, Mg,
Hardness etc. whether over proof
2. After treatment, How much liter flow rate per hour you required?
Because our plants are designed according to per hours output.
3. After treated, what is the water qualityrequiredor standard?Meeting WHO drinking standard or industry filed.
If you don’t have water analysis report. Please tell us the water
situation/condition. For example the color, odor, turbidity.
Underground or river water or other feed water?
So we can do the right solution and price for you.
Three model for your reference

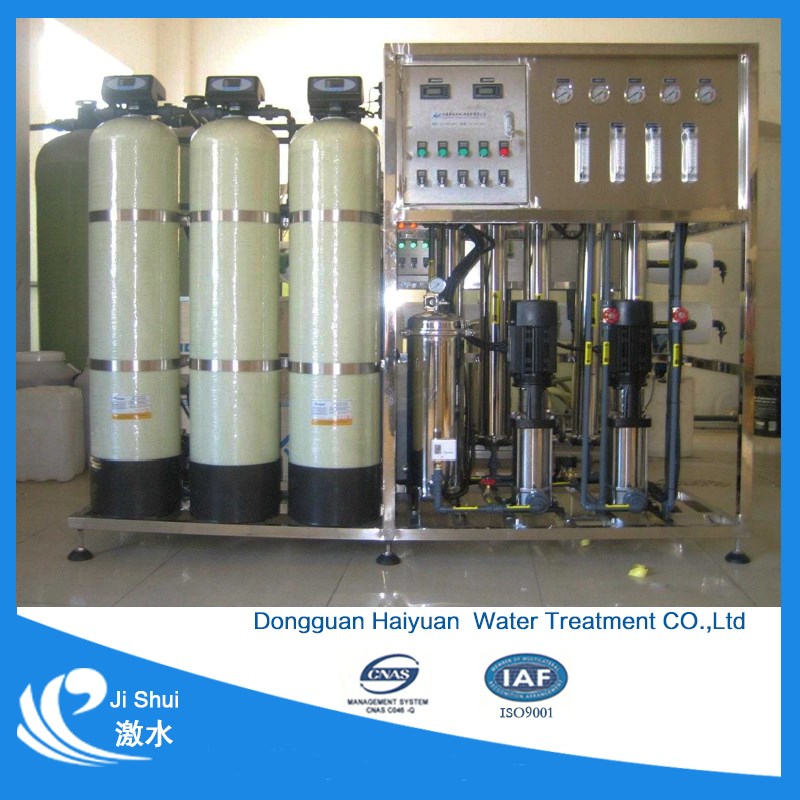

1st Model: Pretreatment(Sand, Carbon and softener vessel) adopts glass fiber
is standards model.
2nd Model: Pretreatment filter adopt stainless steel is superior model.
3rd Model: .All material adopt stainless steel with PLC and touch screen(HMI)
is luxurious one.
For the activated carbon filter sand filter ,final output flow rate
and other requirements can customized as per your required.
domestic water filter price ,model and capacity has difference price. Please let us know which
model do you requirement.
Our Services
24h after-sales service online
12 months warranty and free maintenace cost
whole life free technical support
Track the order until you get the goods
We can provide oversea service (Go to on site for installation and commission)
Company Information
We have 2 factories +300 workers+ Qualified engineer+ Overseas
service
