10 Way Blade Fuse Block Bolt Terminal With LED Warning Light 10-Way
Fuse Holder With Sticker Cover
Product Description
Red LED indicates when fuse is broken.
| Item | LED Indicator blade fuse block with Stickers |
| Qty of fuse slots | 10 way |
| Max Rating | Standard blade fuse (ATO / ATC) |
| Input terminal rating | M5 threaded studs |
| Output terminal | M4 screw |
| House material | PBT |
| Terminal material | nickel plated copper |
| Dimension | 100x85mm |
| Out put rating | 30A per circuit |
| Input rating | 100A |
| Voltage | 32V dc |
| Accessory | Self-tapping screws and sticker labels |
- Input wire size:#4-6 AWG.
- Output wire size: #12-16 AWG.
- Torque rating: 20in-lb (2.25 Nm) max.
- Mounting torque rating: 8in-lb (0.9Nm) max.
- Red LED indicates when fuse is broken.
- ldentify circuits by foot print marking.
- Clear insulating cover design for water and dust proof.
- Easy to open by pressing the latch.
√ 【LED Warning Indicator】:The indicator light flashes red when the
fuse is blown, allowing for fast and hassle free identification of
a fault.
√【 10-Position Fuse Holder Bolt Terminal】: The size is
100*85*35mm(3.93*3.35*1.38 inches). The material uses PC cover, PBT
base, tinned copper wiring pads, and stainless steel wiring screws.
√ 【Electric device Labels】: You can quickly identify which
appliance is going wrong. Such as BLOWER, AERATOR, ACCESSORY, VHF,
RADIO, etc.
√ 【M5 Threaded Studs】:Input Terminal Rating - M5 Threaded
Studs(100A 32V DC Max). Input Wire Size - #4-6 AWG. Output Terminal
Rating - 30A Max Per Circuit. Output Wire Size - #12-16 AWG. Red
LED indicates when fuse is broken.
√ 【Simple Installation】:The first step is to fix the fuse box with
4 stainless steel screws. In the second step, connect the terminal
terminal to the positive pole of the power supply. In the third
step, connect 10 screws to the corresponding components.
Available in 6 ways, 8 ways, 10 ways, 12 ways
Structure of 10-way Blade Fuse Holder with Sticker Cover
Dimension
How it works?

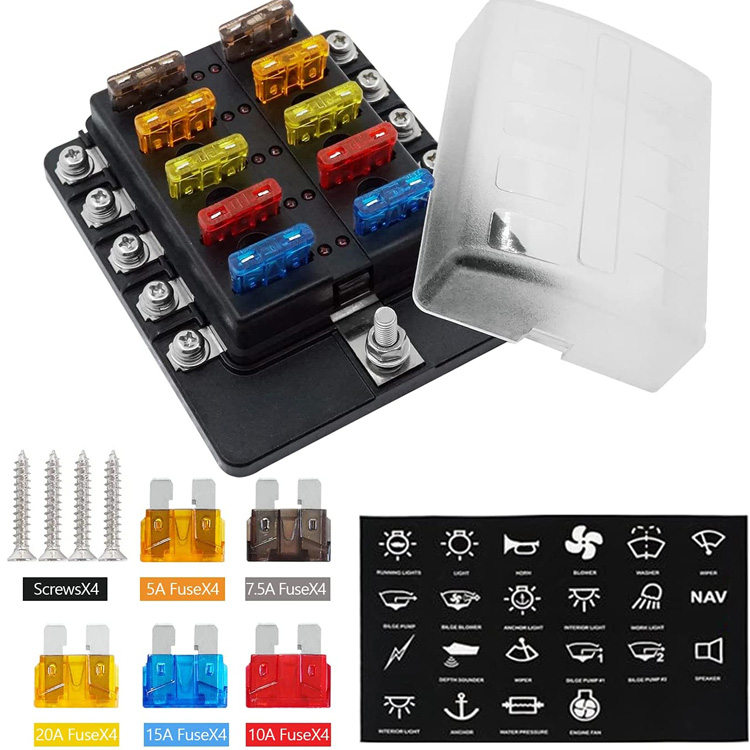

Stickers and self-tapping screws
Applications
This car fuse box can be used widely for autos, cars, buses,
subways, airplanes, boats, ships, yacht, campers, work van, RZR,
enclosed trailer etc
Standard Package:
depends on the cable spec
Shipping Term:
EXW, DDU, DDP, C&F, FOB
Shipping Methods:
International Express, By Air, By Sea
Selection of the Fuse and Holder Solution
The first step is to answer the following questions:
- Will the fuse need to accessible for replacement?
- How often will the fuse need to be replaced?
- Should the end customer of the appliance have access to change the
fuse?
- Should the fuse only be accessible from outside the appliance?
- How much is available to spend on safety and reliability?
Notice
1. Replace the fuse according to the rated current value indicated
in the fuse box, and do not use a fuse with a higher rated current.
2. If the new fuse is blown immediately, this indicates that the
circuit system may be faulty and should be repaired as soon as
possible.
