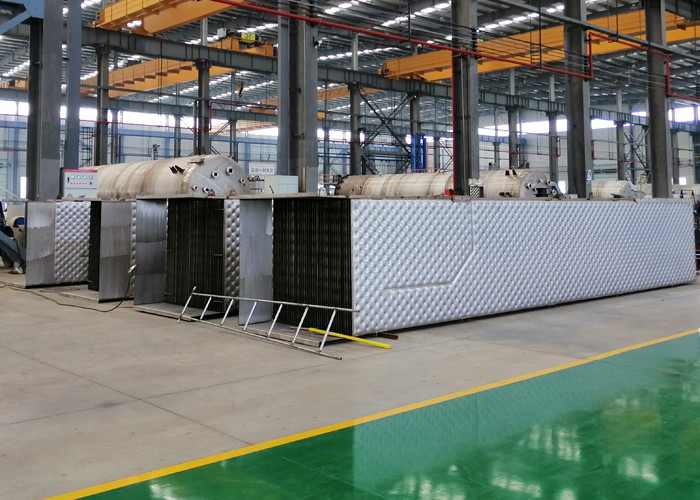

Double Embossed Pillow Plate Heat Exchanger for Paper Pulp Industry

Double Embossed Pillow Plate Heat Exchanger for Paper Pulp Industry

Pillow plates

1. Pillow plate with a pillow at one side is made when a thin plate is laser welded on a thick plate and during the inflation of the pillow the thick plate does not deform. So a pillow plate where the -2- thin plate has been deformed with a pillow and the thick plate is still flat or in the rolled radius is called a single embossed pillow plate

2. Pillow Plate with a double bulge on each side is created when two equally thick plates to be welded together, during the inflation of the pillow plate, both plates forming the same. A pillow plate with both sides equally inflated pillows is called “double embossed pillow plate”.

Specification

Application
1.Wide-channel plate-shell heat exchanger:
Combining the advantages of shell-and-tube heat exchanger and plate heat exchanger, it is easy for scaling materials to move
between boards and clean materials to move inside boards.
Usually floating head structure design is adopted. When cleaning, the whole group of plate bundles can be pulled out.

2.Wide-channel plate-shell heat exchanger:
Specially designed for working conditions with larger particles or higher viscosity, the medium can fully flow in the runner
without blockage under the above working conditions. Generally, the solid medium goes between the plates without contacts, and the
clean medium goes through the plate cavity with contacts:
Flow resistance is small and scaling is not easy.
High heat transfer coefficient.
Easy to clean.

3.Surface Condenser:
Condensation of steam
Condenser of evaporation station
Condenser/Air Cooling Island of Power Station
Condensation of Organic Steam
Condenser for Distillation/Distillation System
Condenser/Evaporative Condenser for Refrigeration System

Feature

1. Unique three-dimensional surface runner
2. High heat transfer coefficient
3. It is not easy to scale
4. Not easily blocked
5. Compact structure
6. High temperature and high pressure resistance
7. Fully welded structure
8. Floating Head Design
9. Easy to clean
10. Lower flow resistance
