    Analog 12V Long Range PIR Sensor Module 30m Microwave Motion Sensor Module

    Ask Lasest Price
    Brand Name : AMPFORT
    Model Number : M10
    Certification : CE-RTTE
    Price : Negotiable
    Payment Terms : T/T,Paypal
    Supply Ability : 8,000,000 Pieces Per Month
    Delivery Time : 7-10 Workdays
    • Product Details
    • Company Profile

    Analog 12V Long Range PIR Sensor Module 30m Microwave Motion Sensor Module


    Doppler Effect Microwave Sensor Radar Module M10 For Moving Human Object Obstacle


    Description Of The Doppler Effect Microwave Sensor Radar Module M10


    This product is automatic induction control of doppler radar products.High sensitivity, long distance detect, high reliability, big detect angle. Also the power supply voltage is range.It is widely used in all kinds of human body induction lighting, anti-theft alarm situations.
    HW - M10 USES planar antenna is the transmission and reception, as the active sensor. The sensor transmit high frequency electromagnetic wave (10.525 GHz) and receive echo. HW - M10 detecting changes in the echo inside even small movement. Then microprocessor triggers, executes instruction . Signal can be detected through glass, doors or thin wall.


    Features Of The Doppler Effect Microwave Sensor Radar Module M10


    1.Strong anti-interference ability, stable performance, not influenced by environmental temperature.
    2 .Small size, simple installation. Quick response and high sensitivity.
    3. Induction distance can also customize, the detection angle is 180 x 360
    4 .Radar wave can penetrate non-metallic objects, such as wood, glass, plastic, fabric, etc


    Specification Of The Doppler Effect Microwave Sensor Radar Module M10


    NameMicrowave Sensor Module
    P/NHW-M10
    Supply voltageDC 12V (6-22V)
    Current<1mA
    Level of outputHigh-5/low-0V
    Trigger wayRepeat(default)
    Delay timedefault 3 s (3-200 s adjustable)
    Blocking timeThe default 0 s (adjustable)
    Size30*20*6mm
    Distance1-30m
    Angle180*360
    Working temp-20 - +80 C
    Transmission power<2mW
    Load power1.By adding relay as a trigger signal. 2.Maximum power 1000w
    Install wayHanging install, such as install suction a top;T8 is built
    Universal modelHW8002,HW8003,HW1004,HW1005,HW8090,HW-IR02,HW-IR05,HW-M10,HW-M10-2,HW-M10-1,HW-M09,HW-M09S,HW-M09-2,HW-MS01,HW-MS03,HW-MS07,HW-N9MW,HW-MD6,HW-M21,HW-HB100,HW-XC509,HW-XC508,HW-MD6

    Warm note:
    1, Strictly prohibited to operate in charge to avoid any mistake, such as burn out circuit or get an
    electric shock.

    2, Avoid installed in the hot sun rain, to prevent damage or affect the lifetime. 3: Better install far away from the place of the magnetic field or the conductor to avoid wrong actions


    As following is the adjustment version of time and distance


    Resistor(ohm)Distance(m)
    3M30
    2M20
    1M15
    820K10
    750k8

    Resistor(ohm)Time(s)
    2.2K1 sec
    10K5 sec
    100K30 sec
    330K60 sec

    The difference between infrared and microwave sensor


    ItemPIR sensorMicrowave sensorNote
    Sensor objectMoving human or warm-blooded animalsMoving object
    Installation methodThe lens needs to be exposed and cannot be blocked by any object.Installed inside the product, it can penetrate the housing. Except metal material.Need to be installed on a stationary object.
    Ambient temperatureWhen the ambient temperature and the product temperature reach above 36°C, the sensing distance will decrease by about 30%no effectOperating temperature -20-+70°C
    Induction directionTransverse sensor sensitivity is good. Moves directly toward or away from the sensor, the sensitivity is slightly worseno effectBased on sensing surface
    Strain factor

    1 hot and cold air convection, wind.

    2 power fluctuations

    3 Electromagnetic, high frequency signals

    1 multiple microwave modules in the induction area

    2 power fluctuations 3 electromagnetic high frequency signal

    Induction angleDetermined by the lens, default 120°Small space 360°, Large space: 135°
    Working powerLess than 50UA, available battery.3MA, need to use power.
    Installation Environment1.Indoor: Avoid installing near window openings, air conditioning vents, vents, and heat sources. 2 Outdoor: Try to prevent rain and direct sunlight.

    1 Indoor: Avoid installation near high frequency, electromagnetic and vibration objects 2 Outdoor: In an open area, the distance will be attenuated.

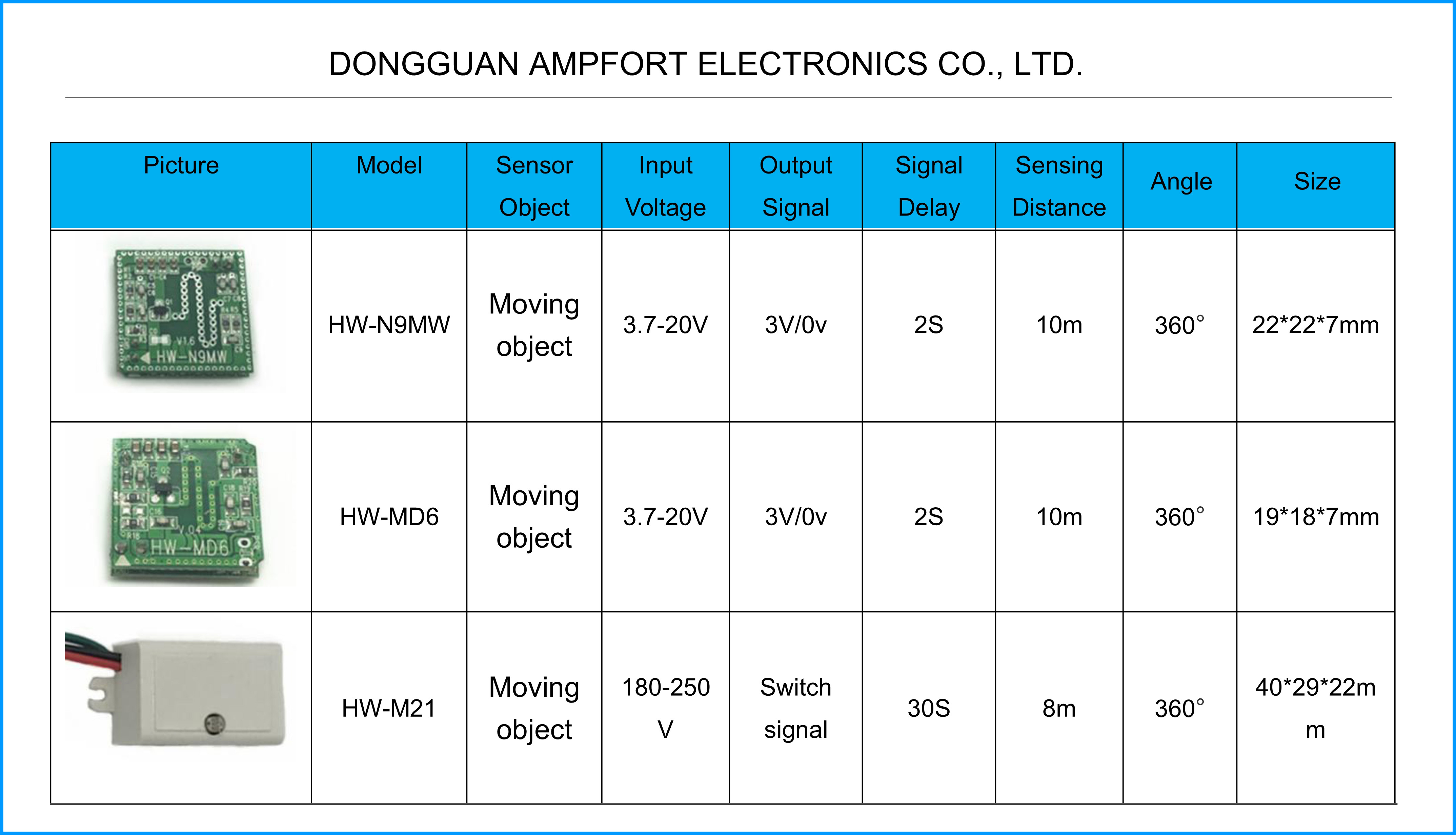

    Sensor Module Catalogue Of The Doppler Effect Microwave Sensor Radar Module M10
