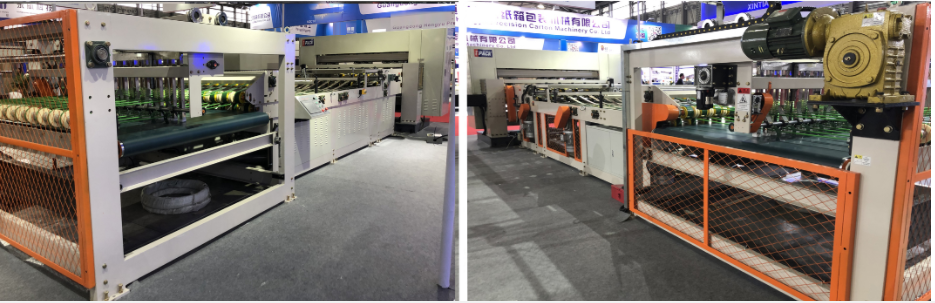

High Speed Slitter Score Cut Off Automatic Stacking Machine
Automatic Printer Slot Die Cut Corrugated Carton Stacking Machine
Machine configuration: helical cutting knife,5 Group of φ200 thin
slitting blade
Storing 200 sets of orders, man-machine interface, the screen
displays information, reviewing,modifying,adding and canceling
orders at any time
Main Specification
| Working Width | 1600mm |
| Design Speed | 180m/min |
| Working Speed | 150m/min |
| Cutting Length | 300mm-9999mm |
| Cutting accuracy (Uniform Speed) | ±1mm |
| Upper and Lower knife Shaft Dia | φ200mm |
| Main Driving Motor(Servo) | 12.5KW |
| Holding Paper Motor: (Frequency Control) | 3KW |
| Paper Feeding Motor(Frequency Control) | 1.5KW |
| Horizontal output (Frequency Control) | 0.75KW |
Machine Features
1) The paper can then manually adjust Stacking Machine
2) splicing speed and feed speed is synchronization, then the paper
speed can be adjusted independently
3) The stack height of 1700 mm
4) bed units lifting strength chain drive.
5) The splicing plate Stacking Machine with anti-fall device to
ensure operator safety.
Company Introduce
Hao han company is professional manufacture in Corrugated Carton
Machine, like Corruated Cardboard Production Line, Flexo Printer
and other Machinery, supplying for world markStacking Machinehave
got ISO 9001:2000 Certificate. The main products of corrugated
board production line include single layer, 3-layer, 5-layer and
7-layer Corrugated paperboard Production Line. Our company has been
running since 1984 and is located in Cangzhou City, Hebei Province.
With strong technology team, the machine is better and better, the
workers is skilled more and more. Products has been exported to
Russia, the Middle East, Southeast Asia and other countries and
regions. Wish well cooperate with business friends from all over
the world.
