IG butyl extruder machine Butyl coating machine for double glass
processing
Butyl Extruder Machine LJTB01
Application:
The type of LJTB01 butyl extruder machine is used for spreading
aluminum spacer frames evenly with hot melt butyl. This equipment
uses large electrical control panel which makes the operation more
easier than before. The conveyor of aluminum is controlled by
frequency converter. The speed can be adjusted from 0m/min to
47m/min, it is the fastest speed in China until now. The butyl
extruder is very popular with energy-saving. Its squeezing system
adopts pneumatic and hydraulic supercharging system, which makes
the squeezing pressure more stable. The dispensing cylinder adopts
vertical rotary support system, making the refill of butyl more
easier. The height of squeezing head can be adjusted automatically
according to different kinds of aluminum spacers. Finally, the
butyl extruder has reached the worldwide technology with the
characteristic of complete functions and stable working mode.
Equipment details:
Main Features:
• PLC control system, touch screen interface.
• Automatically identify the width of aluminum bar, the glue nuzzle
can be automatic adjust.
• The critical part of the hydraulic system using German imports of
components to ensure that the plastic evenly full .
• Fast preheat, improve work efficiency.
• With preheating function.
• With exhaust inflatable function, improve the quality of sealing
and save time for plastic.
• Quickly coating speed,can up to 47m/min.
• Saving the amount of glue.

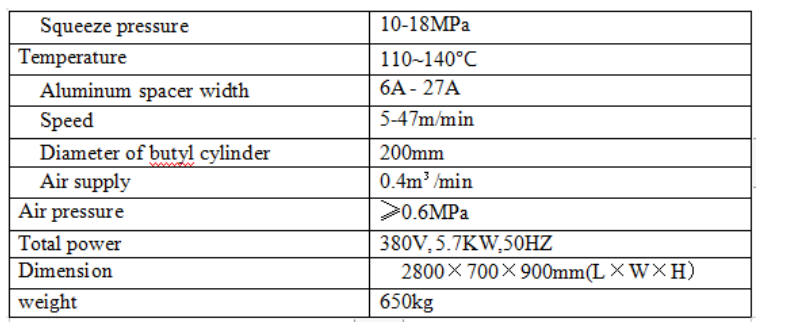

Technical data :
Electrical parameters :
Butyl Extruder Machine LJTB03
Main Features:
• PLC control system, touch screen interface
• Frequency control system
• Arc frame coating structure
• Imported pneumatic and hydraulic supercharging system
• Automatic centering and clamping structure
• Loading capacity up to 14KG, saving time for feeding glue
• Adopt five steps to control convey
• Preheating function,glue cylinder limit function,alarm system
• Covey and gluing mechanism adopts the latest design
Technical data :
Squeeze pressure | 10-14MPa |
Temperature | 110-140ºC |
Aluminum spacer width | 6-24mm |
Speed | 0-27m/min |
Diameter of butyl cylinder | 190mm |
Air supply | Flow:0.4m/min |
Air pressure | ≥ 0.8MPa |
Total power | 220V 50HZ 2.5KW |
Dimension | 3000*620*1102mm |
Automatic new butyl extruder machine
Fully automatic butyl glue coating machine lays a fully automatic
equipment foundation for future glass deep processing.
Technical data :
gluing speed | 2-50m/min |
aluminum spacers width | 6-24mm |
air pressure | ≥0.6MPa |
power | 380V 50Hz 7KW |
dimension | 10000*1310*3150mm |
Equipment details:
