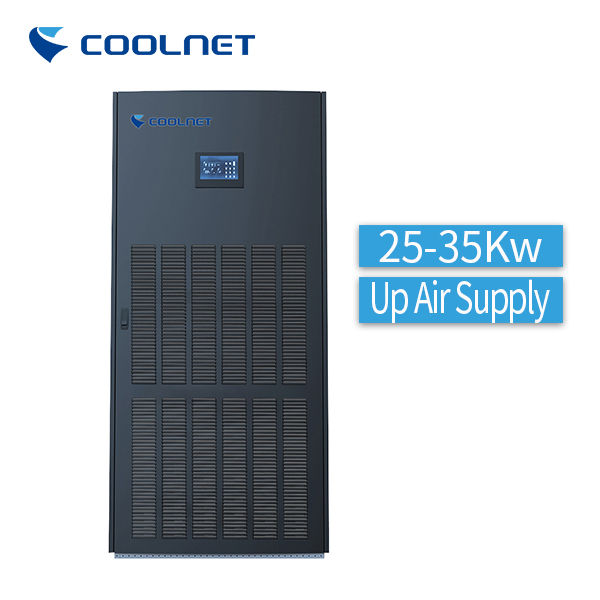

    Air Cooled Type 15 Ton PACU Air Conditioning Unit For Large IT Data Center

    Ask Lasest Price
    Brand Name : Coolnet
    Model Number : CYA,M08,CR012
    Certification : CE/ISO9001
    Payment Terms : T/T
    Delivery Time : 4W
    • Product Details
    • Company Profile

    Air Cooled Type 15 Ton PACU Air Conditioning Unit For Large IT Data Center

    Air Cooled Type 15 Ton PACU Air Conditioning Unit For Large IT Data Center


    Product Introduction

    Maintaining a constant temperature, purity and humidity of air is essential for ensuring a stable environment for critical electronic and computer equipment,this is why there is the need for close control air conditioning. Unlike comfort air conditioning, close control systems must operate constantly 24/7 requiring high reliability and minimal power consumption. Coolnet precision air conditioning offers quiet, compact and energy efficient equipment that can be configured to needed requirements.


    Benefits


    Technical Features


    1. High quality control component.

    2. Efficient evaporator made from advanced technology and with larger heat exchange area.

    3. Danfoss brand quality expansion valve.

    4. Internationally advanced electrode steam humidification system.

    5. Unique frame design guarantees the cabinet safety under any transport condition and operating environment.

    6. G4 level air filter to guarantee the server room air purity.

    7. Copeland hermetic scroll compressor.

    8. Standard configuration with speed adjustable centrifugal fan. EC fan is optional.

    9. Highly efficient PTC electrical heater.

    10. Anti-corrosion alloy condenser.


    Applications

      • Computer room and data center
      • Switch room and mobile center station in telecommunication
      • High-tech environment and lab
      • Industrial automation control room and precision manufacturing workshop
      • Standard test room and calibration center
      • UPS and battery room
      • Test room in hospital
      • Biochemical culture chamber

      Main Components


      Expansion Valve

      We use famous brands such as Emerson and Danfoss which has excellent product performance, high sensitivity and easy replacement.


      Humidifier

      Electrode humidifier, using tap water, with automatic cleaning function, can quickly generate pure steam, maintenance does not stop.


      Scroll Compressor

      International famous brand compressor, COP value greater than 4.0, equipped with safety devices to ensure high efficiency, low noise and long life of the unit.


      Indoor Blower Fan

      Direct-drive centrifugal fan with backward curved blades has an average life span of 10 years and can achieve continuous operation for 365 days * 24 hours;

      Energy-saving EC fan, DC drive, is better than traditional fans in the field of energy saving.


      Technical Parameters

      Model: CYAS20D/US23D/US26D/US28D/US31D/US35D/US40D/US45D/U
      Power Supply380V 3Ph-50HZ
      Air DischargeUpflow/Downflow
      Cooling Capacity :24℃/50%RH
      Total CapacityKW20.523.526.828.331.535.540.245.6
      SensibleKW18.921.624.226.128.933.237.642.2
      AEERw/w3.73.63.63.73.73.73.73.6
      Air Flowm3/h6830765075808500920098001060012000
      Compressor Hermetic scroll
      RefrigerantR407C
      Compressor quantityPC11111111
      Fan Section Centrifugal fan (Optional EC)
      Fan quantityPC11111122
      Rated currentA2.52.52.83.23.54.14.44.9
      Rated powerW10501100120013001320200021502400
      Reheat CapacityKW66669999
      Reheat MaterialPTC
      Humidifier Section Electrode type
      CapacityKg/h555555513
      Rated CurrentA666666615
      Condensor Model58588080100120150150
