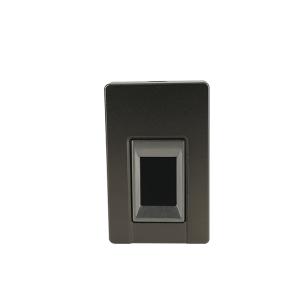

HFSecurity FAP20 OS1000 Waterproof A FBI PIV Certified Optical USB
Fingerprint Scanner
FAP20 device is a FBI PIV certified single optical Fingerprint
Scanner.
It's a compact & portable fingerprint collection device for easy
integration with new or existing applications.
Powered by USB 2.0/3.0 and supports Windows, Linux and Android
operating systems.
Ideal for biometric authentication and personal identity
verification programs.
| Specification | OS1000 |
| Sensor type | FBI(FAP20) |
| Image resolution | 500dpi |
| CPU | 200MHz, ARM9 |
| Flash memory | 2MB |
| Image size | 300 x 400 pixel |
| Certification | CE, FBI, FCC |
| Active platen area | 15.24mm x 20.32mm |
| FAP (fingerprint acquisition profile) | FAP20 |
Maximum Acquisition time (Placement to Template) | <3s |
| Grey scale | 8 bit, 256 levels |
| Template size | 1024 bytes default ISO/ANSI standard |
| Live finger detection | Yes |
| Platen Ingress Protection | IP54 |
| ESD immunity | ±8kV contact discharge, ±15kV air discharge |
| Supply voltage | DC 5V±5% |
| Communication interface | USB2.0 |
| Operating Temperature | -10°C to +45°C |
| Storage Temperature | -20°C to +50°C |
| Operating humidity | 20%RH～90%RH |
| Weight | 150G |
| Operating system environment | Windows,Android, Linux |
| Product size | 74.79* 18.55 * 19.2(mm)(L*W*H) |
- Lightweight and durable design for easy integration
- High-quality fingerprint image meet FBI-PIV & FAP20 standards
- ANSI 378,ISO 19794 template options
- IP54 rated dust and water protection design
- Standard USB interface, plug&play device
HFSecurity FAP20 Biometric Fingerprint Scanner is FAP20 Optical
fingerprint scanner, support FC, CE, IP54 Cerficated.
HFSecurity FAP20 Biometric Fingerprint scanner support fingerprint
recognition, hf cloud database, usb2.0 interface can
suitable for windows, android system, linux system are also
support.
Biometric Fingerprint scanner use ARM9 CPU, falsh memory are 2G,
can save many fingerprint template and fingerprint image.
FAP20 FIngerprint optical sensor , recognition area is
15.24*20.32mm, fingerprint image size is 300*400 pixel,
recognition time <1S.
FAP20 Fingerprint scanner is high spedd recognition matchin device,
applicability for a variert of fingerprint types
wet fingerprint, dry fingerprint, shallow fingerprint are also
support.
Our HF-OS1000 Fingerprint can support waterproof, other fingerprint
scanner did not waterproof.
if you want to know more waterproof video, pls send me your email.
HF0S1000 interface very sample for more biometric tablets, like
HFSecurity FP Series, FP05,FP07,FP08
Also yourself mobile device are support.
OS1000 Biometric Fingerprint is very small, portable fingerprint
scanner, the size like a lipstick, you can carry for everywhere.
OS1000 Fingerprint Scanner software can support windows, android,
linux.
ANSI, ISO Template standard are support, All in one device
