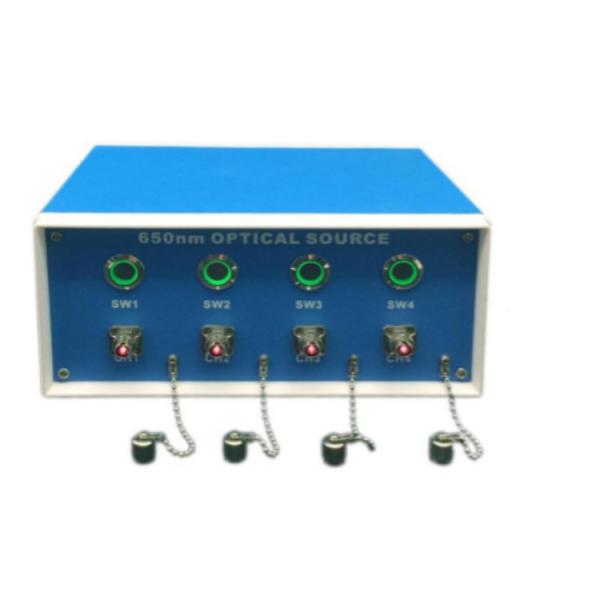

Bench top VFL 650nm optical Light source Multichannel 4 port Desktop Fiber Optic Visual Fault locator Four
channels red light source
Model:OFO-2004
Place of Origin:Guangdong,China
Description
Desktop four-channel red light source uses 650nm laser ,As a light
emitting device, the output power is optional; at the same time
support four Optical path failure detection. The product is easy to
operate and can be used to Optical cable, joint connector for
visual testing, single-mode, multi-mode optical Fiber can be used.
This series of products can be used for active devices and Passive
device testing, simultaneous testing of single and multiple optical
paths.
Quick Detail
● Constant power output, stable performance and long service life.
● High output power.
● Realize single-channel or multi-channel simultaneous detection;
support up to four-channel simultaneous detection.
● Easy to identify fiber breakpoints and bends.
● Realize the detection of mechanical connection points.
Specifications
| Instrument Model | OFO-2004 | Working Voltage | DC: 7-15V |
| Working wavelength | 650±10nm | Working temperature | -10 ° ～ + 45 ° |
| Number of channels | 4 channels | Storage temperature | -40 ° ～ 70 ° |
| Maximum output optical power | 10 mw | Connector type | FC |
| Power consumption | 5 W | size | 200 * 170 * 90(mm) |
Notes
① Red light source shell: Customized shell, strong applicability
and easy to use.
② light source switch: each light source switch corresponds to the
light source output port below.
③ Light source output port: Red light source output port.
④ Metal dust cap: The metal dust cap has a long service life.
⑤ On / off key: power on / off key.
⑥ Power socket: Standard 12V power socket.
FAQ
1. Are you a factory or a trader?
......we are factory.
2. What is your MOQ?
......MOQ 1 piece.
3. Do you provide sample services?
......Yes, we will provide samples(Samples at prices announced by
chuanglixun).
4. How will you ship to me?
....... We will spend 4 to 6 days via DHL or FedEx. Properly
extended based on order quantity
5. How do we pay
......Book in advance or multiple payment methods such as T / T and
T / L.
6. How long is your product warranty?
......The warranty period is 1 year (the warranty period will
provide free repairs, except for consumables). After the warranty
period, accessories will continue to be provided and will be
charged at cost.
7. Do you provide customized services?
......Yes, we provide customized services, According to customer
requirements and description
About shipping:
We usually use DHL, FEDEX, UPS, EMS, TNT or Sea, these are the
world's largest shipping companies, you can provide us with your
courier account, we will help you choose the cheapest and the
cheapest according to the quantity.
