Tank top maintenance lifting machinery equipment LNG curved rail electric hoist LNG monorail winch curved rail crane

Canhead maintenance lifting machinery equipment LNG winding rail electric hoist LNG single rail winch winding rail crane

一,Lift weight and working rangeLNG

The equipment to be repaired on the tank roof is mainly the low-pressure conveying pump and the top valve in the tank. At present, the minimum mass of low-pressure conveying pumps (including roof plate) with different flow rate and head commonly used in LNG storage tanks at home and abroad is about 2t, the maximum mass is about 8t, and the mass of the commonly used tank top safety valve is 0.5~1.5t.

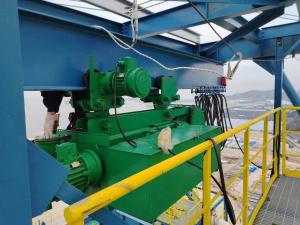

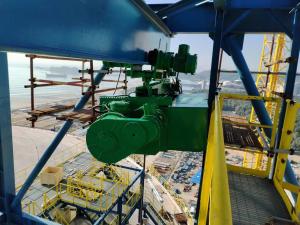

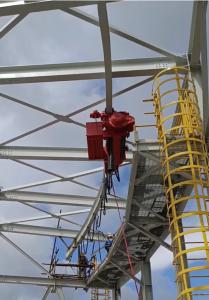

1. Explosion-proof curved rail electric hoist

At present, the lifting weight of the commonly used explosion-proof curved rail electric hoist used in China is the least 0.5t, and the maximum is generally 16t. Therefore, in terms of lifting capacity, curved rail electric hoist can meet the lifting requirements of commonly used low-voltage pump. In terms of working scope, the area covered by the electric gourd of the winding rail is a curve band parallel to the curved rail, which is affected by the length of the gourd drum. In order to make the car drive the gourd to walk smoothly on the curved rail, the curvature radius of the rail should not be too small. At present, the minimum radius of curvature of the winding rail of the LNG storage tank roof at home and abroad is 3~5m. Therefore, the working range of the winding rail electric hoist is relatively narrow, which is generally suitable for the LNG storage tank with large spacing between the tank top equipment and the basic regular ring arrangement.

2. Explosion-proof cantilever crane

一,Explosion-proof cantilever crane can rotate around the column in the horizontal surface, and the electric car can drive the gourd to walk on the boom, so its working area is the circular or fan surface that can be covered by the rotation of the boom, and the working range is very large. However, due to the influence of deflection, overturning moment, and foundation strength, the maximum lifting weight of the cantilever crane used in the top of LNG storage tanks at home and abroad is not more than 5t, and the maximum arm length is not more than 15m. Therefore, the cantilever crane is generally suitable for small LNG storage tanks with the quality of the low pressure pump not more than 4t, the tank top equipment spacing is small, and a relatively dense layout

二,Safety and stability.

Because the LNG storage tank is installed on the roof of the tank, its load all acts on the tank roof and the tank wall. When the strength and bearing capacity of the tank are fixed, the greater the base load of the crane, the greater the load of the tank, and the lower the safety and stability of the tank system.

Henan Yellow River explosion proof crane Co., Ltd. was founded in 1992, mainly producing "Langtai" brand series of lifting products. The registered capital of the company is 200 million yuan only. There are more than 500 employees, 110 people with college education or above, and more than 40 engineers with middle or senior professional titles. The new factory has a production area of 180000 square meters, a construction area of 110000 square meters, and an annual output value of more than 200 million yuan. It is the largest manufacturer of explosion-proof cranes, explosion-proof electric hoists, explosion-proof motors and explosion-proof electrical appliances in the whole Central Plains Enterprises with large production and marketing volume.
The "Langtai" brand explosion-proof lifting equipment, explosion-proof motor and electrical apparatus designed and manufactured by the company have obtained the "industrial production license" issued by the state, the "explosion-proof certificate" issued by the national explosion-proof electrical product quality supervision and inspection center, and the enterprise foreign trade qualification certificate of the people's Republic of China. The company's "Langtai" brand wire rope electric hoist has obtained more than 20 new product certificates and won the title of high-tech enterprise. The company has passed ISO9001 quality management system standard certification, OHSAS18001 occupational safety guard management system standard certification, ISO14001 international environmental management system standard certification. Hu Linzhong, chairman of the board of directors, is a member of SAC / TC9 and a member of SAC / TC9 / SC4.
20 years of quality assurance for the company to win the market praise. The company attaches great importance to the cultivation and introduction of talents, pays attention to reform and innovation, strengthens the quality awareness, and improves the after-sales service system. The company's explosion-proof and common single and double beam cranes, explosion-proof and common electric hoists, dust explosion-proof crane series, mine explosion-proof crane series and metallurgical crane series sell well in more than 30 provinces, cities and autonomous regions in China, and are exported to Malaysia, India, Indonesia, Myanmar, South Korea, Russia and other countries. The company has newly developed European crane, explosion-proof mining chain block, explosion-proof chain block, explosion-proof pneumatic winch, explosion-proof remote control, explosion-proof forklift, stereo garage, oil drilling rig and other products, which have been put into the market and achieved good results in diversified development.
Sincere cooperation, mutual benefit and win-win. Hu Linzhong, chairman of the board of directors, pays homage to the vast number of users and welcomes your letter to the company for guidance and business negotiation“ Langtai brand explosion proof products make your work safer.
