    CS SS ANSI B16.9 ASTM A234 WPB CON ECC Reducer 1/2 Inch To 80 Inch

    CARBON STEEL ANSI B16.9 ASTM A234 WPB CON REDUCERE AND ECC REDUCER

    What is ASME B16.9 Reducer?

    The Specification for ASME B16.9 is a standard that covers Factory Made Wrought Steel Buttwelding Fittings like the Reducer Fitting. This Standard covers parameters such as the overall dimensions, ratings, tolerances, testing, and markings for both wrought carbon as well as alloy steel factory-made buttwelding fittings. The size range of the Reducer En 10253 2 covered in this specification ranges between NPS ½ inch up to 48 inches. The size range for both seamless and welded Ansi B16.9 Reducer is different. To specify, the size range for seamless Asme B16.9 Reducer Dimensions are up to 24 inches, whereas welded Asme B16 9 Reducer Dimensions are available in the size range between 8 inches up to 36 inches.

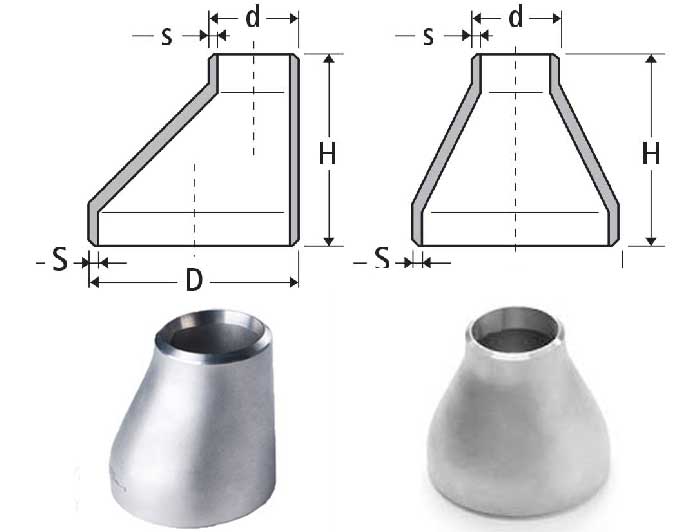

    ASME B16.9 Reducer Dimensions

    Buttweld Pipe Reducers Dimensions

    Code RCD REISOØ BIGØ SMALLHEIGHT H mmTHEORETICAL WEIGHT KG
    DND mmThickness S mmDNd mmThickness s mm
    27 213/426.92.31/221.32.0380.08
    33 21133.72.61/221.32.0500.09
    33 273/426.92.30.09
    42 211″1/442.42.61/221.32.0500.12
    42 273/426.92.30.13
    42 33133.72.60.14
    *48 211″1/248.32.61/221.32.0640.18
    48 273/426.92.30.19
    48 33133.72.60.20
    48 421″1/442.42.60.20
    60 27260.32.93/426.92.3760.30
    60 33133.72.60.31
    60 421″1/442.42.60.32
    60 481″1/248.32.60.33
    76 332″1/276.12.9133.72.6900.40
    76 421″1/442.42.60.47
    76 481″1/248.32.60.48
    76 60260.32.60.49
    89 42388.93.21″1/442.42.6900.55
    89 481″1/248.32.60.61
    89 60260.32.90.62
    89 762″1/276.12.90.63
    114 484114.33.61″1/248.32.61000.85
    114 60260.32.90.98
    114 762″1/276.12.91.00
    114 89388.93.21.02
    139 605139.74.0260.32.91271.60
    139 762″1/276.12.91.70
    139 89388.93.21.74
    139 1144114.33.61.76
    *168 766168.34.52″1/276.12.91402.60
    168 89388.93.22.70
    168 1144114.33.62.82
    168 1395139.74.02.94
    219 1148219.16.34114.33.61525.03
    219 1395139.74.05.12
    219 1686168.34.55.18
    *273 11410273.06.34114.33.61787.00
    *273 1395139.74.07.20
    273 1686168.34.57.40
    273 2198219.16.37.55
    323 16812323.97.16168.34.520311.00
    323 2198219.16.311.10
    323 273102736.311.20

    Dimensional Tolerances of ASME B16 9 Reducers

    Nominal Pipe Size1/2 to 2.1/23 to 3.1/245 to 8
    Outside Diameter
    at Bevel (D)
    + 1.6
    – 0.8
    1.61.6+ 2.4
    – 1.6
    Inside Diameter at End0.81.61.61.6
    Overall Length (H)2222
    Nominal Pipe Size10 to 1820 to 2426 to 3032 to 48
    Outside Diameter
    at Bevel (D)
    + 4
    – 3.2
    + 6.4
    – 4.8
    + 6.4
    – 4.8
    + 6.4
    – 4.8
    Inside Diameter at End3.24.8+ 6.4
    – 4.8
    + 6.4
    – 4.8
    Overall Length (H)2255
    Wall Thickness (t)Not less than 87.5% of Nominal Wall Thickness
