UNS-JT Quick detection Accurate data Manufacturer Traffic Sign Retroreflectometer Patented optical
system

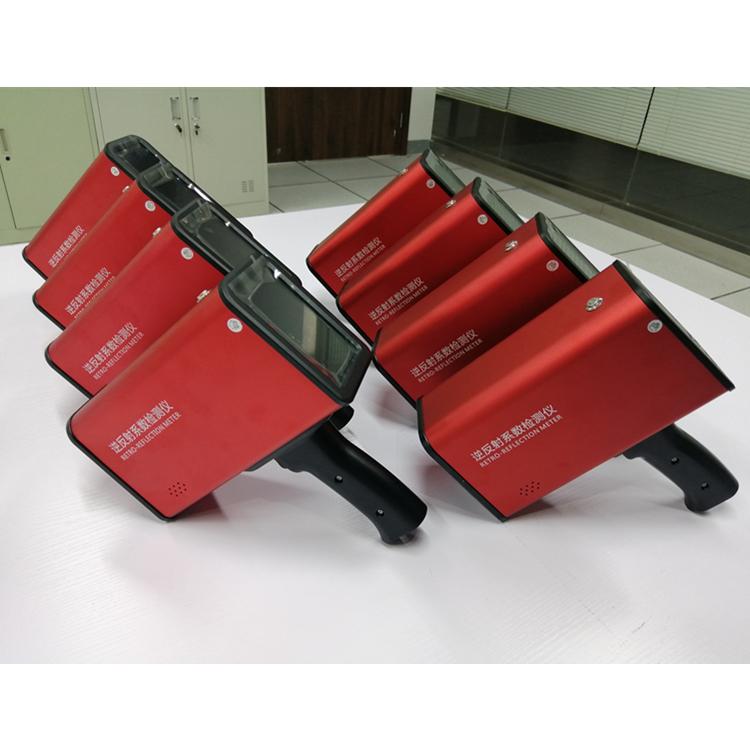

Retroreflectometer is a portable on-site measuring instrument, used
for the determination of night visibility of traffic signs and
safety garments.
Designed with high precision and high stability structure, The sign
retroreflectometer applies high-standard MCU master module,
large-capacity storage unit, touch screen display with handwriting
input function and embedded program control software, supports for
rapid inspection . It is featured by free preheating, small
measurement error, out-of-the-box and so on. This is a necessary
instrument for the production, quality supervision, engineering
construction, supervision and other units to measure the
retroreflection performance of reflective sign.
Main technical parameters
| Measurement items | retroreflective coefficient cd .lx .m-2 |
| Measurement range | 0---1999.9 |
| Observation angle | 0.2° |
| Angle of incidence | -4° |
| Data storage space | 8GB |
| Built-in battery capacity | 3500mAh |
| Charger | DC 8.4V |
| Instrument size | 220mm × 250mm × 80mm (L×H×W) |
Packing list
| Serial number | Name Specification | Number |
| 01 | Traffic Sign Retro-Reflection Meter | 1 |
| 02 | Charger | 1 |
| 03 | USB Date Line | 1 |
| 04 | Instructions | 1 |
| 05 | Certificate | 1 |
| 06 | Warranty Card | 1 |
| 07 | Calibration Board | 1 |
| 08 | Stylus | 1 |
Our Service
Customized Logo
Free logo printing will be offered if order quantity is above 1pcs.
Our Warranty
1 Years warranty for all customers .
Spare Parts
A proportion of spare parts will be shipped along with formal
orders.
Shipment
DHL , FEDEX , UPS , TNT , EMS :3-7 working days
Any other shipment way could be negoticated
