Tool kit for DC solar cable connectors professional hand crimping
tools set

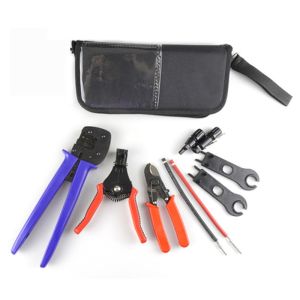

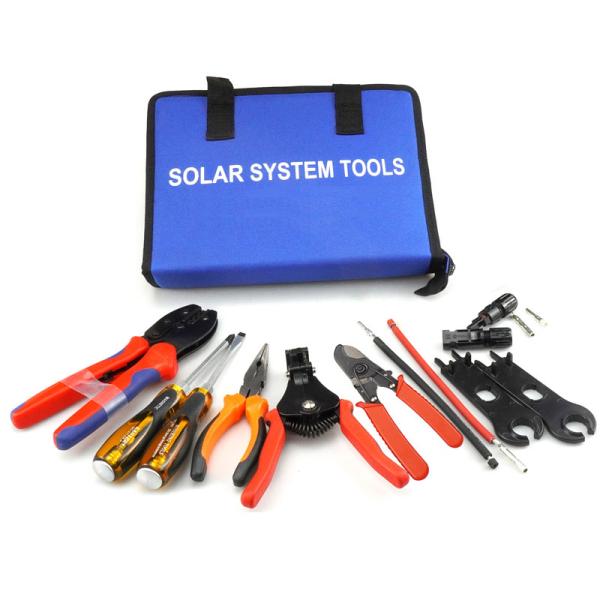

This selection of MC4 tools enables solar installers to cut, strip
and crimp multi-contact connections and ensure a high standard when
wiring MC3 MC4 and Tyco solar PV systems
Includes 3 interchangeable Jaws. MC3, MC4 and Tyco solar connector
dies
NEW DESIGN crimper for MC4 solar photo-voltaic cables
Solar cable stripper reliable to strip of double layer insulated
cables (2.5 – 6.00 mm²)
A complete tool kit to install MC4 solar connectors easily and
accurately
Includes 1 pair MC4 spanner for securing and tightening the cable
gland
1PCS A-2546B Crimping Tools(crimping range:2.5,4,6.0mm2),
1PCS Cable Stripper with cutter for cutting cables 30mm max and
stripping cables 0.6-2.6mm2,
2PCS 2546S Spanner,
1PCS locator,
1PCS connector,
1PCS die set(crimping range:2.5,4,6.0mm2),
1PCS die set(crimping range:1.5,2.5,4,6.0mm2),
1PCS Hex Spanner,Several screws
Contain:
| No. | The Type of Solar Kits | Introduce |
| 1 | A2546B solar cable crimper(With Solar Dies Set) | Solar cable crimper |
| Crimping Range: (Multi-Contact) & 2.5/4/6mm2 (AWG 26-10) |
| Length:270mm, Weight:0.74Kg |
| 2 | Locator | Use with A-2546B Solar Cable Crimper |
| 3 | Hex wrench | Use for Installing Dies/MC3 Dies/Tyco Dies |
| 4 | solar Dies Set | A Pair of Dies for MC3 solar connector |
| (Multi-Contact) & 2.5/4/6mm2 |
| (AWG 14/12/10) solar cable. |
| 6 | Solar Test Leads | A Pair of Solar Test leads for solar |
| connectors |
| 2 x 150cm test leads, IP65 Connector, |
| 4mm connectors, |
| High quality 1mm2 cable, 1000V / 19A CE |
| Warning Labels, |
| Allows for the safe connection to PV Panels, |
| Speeds up testing, |
| Exceeds GS38 Standards |
| 7 | LA-2546B solar cable stripper | Universal solar cable stripper, for |
| 2.5/4/6mm2 (AWG 14/12/10) solar cable |
| Length:170mm, Weight:0.32Kg |
| 8 | WX-206 solar cable cutter | Solar cable cutter for Soft cable/Wood sticks/ |
| Dowel rods/Animal Nail/Rope/ |
| Cord and many other materials |
| cable: 24mm2(3/8”) flexible |
| Material: stainless steel blade and TPR handles |
| Length:165mm, Weight:0.12Kg |
| 9 | Solar connector spanner | 2 PCS Open-end spanner and unlocking |
| tool ( and PLUS) |
| 10 | Straight Screwdriver | R&X screwdriver 5x75mm(Dia.*Length) |
| Material of Head: S2 Steel |
| 11 | Cross screwdriver | IWISS screwdriver 6x100mm(Dia.*Length) |
| Material of Head: S2 Steel |
| 12 | Bag | Carrying Oxford Zipper Bag: 305×205×75(mm) |
HOW TO USE THE SOLAR CONNECTOR CRIMPER TOOL TO COMPLETE SOLAR
CABLE?
The female metal work is great bigger than the male metalwork, it
should match the male connector, and vice versa.
Step A: Confirm which connector should the bare end put in. If the
other end is a male connector, the bare end should put in the
female connector, vice versa.
Step B: (Take 's solar cable as an example) Lead the red cable
through the base, strain relief and the compression sleeve, then
crimp the red cable's bare end into the female metalwork, put in
the male connector.
Step C: (Take 's solar cable as an example) Lead the black cable
through the base, strain relief and the compression sleeve, then
crimp the red cable's bare end into the male metalwork, put in the
female connector.
Picture of Wire Terminal Crimping Set
