    400Hz Generator AVR Automatic Voltage Regulator

    Ask Lasest Price
    Brand Name : Lan Zhou Electric
    Model Number : ZPWT-4B
    Certification : CE/ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 500 unit per month
    Delivery Time : 3 days
    • Product Details
    • Company Profile

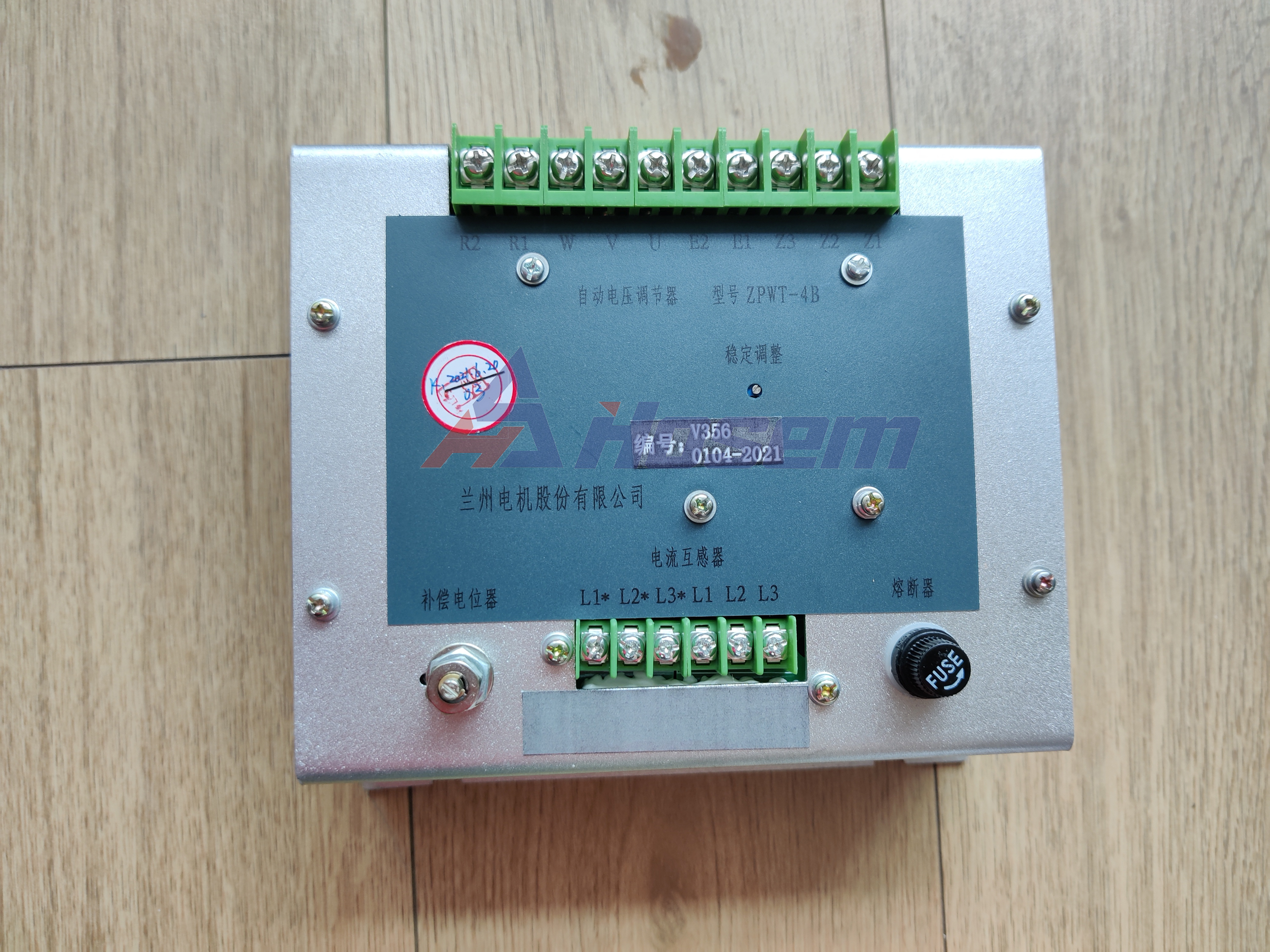

    400Hz Generator AVR Automatic Voltage Regulator

    AVR for 400Hz Generator, ZPWT-4B, Lan Zhou Electric Cooperation


    Sensing InputVoltage 170~510 VAC single phase 2 wire
    Frequency 50/60 Hz
    *EA16-400HzFrequency 400 Hz
    Power InputVoltage 60~300 VAC single phase 2 wire
    OutputVoltage Max. 90 VDC @ 240 VAC input
    Current Continuous 16A, Max. Intermittent 20A for 10 sec.
    Resistance Min. 6 Ohm @ 35 VDC
    Voltage Regulation< ±0.5% (with 4% engine governing)
    Voltage Build-upResidual volts at AVR terminal > 5 VAC
    External Volts Adjustment±5% with 2 K Ohm 1 watt trimmer
    Unit Power DissipationMax. 10 watt
    Thermal Drift0.03% per °C change in AVR ambient
    Under Frequency Protection55 Hz @ 60 Hz / 45 Hz @ 55 Hz (Adjustable)
    *EA16-400Hz360 Hz (Adjustable)
    CT Current Compensation Input1A or 5A (Selectable)
    Analogue Input±5 VDC ±10% AC @ ±3 VDC
    EnvironmentOperating Temperature-40~70 °C
    Storage Temperature-40~85 °C
    Relative HumidityMaximum 95%
    Vibration3.3G @ 100~2 KHz
    AVR Controls FunctionsVOLTVoltage Adjustment
    STABStability Adjustment
    U/F*: To Set the U/F Knee Point
    DROOPTo Adjust Droop
    TRIMAnalogue Input Adjustment
    (*U/F: Under Frequency Protection)
    Dimensions156.0 (L) x 106.0 (W) x 43.0 (H) mm
    Weight450g ±2%
