    Digital Flanged Hydrogen Gas Flow Meter Explosion Proof Easy Installation

    Ask Lasest Price
    Brand Name : KACISE
    Model Number : KUHM2100
    Supply Ability : 10000 Piece/Pieces per Week negotiable
    Price : $80.00 - $400.00/pieces
    Certification : CE
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

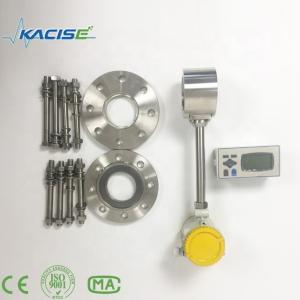

    Digital Flanged Hydrogen Gas Flow Meter Explosion Proof Easy Installation

    Digital Flanged Hydrogen Gas Flow Meter Explosion Proof Easy Installation

    1. General Introduction:


    Our digital flanged hydrogen gas flow meter is a remarkable product designed specifically for hydrogen gas flow measurement. This meter is engineered with the highest safety standards in mind, being explosion - proof to ensure secure operation in potentially hazardous environments where hydrogen gas is present.
    The flanged design simplifies the installation process significantly. It allows for easy and quick integration into existing piping systems, minimizing downtime during installation. With its digital technology, the flow meter provides highly accurate and real - time measurements of hydrogen gas flow. This enables precise control and monitoring of gas consumption or flow rates in various industrial applications such as hydrogen production plants, fuel cell systems, and chemical processing facilities. The meter's user - friendly interface makes it easy for operators to access and interpret the data, facilitating efficient operation and maintenance. Its robust construction ensures durability and long - term reliability even under the most demanding conditions.

    2. Technical Features:

    • Detecting element does not touch with flow medium, with high reliability and strong flexibility for medium;
    • No moving parts, wear resistance, structure is simple and fastness;
    • Assemble with anti-interference circuit and anti-vibration sensors, which could ensure anti-vibration performance of the product;
    • The allowed working temperature is wide from -40℃ to +350℃;
    • Wide range, High accuracy;
    • Pulse signal output or two-wire system 4-20mA current signal output.

    3. Structure:

    4. Technical Specifications:

    Pipe Diameter

    DN15~DN1800

    Meter Materials

    1Cr18Ni9Ti

    Nominal pressure (Mpa)

    1.6Mpa; 2.5Mpa; 4.0Mpa

    Measured medium temperature (℃)

    -40~+250℃; -40~+350℃

    Environmental conditions

    Temperature:-10~+55℃, humidity 5%~90%, pressure: 86~106Kpa

    Accuracy class

    liquid: reading ±0.5

    Measuring gas or steam:

    reading±1.0,±1.5

    Turndown ratio

    1:10;1:15

    Pressure loss coefficient

    Cd<2.6

    Output signal

    4-20mA or Pulse

    Power supply

    sensor: +12VDC, +24VDC

    transmitter: +24VDC

    On site display: 3.2V battery

    Signal transmission lines

    STVPV3×0.3(three-wire), 2×0.3(two- wire)

    Installation

    Integrated clamping flange or flange connection

    Transmission distance

    ≤500m

    Signal line interface

    Male threadM20×1.5

    Explosion levels

    ExdIIBT6

    Protection class

    IP65

    Allow vibration acceleration

    1.0g

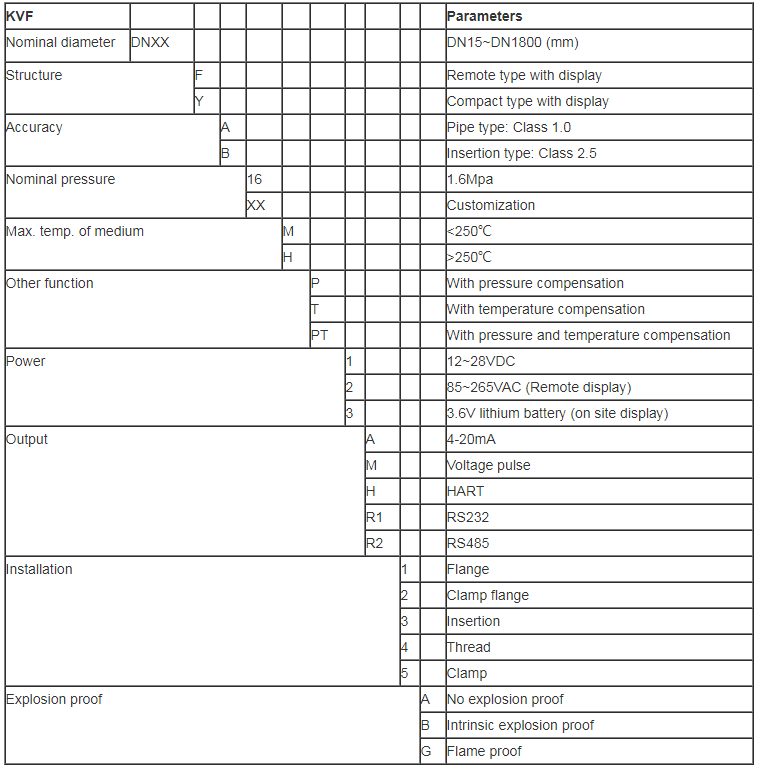

    Model Selections:

    Applications:

    Certificates

    Company Information

    Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.

    We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
    Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.

    Our Services
    • Quality is the most important issues;
    • We provide one-stop service for electronic goods;
    • We offer cost effective and competitive price to help save cost and bring big benefit on our esteemed customer side;
    • Quick and accurate delivery and flexible logistics support;
    • Support customization, can do the OEM/ODM according to the exact requirements from our extinguished customers.
