Pull To Start Heating Induction Brazing Machine With Water Pressure
4~6 Bar Cooling System
Product Description:

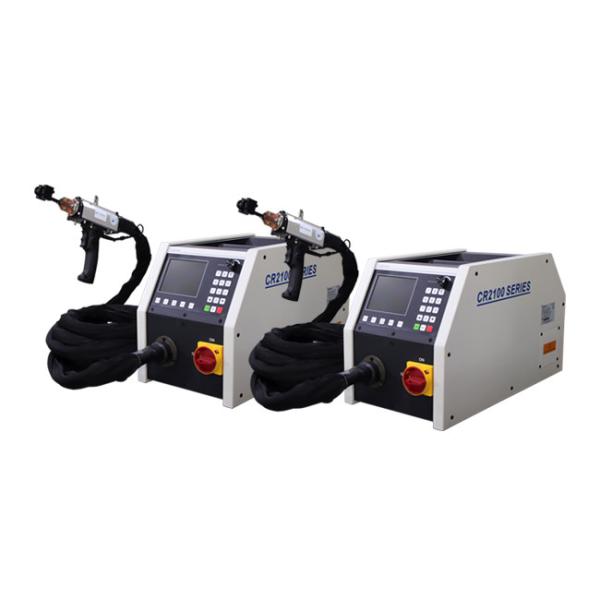

CR2100 Series induction Heating is designed with multiple control
modes built-in, allowing for easy, precise and safe operation. It
has an adjustable pull-to-start heating trigger, which when loose
stops heating. The input frequency is 50-60Hz while the output
frequency is 10-40KHz, with a temperature range of -20℃ ~ +50℃ and
high frequency power. This machine is suitable for brazing
stainless steel/copper/aluminum/steel and is renowned for its fast
and reliable performance.
Features:
- Product Name:CR2100 Series induction Heating
- Induction Coil Size: Customizable
- Temperature Control: Digital Display
- Temperature: -20℃ ~ +50℃
- Output Frequency: 10-40KHz
- Heating Mode: Induction Heating
- Material: stainless steel/copper/aluminum
- Application: metal heat treatment
- System: Advanced system integration
- Structure: compact structure
Technical Parameters:
| Parameter | Value |
|---|
| Input Power | 10KVA |
| Rated Input Current | 28.8A |
| Induction Coil Size | Customizable |
| Trigger | Pull To Start Heating, Loose To Stop Heating |
| Induction Coil | Copper |
| Weight | 20KG |
| Duty cycle | 100% |
| Temperature | -20℃ ~ +50℃ |
| Temperature Control | Digital Display |
| Power Consumption | 20KW |
| Fault protection | Yes |
| Metal heat treatment | Yes |
| Accurate control of heating area | Yes |
Applications:

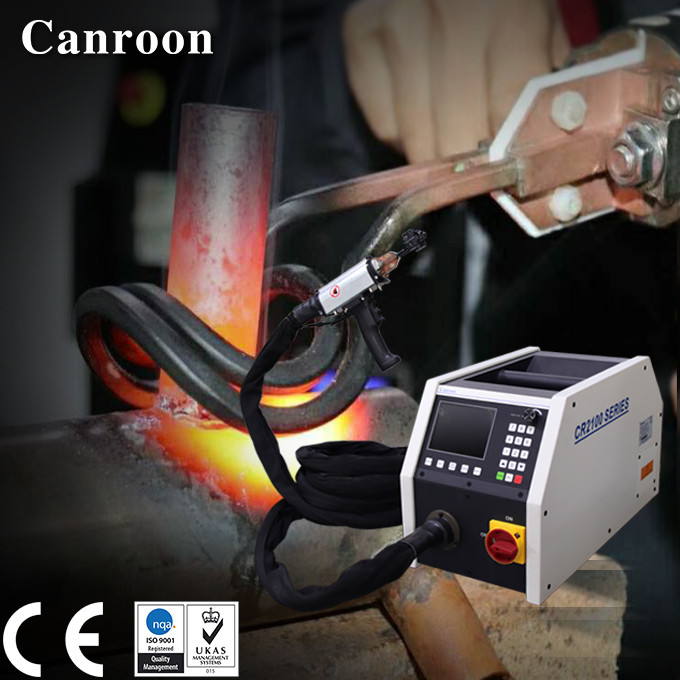

Canroon's CR2100 Series induction Heating is an advanced product
used in a variety of applications for stainless steel, copper and
aluminum. It is a perfect choice for metal heat treatment, welding,
soldering, joining, surface coating and metal bonding. This machine
is CE and ISO9001 certified and can be customized according to
customer requirements. It is lightweight and portable, with an
external chiller for water cooling and a digital display for
temperature control. The rated input current is 28.8A and the
induction coil is made of copper. The minimum order quantity is one
piece and the price is negotiable.
Customization:
Induction Brazing Machine
Brand Name: Canroon
Model Number: CR2100
Place of Origin: Shenzhen, China
Certification: CE ISO9001
Minimum Order Quantity: 1
Price: negotiated price
Packaging Details: wooden box , carton box
Delivery Time: 7-15 days
Payment Terms: L/C, T/T, Western Union,Paypal
Supply Ability: 300 Piece/Pieces per Week
Rated Input Current: 28.8A
Trigger: Pull To Start Heating, Loose To Stop Heating
Output Frequency: 10-40KHz
Power Consumption: 20KW
Power: High Frequency
Key Features:
- Accurate control of heating area
- Induction Brazing Machine
Support and Services:
Induction Brazing Machine technical support and services include:
- Dedicated customer service team to answer product questions
- On-site installation, setup, and training services
- Access to product manuals and documentation
- Regular maintenance and repair services
- Spare parts availability
- Product warranty services
FAQ:
Q1: What is Induction Brazing Machine?
A1: Induction Brazing Machine is a type of welding machine that
uses induction heating to join two parts together.
Q2: What is the Brand Name of Induction Brazing Machine?
A2: The Brand Name of Induction Brazing Machine is Canroon.
Q3: What is the Model Number of Induction Brazing Machine?
A3: The Model Number of Induction Brazing Machine is CR2100.
Q4: Where is the Place of Origin of Induction Brazing Machine?
A4: The Place of Origin of Induction Brazing Machine is Shenzhen,
China.
Q5: What is the Minimum Order Quantity of Induction Brazing
Machine?
A5: The Minimum Order Quantity of Induction Brazing Machine is 1.
