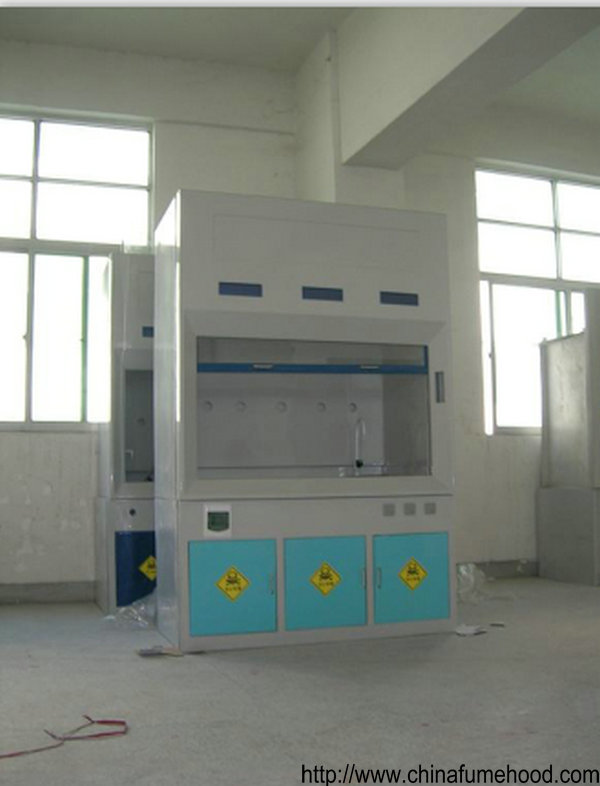

Table Fume Hood in Laboratory System From China Lab Factory For Oversea Importers
Features of Table Fume Hood:
1.Corrosion resistance: FRP has a wide range of corrosion
resistance, it is suitable for acid gas, toxic and harmful gases
and organic solvent gas and dust production operation post and
occasions.
2.Operation table: 12.7mm thick wilsonart solid physiochemical
board, acid and alkali resistance, moisture proof, anti shock.
3.Adjust door: two section type safety tempered glass, stepless
balanced lifting, pulling up and down to stay in any position.
4.Lighting: fluorescent lamp light source and anti-corrosion,
isolution light and gas , table light is more than 400 lumens.
5.Operation panel: lighting switch, fan ON/OFF switch, 220V, 10A
multi-function two sockets.
6.Light weight, high strength,FRP can withstand 80℃ temperature for
a long time, short-term to 130℃ , FRP oxygen index is more than
30,belong to flame retardant materials.
7.Aging resistance, long service life: under normal
circumstancescan be used more than 15 years.
Descriptions of Table Fume Hood:
| Product Name | Table Fume Hood |
| Material | FRP |
| Size | 1200*800*2350MM,1500*800*2350MM,1800*800*2350MM |
| Bench Top | Using the table 12.7MM thick wilsonart solid physiochemical board, surrounding pressure viscosity increased edge 10MM thick water retaining edge. |
| Cabinet | Using polymeric resin material is glass fiber reinforced plastic
material, has the advantages of strong corrosion resistance and long lasting, no rust, no peel off,high temperature, flame retardant and so on. |
| Inner Liner | Lining and baffles are used polymer resin material, forming a
deflector. |
| Windows | Using 5mm thickness tempered glass,continuously variable counterweight design,window lift freely, can stop at any position. |
| Power Distribution | Choose Zhejiang CHINT senior socket,the specifications for rated current 16A three holes socket, 10A five holes socket, 25A/380V four holes socket. |
| Air Exhaust | Design of third level air exhaust,no exhaust dead,air volume can be
adjustable,the speed of surface wind can be up to 0.5m/s. |
| Lighting | 30W or 40W Fluorescent lamp lighting with hidden type. |
| Functions | The cabinet body is provided with a leakage, overload, short circuit automatic protection device,and is equipped with the fan control system, practical and safe. |
| Sink | 6mm thickness imported PP material with pressure, corrosion resistance and high temperature performance. |
| Water Faucet | Ventilation cabinet special single water faucet, with anti-corrosion performance,imported. |
| Hinges | 90 degrees, 180 degrees adjustable hinge, Guangzhou produced high-qualityhinge. |
| Adjustable Footing | Stainless steel with rubber adjustable feet,adjustable height to 50mm. |
| Working Door Opening Height | 800mm~1000mm |
Company Informations:

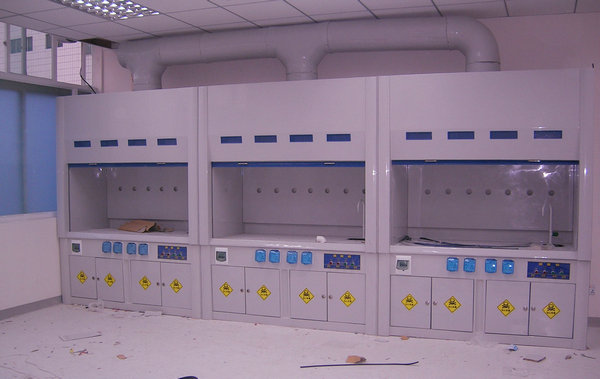

Photos of Our Projects:
