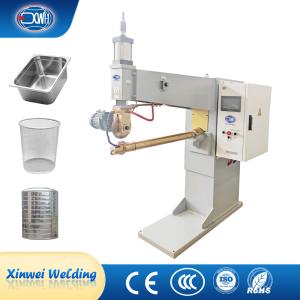

Semi-Automatic 160Kva Mfdc Longitudinal Automatic Seam Welding
Machine Seam Welders
Product Description
The FN series seam welding machine adopts an advanced digital logic
control method, which can accurately control the size of the
current and the length of welding time. Suitable for welding
between metals such as iron, zinc, nickel, stainless steel,
tungsten, and other dissimilar metals. Due to the pulse welding
performance of this series of welding machines, the welding effect
is good.
Technical Parameters
Model Item | Unit | FN-80-H | FN-100-H | FN-160-H | FN-100-E | FN-160-E |
| KVA | 80 | 100 | 160 | 100 | 160 |
Voltage input | V
| 380
| 380
| 380
|
| 380
|
Frequency | Hz | 50 | 50 | 50 | 50 | 50 |
Max. short circuit current | KA | 26 | 30 | 40 | 30 | 40 |
Working stroke | mm | 100 | 100 | 100 | 100 | 100 |
Welding efficiency | m/min | 0.7-3.9 | 0.7-3.9 | 0.7-3.9 | 0.7-3.9 | 0.7-3.9 |
Max. force | N | 6000 | 6000 | 7800 | 6000 | 7800 |
Max. welding capacity | mm | 1.2+1.2 | 1.5+1.5 | 2.0+2.0 | 1.5+1.5 | 2.0+2.0 |
| W | 550 | 750 | 750 | 750 | 400 |
Cooling consumption | L/min | 8 | 8 | 10 | 8 | 10 |
Weight | Kg | 380 | 510 | 630 | 530 | 700 |
Advantages
1.The welding process is stable and easy to adjust.
2.Internal cooling used in the welder, while external cooling of
the welding wheel.
3.The rotating part is embedded silver tile structure, the
conductive seat is fully sealed and lubricating, which improves the
conductivity and the rotation flexibility.
4.Two kinds of welding modes: Horizontal and Vertical.
5.Widely used in hardware fittings, electrical, automobile, fuel
tank and other manufacturing industries industry.
Detail Images
Images
Application
Please note: the welding machine can be custom-made according to
your requirements.
Frequently Asked Questions
1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized
machines should be more than 25 days.
2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection
by QC department before shipping.
3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can
provide customize service according to your requirement.
4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to
send us payment.
5. How to contact you?
You can send a mail for us and call us.
6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.
7.How about your transport packing? Is it possible to damage the
machine during the transportation?
We have rich experience on international transportation. All the
packing are extra thickness carton filling with protective PE foam
and waterproof membrane. No damage happened during transportation
until now.
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
