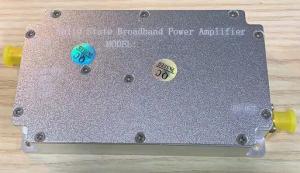

10W Solid State Power Amplifier Module 900MHz 1600MHz Microwave
Source
Product Description:
solid-state microwave source, can provide 10W continuous wave
power, can realize output power adjustment of 0.1W~10W, the
internal use of phase-locked loop technology, high frequency
stability, power amplifier built-in high-power circulator and load
, suitable for loads of various standing wave ratios; has a
complete protection circuit to ensure the reliable operation of the
power source.
Features:
- Product Name: High Power Radio Amplifier, Transmitter Power Amplifier, Radio
Transmitter Power Amplifier
- Frequency Range: 900MHz To 1600MHz
- Supply Current: 5.5A
Technical Parameters:
| Item | Specification |
|---|
| Frequency Range | 900-1600 MHz |
| Output Power | 40 dBm |
| Tx Gain | 42 ± 1 dB |
| Gain Flatness | ≤3.0 (dB) Peak To Peak Over Freq Band |
| Input VSWR | ≤ 1.8:1 |
| DC Current | 5.5 A |
| Size(DxWxH) | 130x75x20 mm |
| In/Out Commector | SMA/N Female |
| Protection | Output Protected Against High VSWR |
| Operation Temp. | -20 ~ +65 (°C) |
| I/O Map | Socket 5Pin 2.54mm
Pin 1,2: 12V
Pin 3: GND Pin 4:ON/OFF (ON enable level: 1.5V) |
| Supply Voltage | 12V |
| Work Mode | CW Signal
|
Applications:
RF Power Amplifier – Model Number: PA900T1600M 10W-12V
This product is mainly suitable for plasma excited MPT engine
microwave ignition, solid-state microwave oven, thermal medical
treatment, industrial heating, microwave lighting, microwave
thawing, etc.
Customization:
Custom Radio Frequency Power Amplifier
Our custom radio frequency power amplifier (Model Number: PA900T1600M 10W-12V) is designed for 900MHz to 1600MHz frequency range, 42dB gain, 50Ω
input/output impedance, and SMA/N connector type. It is
manufactured in China, with minimum order quantity of 2. The price
is negotiable.
