Industrial 30 Tons Large Split Type Evaporative Cooled Flake Ice Machine For Ice Factory

Industrial 30 Tons Large Split Type Evaporative Cooled Flake Ice Machine For Ice Factory

Flake ice machines are divided into integrated and split types. Split type is usually used in rooms with poor ventilation or limited space. Separate the ice drum from the refrigeration unit, or separate the ice making unit from the condenser. Place the ice drum indoors and place the refrigeration unit or condenser directly outdoors. It is recommended to add a shed for outdoor unit.

Feature of Flake Ice Maker

• Low production costs;
• Excellent food preservation;
• Mix thoroughly;
• Convenient storage and transportation;
• High stability, low failure rate;
• Direct low temperature, low ice temperature, up to -8c or less;
• Ice formation is dry and clean, with beautiful shape, not easy to block, good fluidity, and convenient hygiene;
• Due to its sheet-like structure, it has a large contact area with cold collectibles and excellent cooling effect;
• Ice sheets have no sharp edges and corners, which will not damage the surface of cold storage items and are very convenient for storage and transportation;
• The thickness of ice can reach 1.5-2.5mm, and it can be used at any time without the use of an ice crusher.

Product name: Flake Ice Machine Model: HXFI-3T Ice output: 30 ton/24hrs Power: 80kw Power supply: 380V/50Hz/3Phase Cooling way: evaporative cooled (split type) Water feeding type: fresh water Usage: fishery, aquatic product processing, food processing Operation: one button start Optional: 1. upgrade ice drum to be food grade stainless steel material; 2. add a stainless steel structure to support the ice machine; 3. add an ice storage room below the ice machine to store ice flakes.

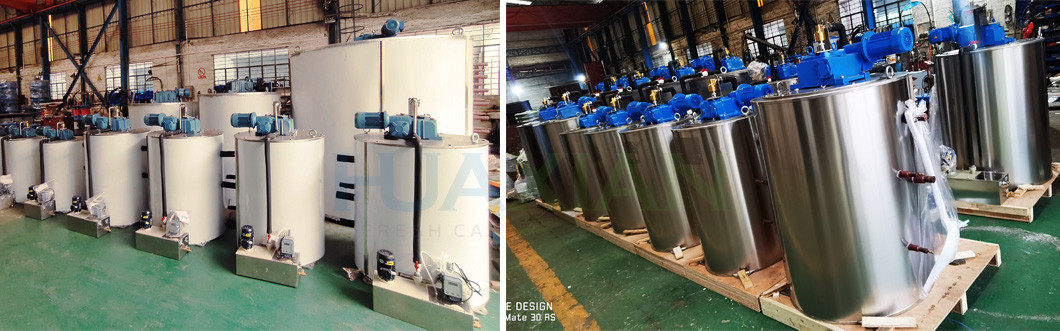

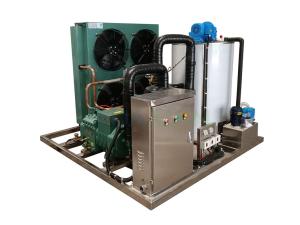

Product Pictures

Components

Models

Applications

1. Hotel seafood display, vegetable preservation, packaging and quality assurance of special dishes;

2. Supermarket seafood display and transportation, vegetable preservation and transportation;

3. Food factory food addition, raw material preservation, food pre-cooling;

4. Meat processing plants Pre-cooling, preservation, freezing and transportation of live-killed livestock and poultry;

Usage Case

Our Service

• Project design
• Drawing
• Manufacturing
• On site supervise
• Clients training
• After sales services.

After-sales Services

• 24/7 consults
• 24~72 hours to solve problem
• 1 year warranty
• Life-long maintenance
• Installation: installation and operation manual, online training.

FAQ

1.Can the ice machine be 220V single phase?

• Single phase compressor is too small cooling capacity to run an ice machine, we suggest 3 phase compressor.

2.What are the functions of ice flakes?

• The ice flakes are dry and large surface, can keep fish fresh, and lower produce temperature during food processing.

3.How to install ice maker machine?

• 30 ton flake ice machine is integrated type, connect the correct power cable and water pipeline.

4.How to operate the ice maker machine?

• The flake ice machine is easy operation, one button start.

5.What's the package?

• Naked package, the 30tons flake ice machine is large, which is loaded in the container directly.
