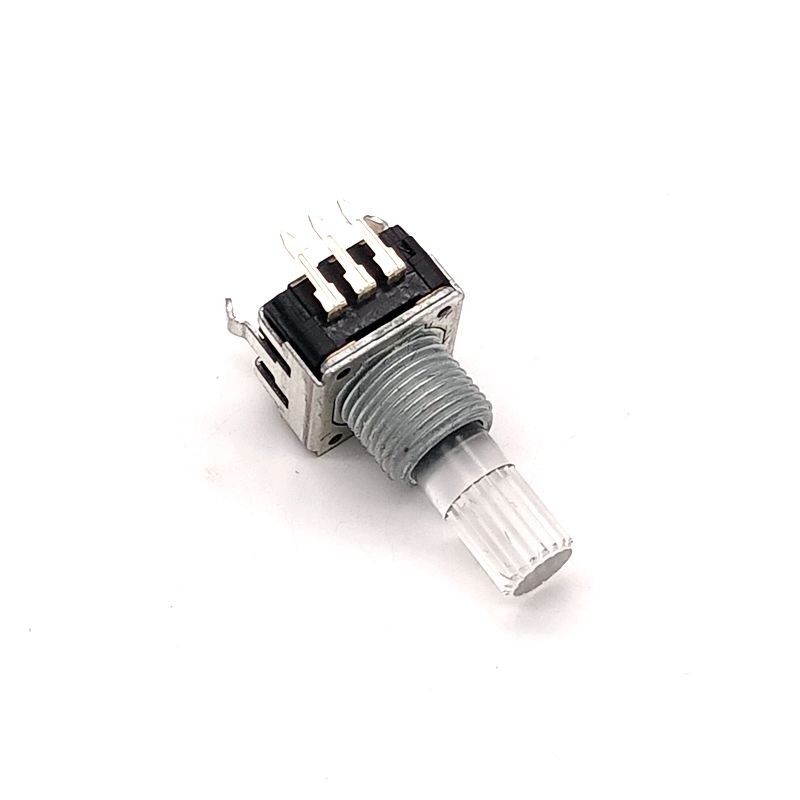

    EC12 12 Step Rotary Encoder Push Button Switch Led Light 5mA

    Ask Lasest Price
    Brand Name : TQ
    Model Number : EC12 led light with switch encoder
    Certification : CE,ISO
    Price : USD 0.7 per pieces
    Payment Terms : T/T, Western Union.Trade Assurance
    Supply Ability : 50000 pieces per day
    Delivery Time : 25 days
    • Product Details
    • Company Profile

    EC12 12 Step Rotary Encoder Push Button Switch Led Light 5mA

    EC12 Metal Shaft Incremental Rotary Encoder With Led Light Switch


    Features

    • Can input the data when used with in-car CD player
    • Can control the volume, on/off and data selection through LED or LCD display
    • Great for use with PIC or ATMEL microcontrollers
    • Rotary Shaft Length: Approx. 12mm
    • Shaft Overall Length: Approx. 20mm
    • Shaft Diameter: Approx. 6mm
    • Dimension (LxW): Approx. 15x12mm
    • Rated voltage: DC 5V
    • Max. rated current (Impedance load): Each phase conductor: 0.5mA, Min. 0.5mA
    • General conductor: 1mA (MAX. 10mA, MIN. 0.5mA)
    • Position: 20
    • Pulse: 20
    • 360-degree rotation
    • Operating temperature: -10°C~+70°C
    • Storage temperature: -40°C~+85°C
    • Rotational life: Min. 30000 cycles
    • Switch life: Min. 20000 cycles
    Specification
    item
    value
    Certification
    CE ISO
    Whether the smart
    NO
    Place of Origin
    China
    Guangdong
    Brand Name
    TQ
    Model Number
    EC12 with led light switch
    Max. Current
    10mA
    Type
    Incremental
    Application
    auto,speaker audio
    Pulse number
    15/10
    Number of clicks
    30
    Total rotational angle
    360 degree
    Rotational torque
    50~200gf.cm
    Operational temperature
    -30℃~80℃
    Dielectric Voltage
    1 minute at AC 110V
    Insulation resistance
    10mΩ 1Minute at DC 110V
    Rotational life
    30,000 times Min


    Company Frofile

    Dongguan TianQian Electronics Co., Ltd.established in 2013,it is specialized in design, development and production of high precision components such as Rotary Potentiometer, Sliding Potentiometer, Foot Switch, Band Switch, AC Switch, Sensor, Encoder, Tact Switch and Connectors. The products are widely used in Dimmable Lighting, Audio Mixer, Home Appliances, Automobile, Multimedia, Audio Equipments, Instrument, Toys, Aviation Model and Communication Equipments. We have an area of above 3,000 square meters of factory building. Our R&D team members have more than 20 years experience in the component industry. In order to meet the high quality demand from worldwide customers, we widely use automated production lines which can output more than 80% of annual production capacity. It takes pride in the achievement that we have been the key supplier of JVC, Brother, , Midea, Microsoft, Honeywell, Sennheiser, Primax and GGEC...etc. With the consistent enterprise principles "Striving Excellence" & "Quality Assurance", we hope both parties can establish a mutual benefit relationship and create a win-win situation.


    Application
    Used in Dimmable Lighting, Audio Mixer, Home Appliances, Automobile, Multimedia, Audio Equipments, Instrument, Toys, Aviation Model and Communication Equipments
    Certification&Exhibition
    Cooperation partner

    Service


    WELCOME TO ASK ANY QUESTIONS. Any inquiry will be replied in 12 hours.
    If the product received is not as DESCRIBED, a replacement will be issued.


    Advantage


    A variety of DVD players, CD portable audio, video monitors and other audio equipment control,like Audio mixer, electronic musical instruments control, car navigation, car audio potentiometer. Adjustment and menu selection, common household appliances governor.
