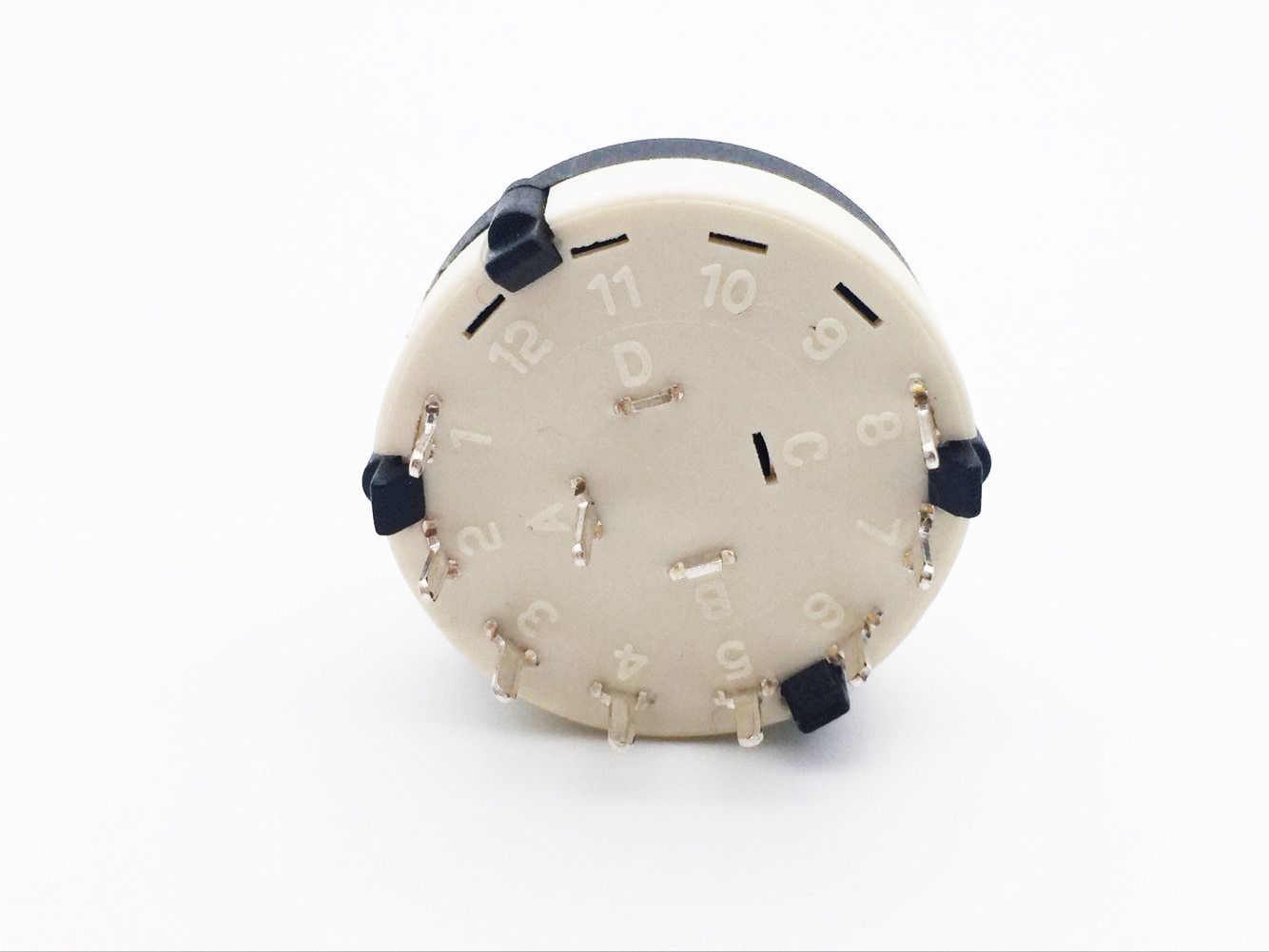

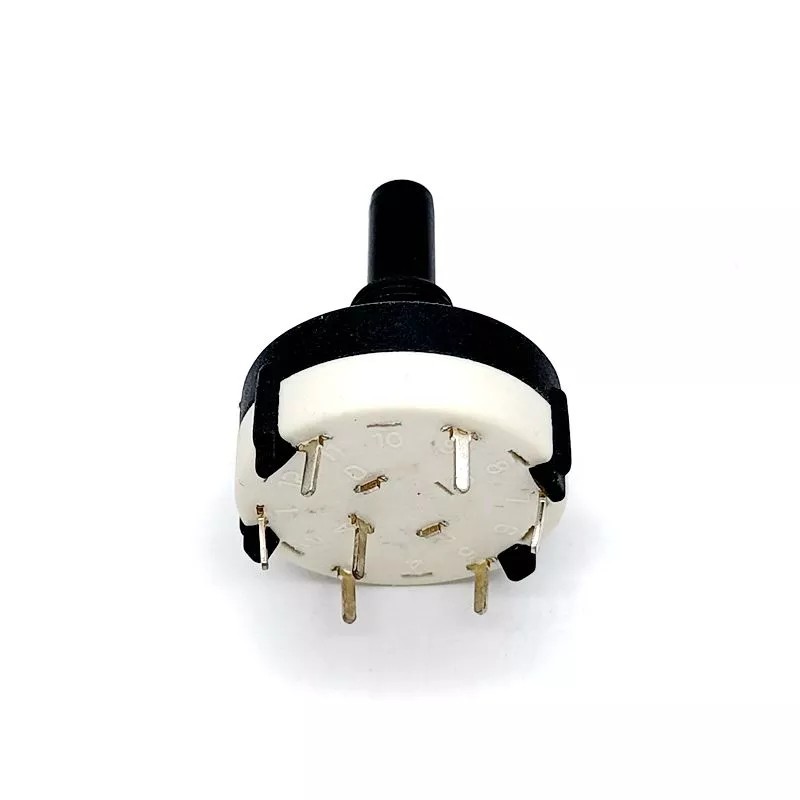

Diameter 26mm Rotary Band 0.3A Multi Position Rotary Switch For Fans Ovens

SR26 26mm Diameter All-Plastic Sealed Multi-Pole Multi-Position Band Rotary Switch For Fans, Ovens, Heaters

Description

Model Number:

SR26

Max. Current:

125V AC 0.3A

Max. Voltage:

Applying 500V AC measure for 1 minute

Mechanical Life:

15000 cycles

Contact resistance:

Less than 50mΩ

Switch power:

125V AC 0.3A

Insulation resistance:

100MΩ(min)

Voltage proof:

Applying 500V AC measure for 1 minute

Operating force:

0.5~1.2kgf.cm/1.3~1.7kgf.cm

Rotation stopper strength:

more than 5kgf.cm

Push-pull strength of shaft:

more than 8kgf.cm

shaft wobble:

0.7*L/30mm Max.

Operating life:

15000cycles

application:

fans, ovens, heaters

Dongguan TianQian Electronics Co., Ltd. established in 2008, it is specialized in design, development and production of high precision components such as Rotary Potentiometer, Sliding Potentiometer, Foot Switch, Band Switch, AC Switch, Sensor, Encoder, Tact Switch and Connectors. The products are widely used in Dimmable Lighting, Audio Mixer, Home Appliances, Automobile, Multimedia, Audio Equipments, Instrument, Toys, Aviation Model and Communication Equipments.

We have an area of 3,000 square meters of factory building. Our R&D team members have more than 20 years experience in the component industry. In order to meet the high quality demand from worldwide customers, we widely use automated production lines which can output more than 80% of annual production capacity. I

t takes pride in the achievement that we have the key customers of JVC, Brother, , Midea, Microsoft, Honeywell, Sennheiser, Primax and GGEC...etc. With the consistent enterprise principles "Striving Excellence" & "Quality Assurance", we hope both parties can establish a mutual benefit relationship and create a win-win situation.

OEM/ODM are both accpetable
