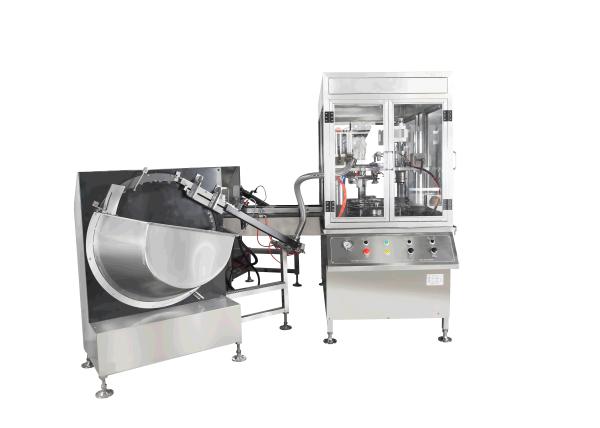

3600C Configuration Fully Automatic Aerosol Filling Machine
Production Discription:
The Fully Automatic Aerosol Filling Machine is a highly efficient
and advanced equipment used in the aerosol industry for filling
various types of aerosol products. It is designed to automate the
process of filling, sealing, and packaging aerosol cans.
This machine incorporates state-of-the-art technology and precise
control systems to ensure accurate and consistent filling of
aerosol products. It is equipped with multiple filling heads that
can accommodate a wide range of aerosol can sizes and shapes.
The filling process is fully automated, starting from the placement
of empty cans onto the conveyor system, followed by the filling of
the desired product, such as perfumes, air fresheners,
insecticides, paints, and more. The machine ensures that each can
is filled with the correct amount of product, avoiding any wastage
or inconsistencies.
After the filling process, the cans are sealed using a sealing
head, which ensures that the product remains intact and free from
any contamination. The machine also incorporates a quality control
system to check the integrity of the cans and seal before they are
packaged.
Additionally, the Fully Automatic Aerosol Filling Machine is
equipped with features such as automatic can orientation, gas
flushing capabilities, and a user-friendly interface for easy
operation and monitoring. It has a high production capacity, making
it suitable for large-scale aerosol production lines.
Overall, the Fully Automatic Aerosol Filling Machine offers
increased efficiency, precision, and reliability in the aerosol
filling process. Its advanced technology and automation
capabilities contribute to improved productivity and reduced labor
costs for aerosol manufacturers.
Specification:
item | value |
Condition | New |
Type | Filling Machine |
Machinery Capacity | 4000BPH, 8000BPH, 12000BPH |
Applicable Industries | Hotels, Garment Shops, Building Material Shops, Manufacturing
Plant, Machinery Repair Shops, Food & Beverage Factory, Farms,
Restaurant, Home Use, Retail, Food Shop, Printing Shops,
Construction works , Energy & Mining, Food & Beverage Shops, Other,
Advertising Company |
Showroom Location | Egypt, Canada, Turkey, Italy, France, Germany |
Application | Food, Beverage, Commodity, Chemical, Machinery & Hardware, APPAREL,
Textiles, Cigarettes, Tobacco |
Packaging Type | CANS |
Packaging Material | Plastic, Metal, Wood, Other |
Automatic Grade | Automatic |
Driven Type | Electric |
Voltage | 220V |
Place of Origin | China |
| Guangdong |
Brand Name | Weidong |
Dimension(L*W*H) | 30500*4800*2550 |
Weight | 260KG |
Warranty | 1 Year |
Key Selling Points | Easy to Operate |
Filling Material | Other, Powder |
Filling Accuracy | ≤0.1% |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Warranty of core components | 1 Year |
Core Components | Motor, Pressure vessel, Pump, Other, PLC, Gear, Bearing, Gearbox,
Engine |
Filling capacity (cans/min) | 100-120 |
Liquid filling volume (ml) | 50-1000 ( can be customized) |
Gas filling volume (ml) | 20-700 (can be customized) |
Filling accuracy | ≤1% |
Applicable cans diameter (mm) | 35-65 ( can be customized) |
Applicable cans height (mm) | 80-350 ( can be customized) |
Applicable valve (mm) | 25.4 (1 inch) |
Working pressure (Mpa) | 0.65-1 |
Max gas consumption (m3/min) | 6.4 |
Power (KW) | 6.5KW |
Features :
* Completely pneumatic driven parts make sure safe operation.
* Users can choose how many liquid filling heads to work.
* Stable performance to make sure achieve high productivity.
Configuration:
1. Automatic can feeder
2. High-speed automatic liquid filling machine
3. Automatic valve feeder machine
4. High-speed automatic crimping and valve correction machine
5. Fully automatic gas filling machine
6. High-speed weight check machine
7. Automatic actuator feeder machine
8. High-speed automatic cap feeder machine
9. Packing table
