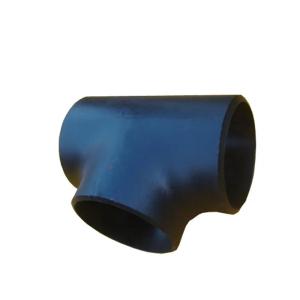

P235GH SCHEDULE 40 STANDARD STEEL PIPE FITTINGS SCH80 1.0345 ELBOW TEE CS REDUCING TEE

  • Product Details
  • Company Profile

P235GH SCHEDULE 40 STANDARD STEEL PIPE FITTINGS SCH80 1.0345 ELBOW TEE CS REDUCING TEE

P235GH SCHEDULE 40 STANDARD STEEL PIPE FITTINGS SCH80 1.0345 ELBOW TEE CS REDUCING TEE


Grade :P235GH
Number:1.0345
Classification:Non-alloy quality steel
Density:7.85 g/cm ³
Standard:
EN 10028-2: 2009 Flat products made of steels for pressure purposes. Non-alloy and alloy steels with specified elevated temperature properties
EN 10216-2: 2014 Seamless steel tubes for pressure purposes. Technical delivery conditions. Non-alloy and alloy steel tubes with specified elevated temperature properties
EN 10217-5: 2002 Welded steel tubes for pressure purposes. Submerged arc welded non-alloy and alloy steel tubes with specified elevated temperature properties
EN 10217-2: 2002 Welded steel tubes for pressure purposes. Electric welded non-alloy and alloy steel tubes with specified elevated temperature properties
EN 10253-2: 2007 Butt-welding pipe fittings. Non alloy and ferritic alloy steels with specific inspection requirements
EN 10273: 2007 Hot rolled weldable steel bars for pressure purposes with specified elevated temperature properties

Chemical composition % of steel P235GH (1.0345): EN 10028-2-2003
CSiMnNiPSCrMoVNNbTiAlCu-
max 0.16max 0.350.6 - 1.2max 0.3max 0.025max 0.015max 0.3max 0.08max 0.02max 0.012max 0.02max 0.03max 0.02max 0.3Cr+Cu+Mo+Ni < 0.7


Mechanical properties of steel P235GH (1.0345)
Nominal thickness (mm):to 100100 - 150150 - 250
Rm - Tensile strength (MPa) (+N)360-480350-480340-480
Nominal thickness (mm):to 1616 - 4040 - 6060 - 100100 - 150150 - 250
ReH - Minimum yield strength (MPa) (+N)235225215200185170
KV - Impact energy (J) transverse, (+N)-20°
27

27
+20°
40
KV - Impact energy (J) longitud.,-10°
28

40
+20°
47
A - Min. elongation at fracture (%) (+N)24-25


Equivalent grades of steel P235GH (1.0345)
EU
EN
USA
-
Germany
DIN,WNr
Japan
JIS
France
AFNOR
England
BS
Italy
UNI
Belgium
NBN
Spain
UNE
China
GB
Sweden
SS
Poland
PN
Czechia
CSN
Finland
SFS
Austria
ONORM
Russia
GOST
Inter
ISO
India
IS
P235GH
A285
A285Gr.C
1.0345
ASt35
HI
StE255
SB410
SGV410
SPV235
SPV24
A37AP
A37CP
141-360
161Gr.360
Fe360-1KG
Fe360-1KW
FeE235
D37-1.2
E37-1.2
A37RCI
20
1330
1330-01
St36K
11364
11366
Fe37BP
St35KW
12k
P3
Grade1
Quality P235GH SCHEDULE 40 STANDARD STEEL PIPE FITTINGS SCH80  1.0345  ELBOW TEE CS REDUCING TEE for sale
