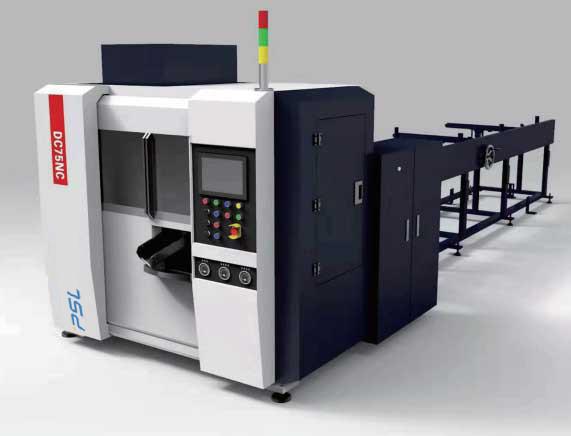

Full automatic Aluminum Bar Steel Bar Metal Cutting Intelligent CNC
Circular Saw Machine
Purpose of equipment,
Bar or profiles of Carbon steel, Stainless steel, aluminum, copper
materials fast cutting
Main technical parameters,
☆ Sawing specification: φ 75 mm □ 10 ~ 54mm
☆ Speed of saw blade: 50-200 RPM / min
☆ Power of main motor: 7.5 kw (frequency conversion)
☆ Main box: transmission speed ratio gear shaft / internal brake
system
☆ Specification of saw blade: φ 285mm X tooth width 2mmx1.75t
(standard)
☆ Feeding mode of saw blade: servo motor / linear slide group /
ball screw
☆ Feed servo motor: 2.0 kw
☆ Fixed length servo motor: 1.0 kw
☆ Setting accuracy: ＜± 0.15 mm
☆ Feeding scale of bed platform: servo motor / linear slide rail
group / ball screw
☆ Single stroke: 600mm (9 times of feeding can be realized)
☆ System oil pump motor: 1.5 kw
☆ Chip cleaning motor: 0.37 kw (standard scraper chain belt chip
cleaning machine)
☆ Oil mist cooling of saw blade: pneumatic liquid mixing spray
☆ Main shaft box and operation lubrication point: automatic oil
supply lubrication system
☆ Minimum tailings: 75 mm
supply scope of YS-75 circular saw
The equipment consists of the base of,
The main machine,
The high-precision output cutter head driven by the main shaft,
The feed system of the servo inclined linear guider,
The tungsten steel guider,
The saw blade cooling,
The hydraulic clamp group,
The fixed length feeding floating clamp group,
The hydraulic up pressing,
The hydraulic chip cleaning steel brush,
The scraper type automatic chip cleaning machine,
The feeding storage rack, the automatic feeding turning mechanism,
And the (PLC) human-machine interface to set the process parameters
and material conditions Detection system,
operation button switch and control cabinet,
Three-color working condition display lamp, safety guard, etc.
