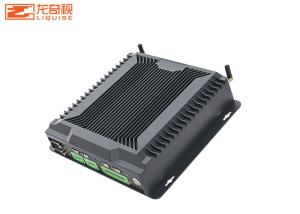

Fanless Silent Mini Host Computer Multi Serial Android / Computer
System Host
Industrial fully enclosed industrial computer, aluminum alloy
shell, fully enclosed design, metal grid heat dissipation, strong
configuration, rich interface design, all-weather operation,
multiple USB interfaces, synchronous / asynchronous dual display,
WiFi / Bluetooth support. It is widely used in industry and all
aspects of people's life.
1. Light and simple, no fan, quiet: both inside and outside, small
and powerful.
2. Product features: no fan, silent, industrial dustproof, heat
dissipation material, wireless Internet.
3. Lightweight Mini host, more powerful than you think, equipped
with core processor, fast and smooth.
4. Powerful performance, starting from the core: more powerful and
lower power processor, multi task easy switching, no stuck.
5. Connect to the TV for more HD and enjoy the 4K HD visual
experience immediately.
6. Support TV, monitor, projector: connect at will, take all sizes,
meet your many needs.
7. Power on self starting, intelligent and convenient: it is
suitable for the use environment that is not continuous, but needs
to keep indirect power on.
8. No fan design, no airflow: no fan design not only ensures the
stability, long-term use of dust-free access.
9. High end interface, military technology: rich high-end
interface, unrestricted in the use process, allowing expansion at
will.
| Production specifications |
| Color | silver |
| SIZE | 21cmx 20cm x5cm(Length, width, height) |
| Structure | all-aluminium Alloy fan-less enclosure for heat dissipation |
| Material Quality | Aluminium Alloy+Galvanized Steel |
| Memory | one DDR3L/1,.35 memory ,up to 8G( Optional) |
| 2.5Hard Disk | Capacity 500G(Optional) |
| CF | N/A |
| SSD | N/A |
| POWER | Standard 12V or 5V adapter(optional) |
| Installation mode | Desktop or wall mounted |
| Operating temperature | -10℃-60℃ |
| Storage temperature | -20℃-90℃ |
| Relative humidity | 5%-95% No condensation |
| Working Vibration | 0.5grms/5-500HZ/random/oper ating |
| Motherboard type | National Solid State Capacitor motherboard |
| Processor | Intel arena j1800/j1900 Core I3/I5/I7 |
| Graphics Cards | Collection inter HD key graphics cards |
| WEB | Collection 1x inter WG Gigabit network cards, Support Network
wake-up /PXE function |
| USB | 8*USB |
| Interface | 6*RS232 Serial port |
| Display | 1*VGA 1*HDMI |
| Audio | 1*MIC,1*Line-out |
| Expansion slot | 2*MINIPCIE(1*WIFI 1*MSATA) |
| Indicator Lights | Power indicator lights |
| System control | The power switch |
| wireless | 2*WIFI/3G SMA antenna (optional) |
