OPS computer for Interactive Touch Screen Monitors
Description of OPS computer
The integrated OPS computer is powered by Intel processors, brings
you all the power of a desktop computer built right into your
display.
It can help annotating on images, utilizing the whiteboard
application, and more have never been easier without needing to
download software to any of your own devices. Keep those programs
on your OPS computer and have them available for anyone to use.
All our 65", 75", 86" and 98" touch Screen Monitors have an OPS
Slot, meaning these OPS computers slide right inside the screen,
without the need for Power Adapters, USB or HDMI cables to connect,
making them the IT Departments best friend.

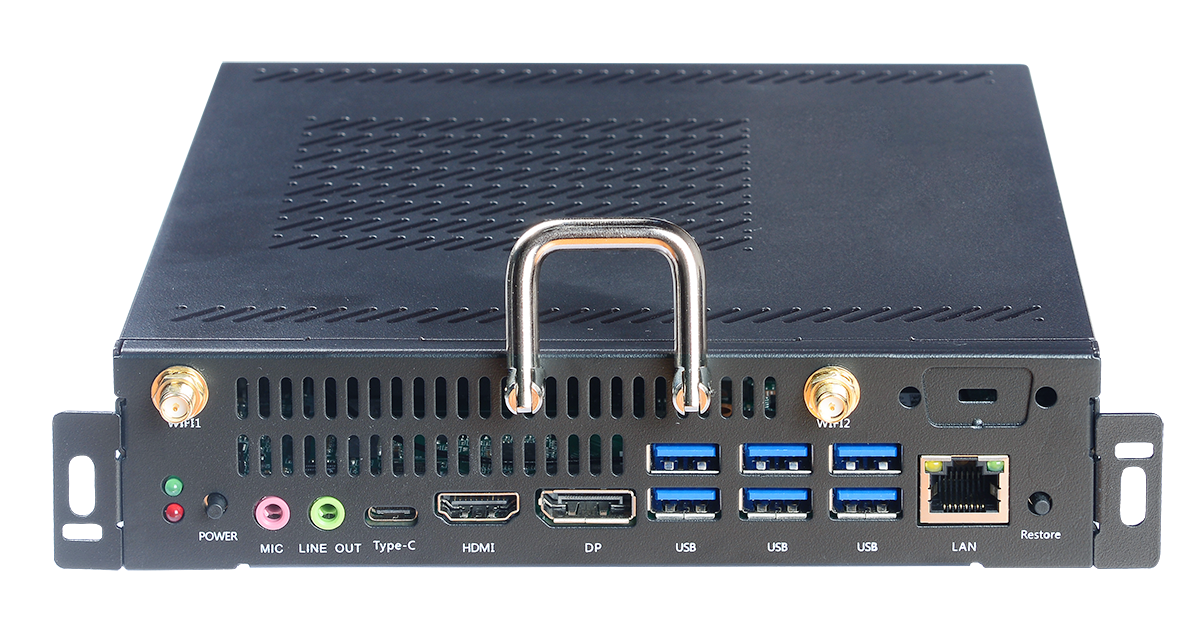

Specification for mini PC
| Description | | Front port |
| CUP | Support Intel core 10th generation platform processors, Optional I3
15 I7 | | Button | 1*Power Button |
| RAM | DDR4 2400MHz 4GB Memory MAX 32GB | | Reset | 1*Reset Button |
| Chipset | Intel H410 (Intel ® Core ™ 10th Gen) | | Indicator | 1*Power indicator |
| Graphic | Intel® UHD Graphics 630, support double display | | Display | 1*DP(2.0, 4K 60Hz),
1*HDMI(1.4), |
| Network | Realtek RTL8111H network card supports 10/100/1000M adaptive | | USB port | 6*USB3.0 |
Built-in 1*M.2 expansion slot, support WiFi(5.0GHz& 2.4GHz)
+Bluetooth(4.2) | | LAN | 1*LAN,1000M LAN |
| Audio | Realtek ALC883 hd audio 5.1 channel | | Audio port | 1*Audio-in, 1*Audio-out |
| Storage | Built-in 1*NGFF-M.2 PCIE interface supports NVME and SATA double
protocol;
1*SATA adaptive hard disk interface | | USB-Type-C | 1*USB-Type-C port (2.0) |
| USB | 6*USB3.0 | | | |
| COM | 1*TTL(80Pin) | | | |
| Slot of Processor | 1, SO-DIMM | | | |
| Watch Dog | Yes | | Back port |
| USB-Type-C | Yes | | Display | 1*HDMI (2.0, 4K 60Hz) |
| BT/ WLAN card | Yes | | Power port | N/A |
| OPS | Yes | | DC | 1*DC port(the outer
diameter is 5.5mm and the inner diameter is 2.5mm) |
| Electricity boot | BIOS Support | | | |
| Boot Configuration | 4GB and 120GB SSD | | | |
| Disk | MAX SSD, 1T | | | |
| | | | |
| Power | | | |
| Power adapter | 19V/4.7A | | | |
| | | | |
| | | Dimensions | 195*180*42mm(W*D*H) |
| Temperature & Humidity | | Weight | 1.2 KG(N.W.)/ 1.4 KG(G.W.) |
| Working Temp. | 0°C ~ 45°C | | Way of packing | Carton Packing |
| Storage Temp. | -40°C ~80°C | | Security Lock | N/A |
Working
Humidity | 10% - 95% @40°C non-condensing | | Heat-dissipating method | Mini Fan design |
Remark: For more details of the specification , please contact us
to know more detials.
Our company has a strong R&D team and our interactive screens
independently developed and produced, integrates LED display,
computer, speaker, electronic whiteboard, TV and other functions in
one.
15 years' experience on making OEM/ODM interactive screens and
digital interactive whiteboard products sold to more than 80 countires in the world.
Own developed Infrared technology
ODM/OEM Support
SKD support
Customized size
Easy for after-sales service
Shortest delivery time
Top quality in the field
Best Value
