18.5KW Polyamide PA66 Line Extruder Thermal Break Profile Extruding Machine

    Buy cheap 18.5KW Polyamide PA66 Line Extruder Thermal Break Profile Extruding Machine from wholesalers

    Buy cheap 18.5KW Polyamide PA66 Line Extruder Thermal Break Profile Extruding Machine from wholesalers
    • Buy cheap 18.5KW Polyamide PA66 Line Extruder Thermal Break Profile Extruding Machine from wholesalers
    • Buy cheap 18.5KW Polyamide PA66 Line Extruder Thermal Break Profile Extruding Machine from wholesalers
    • Buy cheap 18.5KW Polyamide PA66 Line Extruder Thermal Break Profile Extruding Machine from wholesalers

    18.5KW Polyamide PA66 Line Extruder Thermal Break Profile Extruding Machine

    Ask Lasest Price
    Brand Name : Polywell
    Model Number : PW-60/70/80
    Certification : SGS
    Price : $15,000- 18,000 / Set
    Payment Terms : T/T
    Delivery Time : 30-38 working days
    Supply Ability : 30 sets per month
    • Product Details
    • Company Profile

    18.5KW Polyamide PA66 Line Extruder Thermal Break Profile Extruding Machine

    18.5KW Polyamide PA66 Line Extruder Thermal Break Profile Extruding Machine

    Product Description

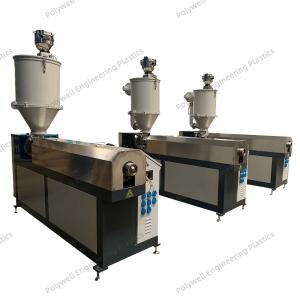

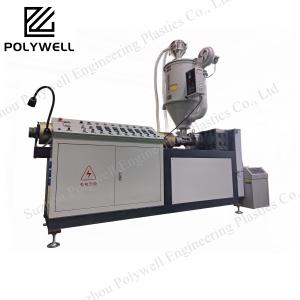

    Automatic extruding machine is for polyamide thermal break strips used in aliminun windows and doors. Many customer use thermal break aluminum profile to do big air conditioner to keep heat of cold air, then make use of energy saving. We provide quality extruder machine along with various molds and raw material-nylon granules, and also the subsequent technical assistance. This machine includes raw material auto loading device, heating system, thermal break strip extruder and strip drawing device

    Main Features

    1) High professionalization.

    2) High performances.

    3) Low maintenance cost.

    4) Quick delivery time.

    5) Provide set of technical assistance.


    This equipment is assembled with precision fittings such as bi-metal screw, screw barrel, imported frequency converter, imported temperature control meter and high-precision gear box. It is an excellent equipment for producing PA66 nylon extruding Profile.

    1. The main part of machinery adopts high-quality cemented carbide screw to ensure the high plasticization of PA66+GF25. The main engine is energy-saving and the speed is stable. The speed of the main and auxiliary machines can be synchronized.
    2. The die head is made according to German advanced technology, with short runner and no dead angle. The surface of the heat insulating strip is bright, with accurate tolerance and high strength.
    3. Using imported temperature control meter, one meter controls one temperature control system to control the temperature accuracy to ±1C°.
    4. Operating floor: stainless steel strip placement slot. Adjustable length 6 meters
    5. Winding machine: The torque motor control system is used to adjust the winding tension. 500 meters or 1000 meters per roll.
    6. The barrel is heated by stainless steel heater, withstanding 400 V.
    7. The professional dryer makes the material and the hot air convect evenly, and the drying uniformity is good. Its thermal insulation structure prevents heat dissipation and promotes energy saving.

    Parameters of Single Screw Extrusion Extruder

    ModelCapacityScrew diameterPowerVoltageLoading of Dryer
    PW-S6018-25kg/h60mm8kw380V75kg
    PW-S7020-35kg/h70mm16kw380V100kg
    PW-S8020-60kg/h80mm25kw380V150kg

    MaterialPA66GF25
    Production Speed8-14 cm/min
    Max Output60-80 kg/h
    Power380V, 50Hz or customized
    WaterRO water or Tap water

    Detailed Images


    Our Company and Service

    Before sales

    1. Introduce products in detail
    2. Recommend suitable solutions
    3. Provide with reference information

    During manufacturing

    1. Provide with layout and engineering conditions
    2. Inform the processing status
    3. Offer related documents

    After Sales

    1. Provide installation, commissioning and training
    2. Offer spare parts
    3. Provide with necessary technical support

    Packing & Delivery


    Packaging
    Weight
    2-10Ton
    Packaging Details
    The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
