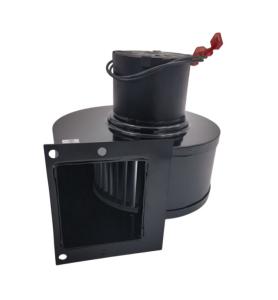

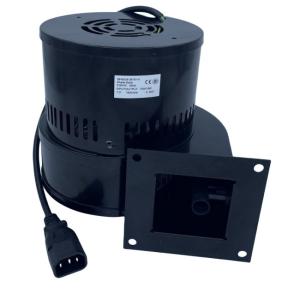

115W 115V High Efficiency Pellet Stove Convection Fan Motor Blower
This fan motor blower is a high air volume, high efficiency
designed, providing effective convection air movement within the
pellet stove for improved heat distribution and the functions as
the convection fan for the pellet stove, helping to circulate the
heated air throughout the room or space. It offers high efficiency,
reliable performance, and quiet operation. It helps to improve heat
distribution within the pellet stove, providing effective
convection air movement for enhanced comfort and warmth.
Quick Detail:
| MH MODEL: | MH6038-38298 | Product Name: | 115W 115V High Efficiency Pellet Stove Convection Fan Motor Blower |
|---|
| Rated Voltage/Frequency: | 115Vac/60Hz | Current(A): | 2.0 |
|---|
| Input Power(W): | 115W | Speed(RPM): | 2800 |
|---|
| Hi-Pot TEST: | 1500vac50hz,1Ma,1s | Bearing Type: | Ball Bearing |
|---|
| Insulation Class: | H | Agency: | UL |
|---|
| Thermally Protected: | TP | Wind Speed(m/s): | 15 |
|---|
| Air Volume(CFM): | 142 | Application: | Pellet Stove/Fireplace |
|---|
Production Features:

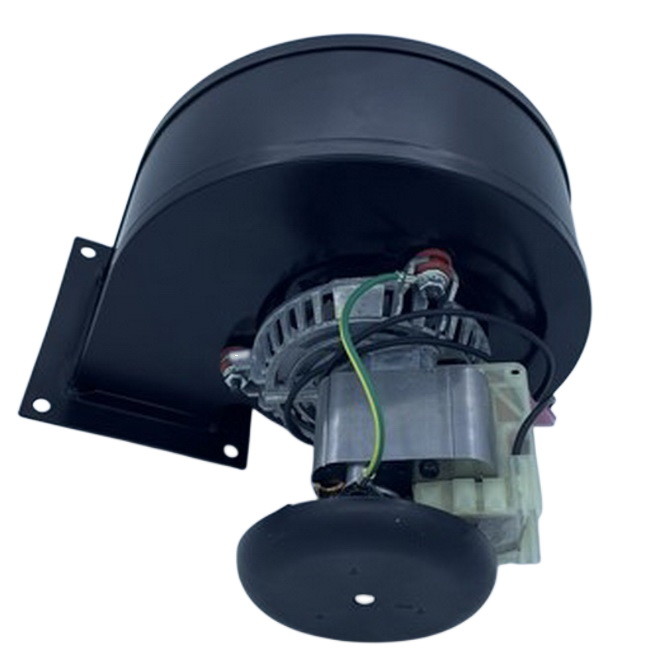

1.Be powered by C- frame shaded pole motor, high efficiency and
large volume.
2. Quiet ,Vibration-free motor design.
3. Thermally Protected Ball Bearing Design.
4. Complete assembly with gasket included.
5. Improves fireplace efficiency, Helps reduce costly energy bills,
Heats large rooms effectively,
6. Can handle up to 500°F air in housing.
7. Cooling Fan Design for the motor.
8. High volume and efficient blower fans are typically used in real
fireplaces to quickly increase the temperature of large areas in a
room.

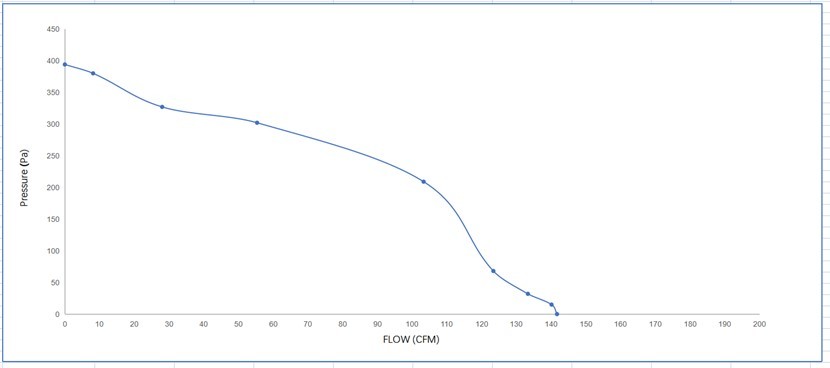

Air Flow Curve:
Shanghai MH Electric Co., Ltd, located in SHANGHAI, has been
specialized in the field of exporting Convecition Blower Air Fan,
cross flow fan, Fan Motor, Household appliance 3.3 inches moto3.3
inch motor , C frame, Squirrel Cage Blowers, Cooler Air motor for
several years. We have our own production facility and a strong
R&D team. We supply the core techniques service and professional guidance for
customers. And our products are exported to Americas, Middle East
and Asia. OEM or ODM is available. Welcome your business chat and
visit.
FAQ
Q1- What is the warranty of the motors?
The warranty is 18 months from the shipping date.
Q2- Can you design and make the motor as required?
Yes, we provide both ODM and OEM products.
Q3- What is your advantage?
Besides the good quality and the competitive price, we offer the
short lead time and quick response.
Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be
negotiated for long-term business.
Q5- How to get the accurate quotation?
The accurate price will be quoted after the specification and
mounting dimension of the motor are checked.
Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery
Q7- Do you have any MOQ for motors?
Usually our MOQ is one pallet. But we accept the small quantity for
the trial order.
Q8- Do you have other products?
Yes, besides the shade pole motors and blowers ,we also offer OEM
production for some industrial motors such as single phase AC
motor, 3 phase industrial motor, stainless steel motor, BLDC fan
motor etc... And we offer the sourcing service for other products
required.
