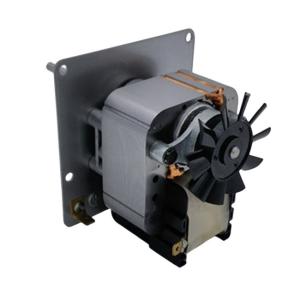

80W 120V 2.38" C Frame Motor AC Shade Pole For Air Conditional Condensate Pump

80W 120V 2.38" C Frame Motor AC Shade Pole for Air conditional condensate pump

The motor is specifically designed for air conditioning condensate pumps, which are responsible for removing condensate water from the air conditioning system. It provides stable and reliable power to ensure the proper functioning of the pump.

With a power input of 80W 120VV, it provides efficient and reliable performance which further enhances its functionality, allowing for smooth operation and reduced vibrations.

Product Parameter Sheet:

Stack Length (L) (mm/inch)	Voltage (V)	Frequency (Hz)	Speed(RPM)	Max Torque(Oz.in)	Max HP Output
21.88(7/8)	110-120V/220-240V	50/60	3000	7.5	1/45
25.40(1)			3000	9.3	1/40
28.123(1 1/8)			3000	11.2	1/30
34.93(1 3/8)			3000	16	1/25
38.10(1 1/2)			3000	18.5	1/18
50.80(2)			3000	24.8	1/13

Note: Listed are representative only for reference, can be customized according to customer requirements

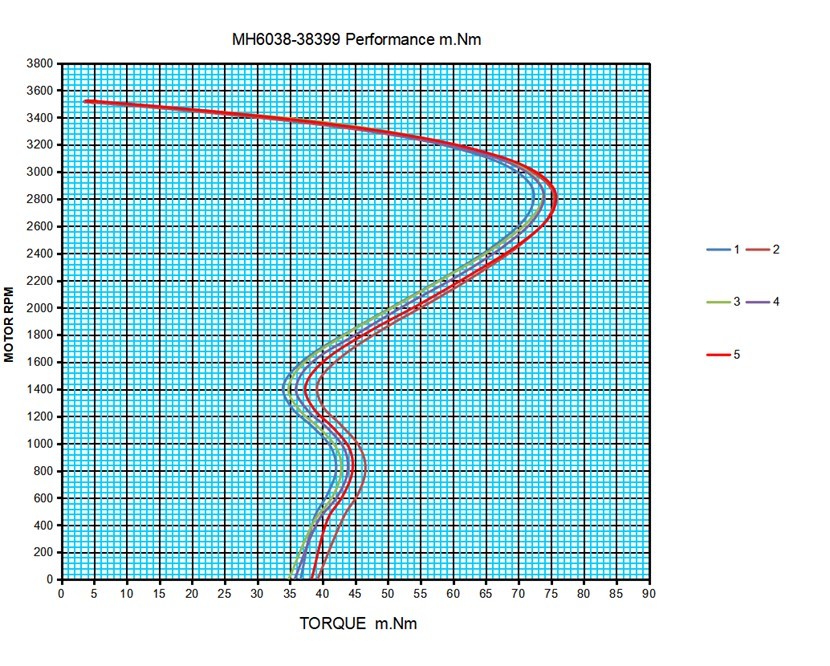

Performance Curve:

Production Feature :

1. 2.38" C-FRAME MOTOR

2. Heavy-duty steel and die-cast construction

3. Several shaft size options

4. Several mounting options available

5. Several lead configurations available

6. Ball bearing or Sleeve bearing available

7. Typically used in air conditional condensate pump

Prodcution Package :

Our technicians will design the most suitable motor packaging solution according to different motor structures, the length of the shaft, and the specific assembly and circulation requirements of customers, to meet the final use requirements of customers.

Welcome your business chat and visit. Shanghai MH Electric Co.,Ltd has several years of experience engineering and manufacturing C-frame motors and blowers.Our Team members have more than 18 years of rich experience in the motor field. MH can provide the most cost-effective C-frame motor and air moving solutions for customers.

Thank you very much for viewing this page
Sincerely looking forward to our cooperation!
