40KHZ Piezoelectric Ultrasonic Transducer Open Type 16mm Ultrasound Distance Sensor

    Buy cheap 40KHZ Piezoelectric Ultrasonic Transducer Open Type 16mm Ultrasound Distance Sensor from wholesalers

    Buy cheap 40KHZ Piezoelectric Ultrasonic Transducer Open Type 16mm Ultrasound Distance Sensor from wholesalers
    • Buy cheap 40KHZ Piezoelectric Ultrasonic Transducer Open Type 16mm Ultrasound Distance Sensor from wholesalers

    40KHZ Piezoelectric Ultrasonic Transducer Open Type 16mm Ultrasound Distance Sensor

    Ask Lasest Price
    Brand Name : AUDIOWELL
    Model Number : AW8T40-16OC01 & AW8R40-16OC01
    Payment Terms : T/T
    Supply Ability : 10000000PCS per year
    Delivery Time : 15 works days
    • Product Details
    • Company Profile

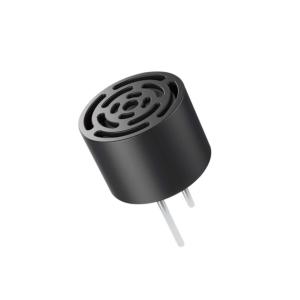

    40KHZ Piezoelectric Ultrasonic Transducer Open Type 16mm Ultrasound Distance Sensor

    Ultrasonic Transducer Open Type 40KHZ 16mm Ultrasound Sensor

    The ultrasonic transducer utilizes piezoelectric effect to convert electricity to mechanical vibration and form ultrasonic waves. Therefore no coil is contained and electromagnetic interference can be greatly reduced. The ultrasonic wave has excellent directivity and strong penetrability, and is interfered by neither the dust and electromagnetic fields in the air, nor the color and temperature at object surfaces.


    Features

    - Can measure obstacle with different shape and material

    - Cannot be influenced by ambient light

    - Has a large measuring range


    Specifications

    ModelAW8T40-16OC01 & AW8R40-16OC01
    Resonant frequency40.0±1.0KHz
    Sound Pressure Level≥115dB
    Sensitivity

    ≥-65dB

    Bandwidth2.5KHz
    Beam Angle55°typical
    Capacitance2100±20%pF
    Max. input voltage160Vp-p
    Operating temperature-20 ℃~+70 ℃
    Diameter16mm

    Applications

    - Distance measurement
    - Oxygen generator
    - Directional speaker
