XXQQG-100 Multi-Row Pneumatic Paste Filling Machine with Ceramic
Pump For Vertical Packing MachineQQG-100 Multi-Row Pneumatic Paste Filling Machine with Ceramic Pump
For Vertical Packing Machine
Characteristic of XQQG-100 Multi-Row Pneumatic Paste Filling Machine:
XQQG multi-row pneumatic paste filling machine is specially
designed for use with multi-row packaging machine.
The design is reasonable, the model is small, and the operation is
convenient. The pneumatic parts all use the pneumatic components of
Taiwan AirTac.
The parts in contact with materials are made of 316L stainless
steel and ceramics, which meets GMP requirements.
There is a handle for adjusting the filling volume, the filling
speed can be adjusted arbitrarily, and the filling accuracy is
high.
The structure is simpler and more reasonable, the accuracy is high,
and the operation is easier. It is suitable for medicine, daily
chemical, food, pesticide and special industries. It is an ideal
equipment for filling high viscosity fluids and flowing liquids.
Technical parameters of XQQG-100 Multi-Row Pneumatic Paste Filling Machine:
| Model | XQQG-12 | XQQG-25 | XQQG-50 | XQQG-100 |
| Pump head | High purity ceramics |
| Filling accuracy | ≦±0.25% |
| Filling range | 1-12ml | 2-25ml | 5-50ml | 10-100ml |
| Manufacturing speed | 0-40 Bottle/min |
| Size of Host Machine | Customized |
| Power | AC 220V 50-60Hz 500W |
| Air pressure | 0.4-0.6Mpa |

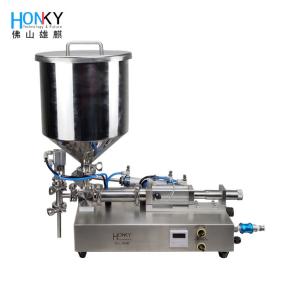

Product display of XQQG-100 Multi-Row Pneumatic Paste Filling Machine:
Advantage of our piston pump:
1.The working pressure, volumetric efficiency and total efficiency
are all the highest. Because the plunger and cylinder bore are easy
to process, the dimensional accuracy and surface quality can reach
very high requirements, so the matching accuracy is high, the oil
leakage is small, and the working pressure that can be achieved is
generally 20-40 MPa, and the highest can reach 100 MPa.
2.The transmittable power is the largest. As long as the plunger
diameter or the number of plungers is increased appropriately, the
flow rate will increase. High pressure and high current can
transmit high power.
3.Wide speed range.
4.Long service life and high power density. The main parts of the
plunger pump are under pressure, so that the material strength can
be fully utilized, so use long life, and low weight per unit power.
5.Good bidirectional variable capacity. Changing the stroke of the
plunger can change the flow rate, making it easy to make various
variable types.
About HonkyTech
Foshan Xiongqi Intelligent Technology Co., Ltd(HONKY) is a leading
manufacturer of all kinds of fluid filling solutions. The main
products contain the ceramic pump, ceramic pump filling line
series, ceramic pump spare parts or filling equipment, filling
solution ODM, etc. Our products have a good reputation for quality,
reliability, and efficiency.
