EN12966 VMS LED Passenger Information Displays P3 P4 P6 P8 P10mm
En12966 Traffic Vms Passenger Information Led Displays P3 P4 P6 P8
P10mm Full Color Variable Message Sign For Airport
Product Description
Passenger Information Display
Yaham PID(passenger information display) traffic system provides real-time train and bus arrival and departure information, operational and commercial messages to passengers via the display units in passageways at entrances, platforms and concourses of public traffic stations.It guides passengers through the station, designate
boarding locations and announce arrivals and departures. These passenger information display reinforce audio notifications while withstanding brake dust, vandalism and hard weather at platforms, stations, airports .
Specifications
Item | P6 | P8 | P10 | P12 | P16 |
Pixel pitch | 6mm | 8mm | 10mm | 12mm | 16mm |
LED type | SMD 3 in 1 | SMD 3 in 1 | SMD 3 in 1 | SMD 3 in 1 | SMD 3 in 1 |
Pixel density | 27777 pixels/m² | 15625 pixels/m² | 10000pixels/m² | 6944pixels/m² | 3906 pixels/m² |
Pixel configuration | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
Module dimension (Wx H) | 192x192 mm | 256×128 mm | 320×160 mm | 192x192 mm | 256×128 mm |
Module resolution (Wx H) | 16×8 | 16x16 | 32x16 | 32×32 | 32×32 |
Screen weight | 60kg/m² | 60kg/m² | 60kg/m² | 60kg/m² | 60kg/m² |
Viewing angle | H140°/V140° | H140°/V140° | H140°/V140° | H140°/V140° | H140°/V140° |
Best viewing distance | 6m~50m | 8m~80m | 10m~100m | 12m~100m | 16m~100m |
Brightness | 5,000~8,000 nits | 6,000~7,000 nits | 5,000~7,000 nits | 5,000~7,000 nits | 5,000~7,000 nits |
Gray scale | ≥14bit | ≥14bit | ≥14bit | ≥14bit | ≥14bit |
Colour | 68.7 billion color | 68.7 billion color | 68.7 billion color | 68.7 billion color | 68.7 billion color |
Color temperature | 5,500k~8,000k | 5,500k~8,000k | 5,500k~8,000k | 5,500k~8,000k | 5,500k~8,000k |
Refresh rate | ≥1920Hz | ≥1920Hz | ≥1920Hz | ≥1920Hz | ≥1920Hz |
Contrast ratio | ≥4000:1 | ≥2000:1 | ≥2000:1 | ≥2000:1 | ≥2000:1 |
Power supply | 100~240V | 100~240V | 100~240V | 100~240V | 100~240V |
Storage temperature | -20°C~60°C | -20°C~60°C | -20°C~60°C | -20°C~60°C | -20°C~60°C |
Operation temperature | -20°C~50°C | -20°C~50°C | -20°C~50°C | -20°C~50°C | -20°C~50°C |
Operation humidity | 5%~95%RH | 5%~95%RH | 5%~95%RH | 5%~95%RH | 5%~95%RH |
Input signa | DVI/VGA, RGBHV,Composite Video signal, S-VIDEO, YPbPr(HDTV |
Driving method | 1/8 dynamic | 1/4 dynamic | 1/2 dynamic | 1/2 dynamic | static |
Max. Power consumption | 600W/m² | 600W/m² | 600W/m² | 600W/m² | 600W/m² |
Avg. Power consumption | 240W/m² | 180W/m² | 180W/m² | 180W/m² | 180W/m² |

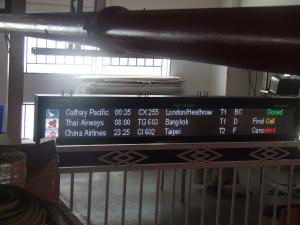

Product Display
Product advantge
Yaham PID is a highly customized product with color availability
including monochrome, full-color
and dual-color, it is also available in a variety of sizes that
could meet you requirements.
Smart monitor
Yaham PID can activate self-diagnosis and report health status,
monitor can identify equipment
health status, current message ID, current operating mode,
temperature, etc.
As a weatherproof product, Yaham PID is sealed for pressure washing
and harsh weather,
featuring an Ingress Protection rating up to 67.
Yaham PID is designed with protection against electromagnetic
interference making it more durable
and stable in guiding passengers in public stations.
Remote control
Messages and photos are capable of being edited and displayed
remotely. To deliver
more intense and readable information, brightness and also be
remotely controlled.
Application scenarios
