F Insulation Class DC Baocheng Relay In Switching Technology

    Buy cheap F Insulation Class DC Baocheng Relay In Switching Technology from wholesalers

    Buy cheap F Insulation Class DC Baocheng Relay In Switching Technology from wholesalers
    • Buy cheap F Insulation Class DC Baocheng Relay In Switching Technology from wholesalers

    F Insulation Class DC Baocheng Relay In Switching Technology

    Ask Lasest Price
    Brand Name : NBC
    Model Number : CE-12VDC-A25-P
    Certification : CQC
    Price : negotiable
    Payment Terms : T/T
    Supply Ability : 500k per month
    Delivery Time : 5-8days
    • Product Details
    • Company Profile

    F Insulation Class DC Baocheng Relay In Switching Technology

    F Insulation Class DC Baocheng Relay In Switching Technology

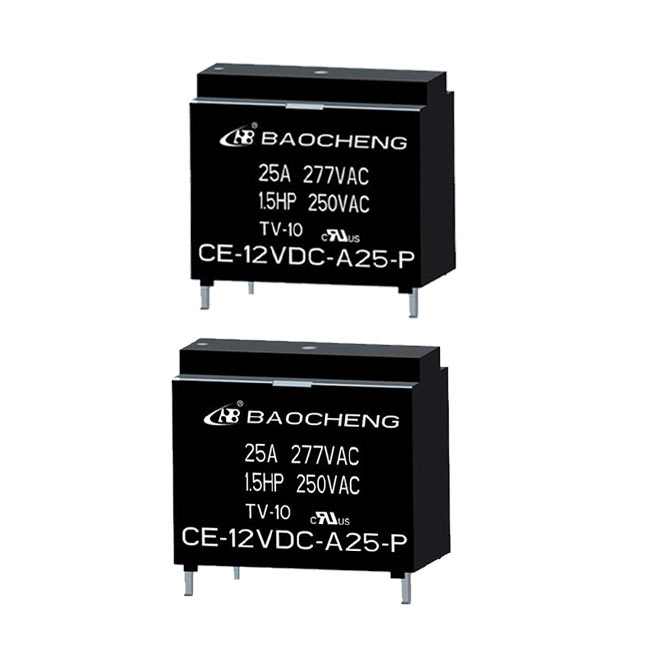

    BaoCheng CE12VDC Baocheng Relay A Revolution In Switching Technology


    BaoCheng Relay Description:

    Experience the power of the CE-12VDC-A25-P Relay with its impressive contact load of 1A25A/250VAC, 277VAC; 1.5HP 250VAC; TV-10. This substantial capacity enables the relay to handle power-intensive tasks with ease, making it a reliable choice for a wide range of applications. The CE-12VDC-A25-P Relay stands out with its ability to perform under a wide range of ambient temperatures. With an operational range from -40℃ to 85℃, the relay promises consistent and reliable performance under various environmental conditions.


    BaoCheng Relay Parmeter:

    Keywords:

    BaoCheng Relay

    Contact Form:

    1A

    Contact Material:

    AgSnO2

    Contact Load:

    1A25A/250VAC,277VAC;1.5HP 250VAC; TV-10

    Maximum Switching Current:

    25A

    Maximum Switching Power:

    6250VA

    Mechanical Durability:

    1*107OPS

    Electrical Durability:

    1*105OPS

    Insulation Resistance:

    1000MΩ

    Dielectric Withstand Voltage:

    4500VAC

    Action Time (Max.):

    20ms

    Release Time (Max.):

    10ms

    Ambient Temperature:

    -40℃ ~ 85℃

    Exit End Method:

    THT & QT

    Rated Voltage:

    (5-48)VDC

    Rated Coil Power:

    0.9W

    UL Insulation Class:

    Class F Insulation Class

    External Dimensions:

    30.5 X 16 X 23.5mm & 30.5 X 16 X 26.5mm


    BaoCheng Relay Applications:

    Power relays, essential elements in various systems, play pivotal roles in managing power supply. They are integral to household appliances like refrigerators and air conditioners, enabling efficient power usage. Automation systems, be it industrial or home-based, rely on relays for regulating power and ensuring smooth operation. In electronic equipment such as computers and televisions, they manage electrical flow, preventing potential surge damage. Stand-alone instruments, from musical to medical equipment, depend on power relays for reliable operation. Communication equipment like routers and satellites utilize these components to ensure stable power distribution, safeguarding communication integrity. Remote control devices, like drone controllers, use power relays for controlled, reliable power source. Lastly, environmental protection products leverage power relays for efficient and reliable operation, contributing to our sustainable future. Thus, power relays are a critical component across diverse applications, ensuring efficiency, safety, and reliability.
