Rotary Air Compressor Direct Driven Energy-Saving Factory Price
Rotary Air Compressor description
A rotary air compressor is a type of air compressor that uses a
rotary screw or vane to compress air. This type of compressor is
commonly used in industrial applications where a large volume of
compressed air is required.
Rotary Air Compressor Features:
1. Intelligent control system: Omni-directional seven-fold protection, under-voltage protection,
short-phase protection, reverse-phase protection, over-current
protection, temperature protection, overload protection,
high-voltage protection and triple early warning settings,
real-time control unit safe and efficient operation.
2. High-efficiency screw air end: Screw air end is the heart pad of air compressor, which directly
determines the efficiency and service life of the machine. LTC
compressor adopts internationally recognized advanced SAP rotor
profile, forged steel and German rotor heat treatment processing
technology, which has good tensile strength, yield strength, impact
toughness and fatigue resistance and other nodular cast iron screw
rotors. In comparison the efficiency difference is 15%. which is
more obvious after one year of use.
Technical Parameters:
Model |
KW |
HP | Air Delivery (m³/min) |
Weight (KG) |
Dimension(mm) (L*W*H) |
Outlet Diameter |
Noise dB(A) |
| 7bar | 10bar | 13bar |
| LFS-10 | 7.5 | 10 | 1.15 | 1.0 | 0.8 | 240 | 920*650*900 | G3/4° | 65±2 |
| LFS-15 | 11 | 15 | 1.65 | 1.5 | 1.2 | 300 | 1100*750*1050 | G3/4° | 65±2 |
| LFS-20 | 15 | 20 | 2.35 | 1.8 | 1.65 | 340 | 1100*750*1050 | G3/4° | 65±2 |
| LFS-30 | 22 | 30 | 3.62 | 3.3 | 2.6 | 550 | 1350*870*1120 | G1° | 68±2 |
| LFS-40 | 30 | 40 | 5.0 | 4.2 | 3.6 | 580 | 1350*870*1120 | G1° | 68±2 |
| LFS-50 | 37 | 50 | 6.5 | 6.0 | 5.3 | 700 | 1500*1000*1300 | G11/2° | 70±2 |
| LFS-60 | 45 | 60 | 8.2 | 7.3 | 6.5 | 800 | 1500*1000*1300 | G11/2° | 70±2 |
| LFS-75 | 55 | 75 | 9.8 | 8.5 | 7.3 | 1200 | 1850*1300*1550 | DN65 | 72±2 |
| LFS-100 | 75 | 100 | 13.5 | 11.8 | 9.5 | 1500 | 1850*1300*1550 | DN65 | 72±2 |
| LFS-120 | 90 | 120 | 15.5 | 13.5 | 12.1 | 1850 | 2350*1650*1800 | DN65 | 75±2 |
| LFS-150 | 110 | 150 | 19.7 | 17.6 | 15.2 | 1900 | 2600*1650*1800 | DN65 | 75±2 |
| LFS-175 | 132 | 175 | 23.2 | 21.3 | 19.5 | 2600 | 2600*1650*1800 | DN80 | 78±2 |
| LFS-200 | 160 | 200 | 25.5 | 22.5 | 20.1 | 2800 | 2800*1898*1695 | DN80 | 82±2 |
| LFS-250 | 185 | 250 | 30.1 | 27.3 | 25.2 | 3500 | 3100*2150*2000 | DN100 | 82±2 |
| LFS-300 | 220 | 300 | 40 | 36.8 | 29.5 | 4500 | 3100*2150*2000 | DN100 | 82±2 |

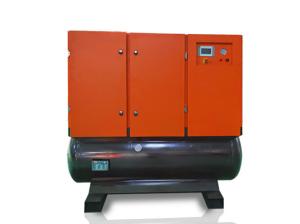

Machine Image:
Rotary Air Compressor Application
Pneumatic tools: Rotary air compressors provide the high-pressure
air required to power pneumatic tools such as drills, sanders, and impact wrenches.
Manufacturing processes: Rotary air compressors are used in
manufacturing processes such as metalworking, food and beverage
production, and chemical processing to power equipment and tools.
Automotive repair: Rotary air compressors are used in automotive repair
shops to power tools such as impact wrenches, paint sprayers, and air ratchets.
Factory Overview:
LTC Compressor's rotary air compressor with ditrect driven has many
strengths compared with other brands in China. Advanced
microcomputer PLC fully automatic programmable, protection device
control system. English control system, easy to operate, can work
automatically 24 hours without supervision. The remote visual
function can be realized through mobile APP. And the real-time
operation of air compressor can be seen at a glance even thousands
of miles away.
FAQ
1.Why customer choose us?
Shanghai LTC Compressor Co., Ltd specializes in Rotary Screw Air
Compressor, integrating R&D, production, sales and service.
High-level quality control and years of exporting experience help
us win trust and loyalty of our customers around the world. Warmly
welcome your inquiries and orders for quality test, more favorable
sales conditions will be provided to support you expand local
market if long-term partnership can be established.
2.Are you a manufacturer or trading company?
We are a professional manufacturer in China with over 25 years
experience in air compressing solutions. We have 2 factories in
Shenzhen, and our overseas business department is in Minhang
district , Shanghai. OEM&ODM service is accepted.
3.What’s your delivery time?
For standard machines, we can deliver within 3-5 days. For
customized machines or urgent orders, please contact our sales in
advance.
4.How long is your air compressor warranty?
One year for the whole machine and two years for screw air end,
except consumable parts such as air filter, oil filter, oil
separator and precise filter elements.
5.How does your factory do regarding quality control?
International leading processing equipment and advanced
manufacturing technology ensure LTC screw compressor with high
efficiency, low noise, low power consumption, high reliability.
6.How long is the lifespan of your air compressor?
Generally, more than 10 years.
7. What's price term?
FOB, CIF, EXW, all are available, according to your requirements.
We have long-term cooperative shipping agent in sea shipping, much
more professional and can help you save shipping cost.
8. What's payment term?
T/T, L/C, D/P, Western Union, Paypal, Credit Card, and etc. Also we
could accept USD, RMB, Euro and other currency.
9.How about your after-sales service?
(1) Installation and commissioning online instructions.
(2) Well-trained engineers available for overseas service.
(3) Worldwide agents and after-sales service available.
