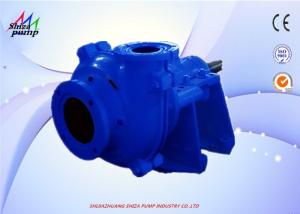

    100 D - L Light Weight Sewage Pump Mine - Specific Slurry Sludge Pump

    Ask Lasest Price
    Brand Name : SHIZA
    Model Number : 100 D - L
    Certification : ISO
    Price : based on quantity
    Supply Ability : 200sets monthly
    Delivery Time : 15days
    MOQ : 1 set
    • Product Details
    • Company Profile

    100 D - L Light Weight Sewage Pump Mine - Specific Slurry Sludge Pump

    100 D - L Light Weight Sewage Pump Mine - Specific Slurry Pump Sludge Pump

    Product overview for 100D-L model slurry pump

    The L-type light slurry pump is a cantilever and horizontal double-shell axial suction centrifugal slurry pump. The pump's discharge port can be installed at a different angle from 45°C and rotated at eight different angles.
    The pump body of the L-type light slurry pump has a replaceable wear-resistant metal lining, and the over-flow parts such as the impeller, the sheath and the guard plate are all made of wear-resistant metal.
    Compared with heavy-duty slurry pumps, the pump has high speed, small volume and light weight, and is suitable for conveying fine particles, low concentration slurry or corrosive slurry. The weight concentration of the transport slurry is generally not more than 30%, and can also be used to transport high concentration and low abrasive slurry.


    Type meaning of 100D-L model slurry pump


    Type meaning for 100D-L model slurry pump

    100D-L(R)

    100Diacharge Diameter (mm)
    DSupport Type
    LLight Model Low abrasion slurry pump
    RNatural Rubber Liner


    Quality control for 100D-L model slurry pump

    Inspection Equipment
    1. Inspection and Detection
    With various inspection and detection instruments ,like three-coordinate measuring instrument ,metallographic microscope, direct reading spectrometer ,Brinell hardness meter ,Vickers hardness meter, carbon and sulfur analyzer and other detection equipment,we can carry on the chemical composition analysis ,physical properties test ,coordinate measurement for various steel&steel materials
    Complete pump set inspection
    We have performance testing platform for each batch pump inspection before delivery
    Quality control system for each set slurry pump

    Purchasing raw material

    ra

    1. Strict rules and procedures to choose the raw material supplier
    2. Each batch raw material will be tested by quality control department

    C casting of parts


    1 .Melting:Chemical element analysis for raw material before and after stove .
    2.Moulding :Strict sand moulding qualified before iron liquid pouring for casting
    3. Cleaning semi-finished parts sand :Strict inspection on the appearance and size qualified before storage.



    Machining of
    slurry pump

    1. Self -inspection and inspection between different steps.
    2. First part inspection
    3. Procedures inspection
    4..Inspection before storage the mining slurry pumps

    A

    Assembling of

    sl slurry pump

    1. Inspector tracks the whole process of assembly of slurry pumps
    2. Slurry Pump pressure inspection and fillout the testing table
    3. Painting inspection
    4. Performance testing and fillout the testing table
    5. Packing inspection of slurry pump
    6. Issue quality certificate

    L Series Performance Chart


    typeMax.ClearWaterPerformanceImpellerApplication
    CapacityHead/mSpeed/rpmEfficiencyNPSHNosDiameter
    20 A-L7.52.34-10.86-371400-3000303.5-84152.4-Ball mill discharge
    50 B-L1516.2-769-441400-2800553.5-85190-Coarse tailings
    75 C-L3018-1514-45900-2400574229-Rod mill discharge
    100 D-L6050-2527-46800-1800604305-Coal washing
    150 E-L120115-48612-51.5800-1500654381-Wet crushers
    200 E-L120234-9109.5-40600-1100644457-Phosphate matrix
    250 F-L120396-1425500-800775550-Minerals concentrate
    300 S-L560468-25388-60400-950795653-Lime grinding
    350 S-L560650-280010-59400-840815736-FGD waste water
    400 ST-L560720-33127-51300-700805825-Flotation
    450 ST-L5601008-43569-48300-600805933-Process chemical
    550 TU-L12001980-790010-50250-4758651213-Pulp and paper

    Selection & Performance Chart
