- Material: Heavy galvanized mild steel carbon wire with extremely
high tensile strength, a green PVC coated finish or other treatment
also offered.
- Horizontal wires: 2.50 mm, Tensile strength: 1200–1400 N/mm2
- Vertical wires: 2.50 mm, Tensile strength: 820–970 N/mm2
- Node wires: 2.24 mm, Tensile strength: 400–550 N/mm2
- Zinc coating: 230–350 g/m2.
Fixed knot field fencing hot dipped and electro galvanized
Field fencing height:1.8m
Materials: Mild steel carbon wire, zinc coated.
Fixed Knot Field Fences 1.8meter
Materials: Electro galvanized iron wire
Galvanized High Tensile Woven Wire Fixed Knot Fencing
Heights of 4 and 5 minimum 12.5 gauge for Canada
6' high graduated fence with fixed knot, 200' roll length
28 Strand Galvanized mesh with a fixed knot
Height: 2.5m, 3 m
Number of horizontal wires: 28 pcs.
Fixed Knot Fence, with a graduated mesh
Hot dip galvanized wire 60-80gms zinc.
Length Fence 50- 50m
Fence 155-190-100m
Fixed Knot Cattle Fence - Field Fence for Cattles
Common sizes:
Height: 42", 49", 48"
Vertical spacing: 6", 12"
Fencing mesh roll length: 330', 660'
Wire gauge applied: 12.5 gauge
Fixed Knot Fence for Horses
Finish: HDG with Class 3 galvanized coating.
Fence height: 48", 61inch
Vertical spacing: 3inch
Roll length: 100 feet or 200 feet
Common gauge: 12.5
Fixed Knot Fencing for Deer
Horizontal wire: 20mm
Fence height: 96 inch
Spacing between vertical wires: 6 inch
Roll length: 330 feet
Horizontal wire: 20mm
Fence height: 96 inch
Spacing between vetical wires: 12 inch
Roll length: 330 feet
High Tensile Field Fence, Galfan ZA Coated, UV stabilized, for
Farms
Fixed Knot High Tensile Fence for Buffalo Farms and Other Animals
Finish: Zinc aluminum coating and painting
Material: UV stabilized high tensile steel
Fence height: 26 inch, 32inch, 47inch, 78inch
Mesh netting roll length: 330 feet
Top wire: 12.5 gauge, 10.5 gauge
Bottom wire: 12.5 gauge or 10.5 gauge
Filler wire: 14 gauge, or 12.5 gauge

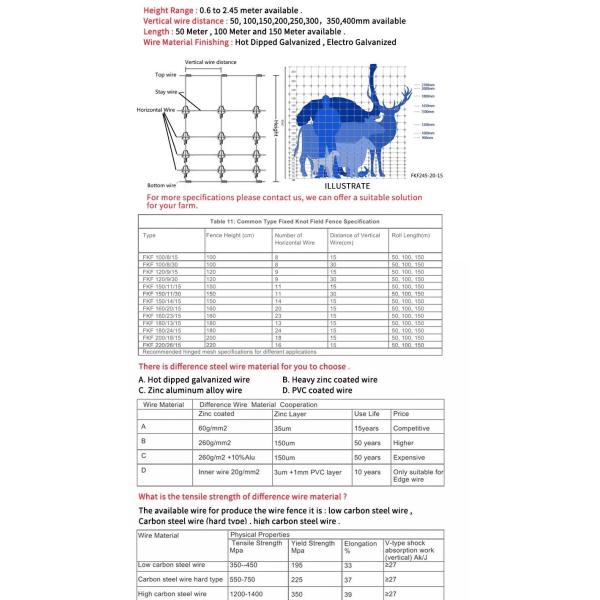

Table 1: Popular Specifications of Fixed Knot Fence| Types | Fence height (cm) | Number of horizontal wires | Distance of vertical wires (cm) | Roll length |
|---|
| EZFK100/8/15 | 100 | 8 | 15 | 50 m, 100 m, 150 m |
|---|
| EZFK100/8/30 | 100 | 8 | 30 | 50 m, 100 m, 150 m |
|---|
| EZFK120/9/15 | 120 | 9 | 15 | 50 m, 100 m, 150 m |
|---|
| EZFK120/9/30 | 120 | 9 | 30 | 50 m, 100 m, 150 m |
|---|
| EZFK150/11/15 | 150 | 11 | 15 | 50 m, 100 m, 150 m |
|---|
| EZFK150/11/30 | 150 | 11 | 30 | 50 m, 100 m, 150 m |
|---|
| EZFK150/14/15 | 150 | 14 | 15 | 50 m, 100 m, 150 m |
|---|
| EZFK160/20/15 | 160 | 20 | 15 | 50 m, 100 m, 150 m |
|---|
| EZFK160/23/15 | 160 | 23 | 15 | 50 m, 100 m, 150 m |
|---|
| EZFK180/13/15 | 180 | 13 | 15 | 50 m, 100 m, 150 m |
|---|
| EZFK180/24/15 | 180 | 24 | 15 | 50 m, 100 m, 150 m |
|---|
| EZFK200/18/15 | 200 | 18 | 15 | 50 m, 100 m, 150 m |
|---|
| EZFK220/26/15 | 220 | 16 | 15 | 50 m, 100 m, 150 m |
|---|
- Strong. The fixed knot structure with strong wire can withstand
strong impacts.
- Flexibility. The flexibility wires makes it to strong impacts, the
mesh can return to its original position and maintaining its
tension.
- Long life. The triple galvanized provides high corrosion
resistance, high durability and long life even in adverse
conditions.
- Easy install. Due to its high stiffness, it allows the posts every
7 meters, offering extraordinary savings in both material and
installation time.
- Wide range of applications. For wild cattle fences, horses fencing,
big game hunting grounds, perimeter fencing, plantations fence,
hunting fencing.
- Galvanized standard. A high-wire base triple galvanized resistance.
- Galfan galvanized Composition = 95% Zinc + 5% Aluminium.
- Fixed knot fence with solid lock construction is mainly used as
field fencing to protect cattle such as deer, horse, cow, sheep and
goats, and also used as grassland fence and farm fencing. It is
also called game fencing.A roll of zinc coating fixed knot fence
- This extra strong field fences are ideal for keeping wildlife
living deer and other animals away from forest crops and garden
plants.
