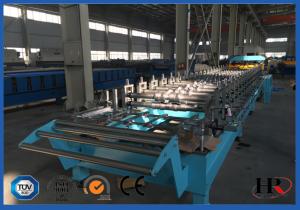

Why choose this aluminum roof tile making machine?
1. Designed by 15 years experienced R&D members with lifetime seivices
2. Introduced Mitsubishi PLC with touch screen.
3. Need only one worker (minimum) to operate
4. Roller cover with 0.05mm chrome, ensure lifetime >10years
5. Cr12 mould steel cutter with quenched treatment. Blade with heat treatment.
6. Product cut-to-length.
7. We choose Mitsubishi PLC from Japan.
With touch screen mode, let your workers enjoy the easy operation;
With auto working mode, let your workers free their hands!
Parameters
Aluminum Roof Tile Making Machine (ZYYX27-190-950) |
| Item | Specification |
Raw Material | Type | Pre-painted steel coil |
| Thickness(mm) | 0.4-0.6 |
| Yield strength(mpa) | 235-345 |
| Roller material | 45# steel , coated with Chrome |
| Shaft for rollers | Solid shaft with 72mm,processed with cylindrical grinder |
| Forming speed(m/min) | About 15-20 |
| Output speed(m/min) | 3-4 |
| Speed adjusting mode | Mitsubishi frequency transformer |
| Roller drive | Decelerating motor + Chain drive |
| Cutting mode | Hydraulic cutting |
| Cutter material | Cr12 mould steel |
| Length measurement | Nemicon Encoder |
| Control mode | Mitsubishi PLC |
| Operating mode | Button + Mitsubishi Touch screen |
| Main motor power(kw) | 5.5KW |
| Total power(kw) | 11KW |
Components
| Decoiler (manual decoiler and hydraulic decoiler for option) | 1set |
| Feeding & guiding device | 1set |
| Main roll forming machine | 1set |
| Hydraulic pressing system | 1set |
| Hydraulic cutting system | 1set |
| Controlling system | 1set |
| Run out table | 2pcs |
We care about your concern
Delivery: in only 5-8 weeks
Container was sealed
Machine installing and training: engineer overseas sevices
Inspecting and testing machine: before shiping
We care about the "special"
Can not find the machine you need? Why not customize it!
We have: 12 years experience in making roll forming machine
15 years experience engineers
FAQ:
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are
optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas
services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control
complies with ISO9001. Every machine has to past testing running
before it's packed for shipment.
5) How can I trust you that machines pasted testing running before
shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome your visit us and test machine by yourself in our
factory.
6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.
7) Q: Will you deliver the right goods as ordered? How can I trust
you?
A: Yes, we will. We are Gold supplier of Made-in-China with SGS
assessment (Audit report can be provided).
