Kgps Medium Frequency Power Supply Heating Induction Equipment
Brife Introduction of Kgps Medium Frequency Power Supply Heating Induction Equipment:
KGPS Series Thyristor transducer is a quiescent device to change
Three phase alternating current energy into Single phase
Intermediate Frequency electric energy. This kind of device is
apply to induction diathermy,melting,quenching.
Technical Parameter of Kgps Medium Frequency Power Supply Heating
Induction Equipment:
| KGPS- 100/ 1-8 | KGPS- 160/ 1-8 | KGPS- 250/ 1-8 | KGPS- 350/ 1-8 | KGPS- 500/ 1-8 | KGPS- 750/ 1-8 | KGPS- 1000/ 1-8 | KGPS- 1500/ 1-8 | KGPS- 2000/ 1-8 | KGPS- 3000/ 1-8 |
| Rated output power | 100 | 160 | 250 | 350 | 500 | 750 | 1000 | 1500 | 2000 | 3000 |
| IF Frequency (Khz) | 1-8 | 1-8 | 1-8 | 1-8 | 0.4-4 | 0.4-1 | 0.4-1 | 0.4-1 | 0.4-1 | 0.4-1 |
| Rated input voltage (v) | Thress phase 380V 50Hz | Thress phase 660V |
| Rated input current (A) | 180 | 280 | 440 | 610 | 880 | 1310 | 1016 | 1524 | 2032 | 3048 |
| Rated direct voltage (V) | 500 | 870 |
Rated direct Current (A) | 220 | 343 | 539 | 747 | 1078 | 1600 | 1245 | 1867 | 2490 | 3735 |
| Rated output voltage(v) | 700 | 1200 |
| Main D.C.current(A) | 250 | 380 | 550 | 800 | 1100 | 1700 | 1400 | 2000 | 2650 | 3900 |

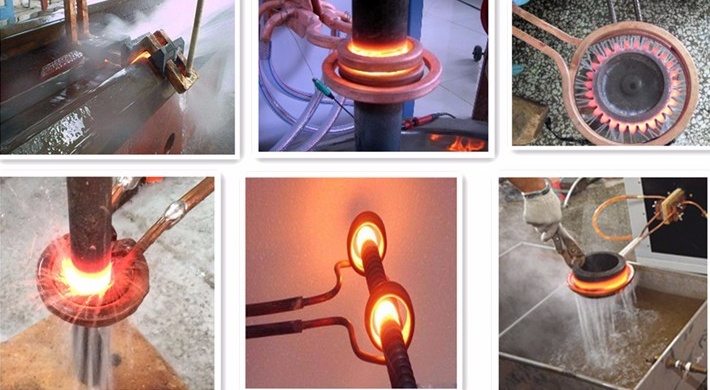

APPLICATIONS of our Kgps Medium Frequency Power Supply Heating Induction Equipment:
A. Heating (hot forging, hot fitting and smelting):
B. Heat Treatment (surface quench):
It is mainly aims to change the rigidity of the metal materials
through the heat treatment to work pieces. Detail applications are
stated as follows:
C. Welding (braze welding, silver soldering and brazing)
It mainly aims to melt the solder by heating it to a certain
temperature for the purpose of connecting two types of metals of
the same material and different
D. Annealing (tempering and modulation)
Main control circuit board as the main part of the machine, we made
in their research and development, and adopted by the company and
built since the automatic welding and testing equipment to ensure
that each set of machine can achieve the best effect, and we have
main control board in stock lone time, can satisfy the parts supply
problems.
Induction coils
The induction coil inside the furnace body is treated with two
insulations. The first spray of high temperature insulation paint.
The second round of glass fiber tape. The service life of the
treated furnace lining and induction coil will increase by more
than two times.
Features of the our Kgps Medium Frequency Power Supply Heating Induction Equipment :
• Easy operation:
A full time operator specially for power supply is not needed
.There is only one switch for turning on or off and one power
adjustment knob. After started, the only thing that needs to be
done is rotating the power adjustment knob to the largest location,
others are controlled by the device itself.
• Safety protection functions of induction melting furnace:
1. The main circuit and short circuit protection
2. SCR overvoltage protection
3. Main circuit phase fault protection
4. The main circuit phase loss protection
5. Low water pressure protection
6. SCR overcurrent protection
• Highly reliable electrical control board
In the operation, the 3-phase current is balanced. Due to the
advanced design, the 3-phase power supply's sequence could be
connected randomly. Moreover there is no limit to connect to
capacitor cabinet and furnace. All of these jobs can be judged to
be adapted automatically by the device itself. It makes the
installation and maintenance very easily.
Features of the KGPS Kgps Medium Frequency Power Supply Heating Induction Equipment:
Suitable for heating medium or small size part
IGBT inversion technology
LC series resonance
Reduced Operating Cost
High energy conversion over 97.5%
High power factor - never less 0.95
Energy saving 15%-30% compared with SCR technology
High efficiency over 90%; 100% duty cycle
Be started up 100% at any load
Environment friendly
Can equipped with infrared temperature control system(optional)
Can equipped with CNC or PLC controlled Mechanical fixture for
hardening application (optional)
Can equipped with external chiller(optional)
Features of the KGPS Kgps Medium Frequency Power Supply Heating Induction Equipment:
• The furnace body is made by thick aluminum alloy shell to reduce
the magnetic leakage and ensure furnace body strength.
• The thick T2 standard tube is taken use for induction coil to
provides high melting efficienccopper y.
• Open type furnace hearth reduces moisture,and design cooling
rings on the bottom, which extend the furnace lining life time.
• The titling is controlled by reducer gear box. The remote control
panel can set the furnace in any position when titling. The max
tilting angle is 95 degrees.
