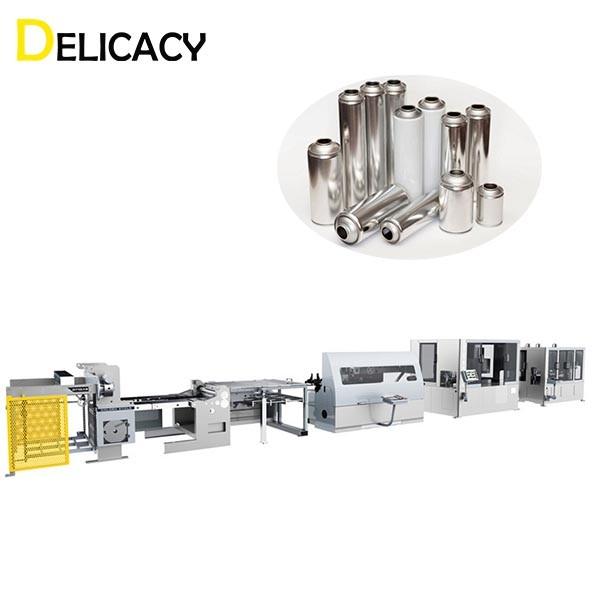

Aerosol Can Making Machine For Small Tin Can Manufacturing Multifunctional

    Buy cheap Aerosol Can Making Machine For Small Tin Can Manufacturing Multifunctional from wholesalers

    Buy cheap Aerosol Can Making Machine For Small Tin Can Manufacturing Multifunctional from wholesalers
    • Buy cheap Aerosol Can Making Machine For Small Tin Can Manufacturing Multifunctional from wholesalers

    Aerosol Can Making Machine For Small Tin Can Manufacturing Multifunctional

    Ask Lasest Price
    Brand Name : Delicacy
    Model Number : DP-83
    Certification : CE
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 15SETS/Month
    Delivery Time : 30-90
    • Product Details
    • Company Profile

    Aerosol Can Making Machine For Small Tin Can Manufacturing Multifunctional

    Aerosol Tin Cans Making Machine For 3 Piece Small Tin Can Making Machine Line
    Can add pre-necking station, suitable for various tinplate , especially for DR material . Vertical design makes it easy to connect with other machine. Equipped with Recyclable central lubricating system . Use inverter for various speed control Fully automatic control system. Multi-safety design for machine and operator’s safety. No-can, no-cover protection system. Equipped with two separating knives on cone and dome magazine. With safety cover and automatic height adjuster.
    Function
    Dia. range
    Height range
    Max speed
    Pre-necking ( For DR material)
    45-73mm
    90-320mm
    400CPM
    Necking + flanging
    45-73mm
    90-320mm
    400CPM
    seaming
    45-73mm
    90-320mm
    400CPM


    Capacity:
    Tinplate thickness
    Diam of copper wire
    Welding speed
    Welding frequency
    500 cans/min
    0.16-0.30
    1.38mm or 1.50mm
    9-57m/min
    100-650hz
    Can Dia
    Can height
    Can height
    Overlap
    Transformer Power
    φ52-153
    52-99
    60-320mm
    0.4mm
    150Kw
    Side stripe powder coating system
    Characteristics:
    Steady even application Clean and clear side stripe No powder dropping and splashing No environmental pollution, No powder leaking
    It works based on the SPWM technology, generating vortex heating by A/C on the welding seam area for curing . Induction oven is characteristic with energy saving , environment-friendly & safety. It fits different can sizes and different speed of production line.
    Output frequency
    Diameter
    Max power
    Cooling type
    20-30Khz
    52-180mm
    1.5Kw/ heating coil
    Air cooling / water cooling


    Non-destructive testing

    Imported European high precision transducer, more reliable Equipped with temperature compensation system to improve accuracy With more humanized interface for operation With automatic height adjustment to make changeover more easy



    Our Services:

    1. Warranty: One year after shipment.

    2. Delivery Time: 15-30 working days after receiving the advanced payment.

    3. Power:3 phase 4 wire, 380V, 50Hz(or according to your requirements)

    4. Installation and commissioning

    Before installation,we will provide machine layout drawing with dimensions, total power, single power, power interface, water &air input and output position, total water consumption. After the machines arrived and have taken seat,you must connect the water and electric and air into the machines, then we shall send 1-2 technicians to install the production line.
