    3 In 1 Automatic Hydraulic Metal Decoiler Sheet Opening Straightener Feeder And Uncoiler

    Ask Lasest Price
    Brand Name : OEM
    Certification : CE ISO
    Price : Negotiable
    Delivery Time : 5-15 DAYS
    Payment Terms : Negotiable
    Supply Ability : Negotiable
    • Product Details
    • Company Profile

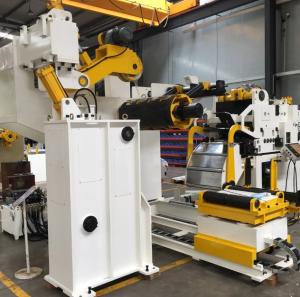

    3 In 1 Automatic Hydraulic Metal Decoiler Sheet Opening Straightener Feeder And Uncoiler

    Hydraulic 3 In 1 Automatic Hydraulic Metal Decoiler Sheet Opening Straightener Feeder And Uncoiler


    Automotive industry: The automotive industry is a major user of LPG decoiler straightener feeders. The machines are used to process metal strips for parts such as brackets, brackets, and clips. The accuracy and consistency provided by the machine are particularly important in the automotive industry, where safety and quality are critical.

    Aerospace industry: The aerospace industry also uses LPG decoiler straightener feeders to process metal strips for parts such as frames, brackets, and housings. The machines can handle a wide range of metals, including aluminum, titanium, and stainless steel.


    A Typical Combined Straightener Feeder has following properties (Depending on the customer request):

    Max strip width:1200 mm
    Stock Thickness:1.2-4.0 mm
    Feeding pinch rolls:2
    Roll Diameters:100 mm
    Feeding Speed:Max 65 m/min.

    ELECTRICAL INFORMATION

    Operating Voltage:380 V AC
    Control Voltage:24 V DC 3A max.
    Control output:Programmable 7 set of no-nc relay output (250 V AC, 5A)

    MECHANICAL INFORMATION

    Alloyed, hardened and ground feeding rolls material
    Synchronized driving mechanism for top and bottom rolls
    Special design of bearing mechanism
    Synchronized driving mechanism for straightening rolls
    Encoder cylinder and driving mechanism

    What Service Do We Provide?

    Pre-sales Service: Customized design of the overall production line scheme according to customer site, environment, output, budget, and product requirements
    On-sale Service: Tracking the manufacturing progress of the whole line of equipment, quality control, product proofing and trial production
    After-Sales Service: Equipment installation, testing, training, project acceptance
    Maintenance Service: Regular inspection and maintenance of the entire line, providing genuine accessories, 24-hour online service

    FAQ
    Q: What size of LPG cylinder your machine can produce?
    A: 6kg, 12kg,15kgs and 50kgs LPG cylinder for cooking and other size according customers' requirement.

    Q: Can you design machines according LPG cylinder technical drawing?
    A: Sure, please send your technical drawing to us.

    Q: What are the benefits to choose your machines?
    A: Our machines are strong and reliable for long term industrial manufacturing

    We need to know following information to quote you correct machines:
    1. Technical Drawing of the cylinders you want to make?
    2. What size of cylinder you want to produce?(such as 6kg, 12kg)
    3. What diameter and thickness of the cylinder you want to make?
    4. Are you new in this area or you already have some machines in the workshop?
    5. Capacity you require, i.e. how many pieces and sizes you want to make per day?
