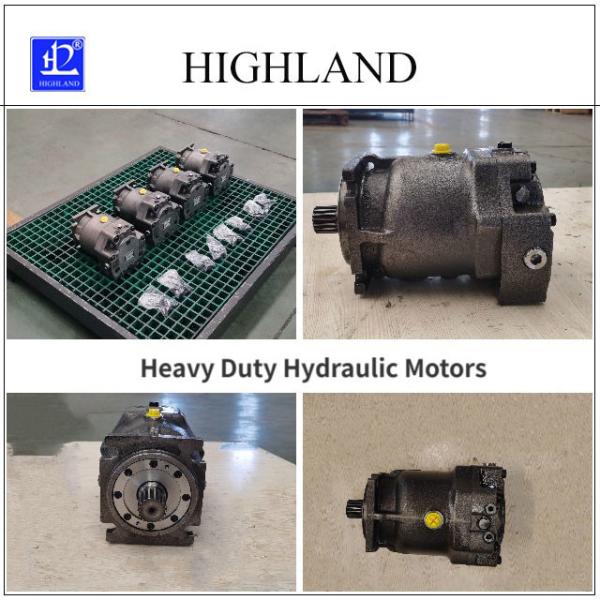

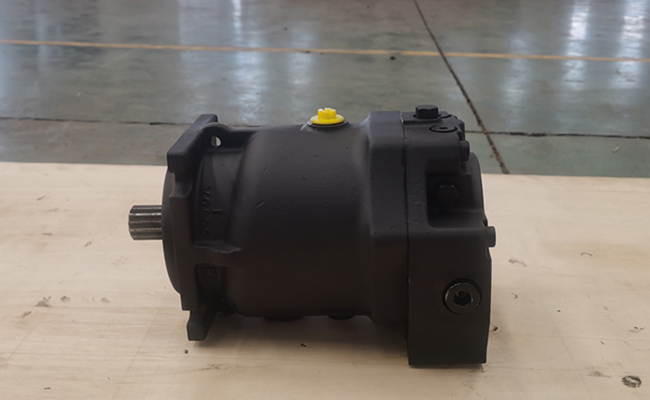

Understanding the Power and Performance of Heavy Duty Hydraulic
Motors HMF30
Quick Detail:
·Cast iron housing
·Hydraulic components
·Model HMF30
·Hydraulic system power components
·Principle hydraulic transmission
·Features easy maintenance
·Simple layout
·System Solutions
·Work fast
·Fully replace imported products
·Patent certificate certification
·Application mobile crusher heavy duty hydraulic motors
·1 year warranty
Description:
Heavy duty hydraulic motors features:
Heavy Duty Hydraulic Motors are robustly designed and built to
withstand rigorous operational demands. They leverage the power of
hydraulic fluid under pressure to generate rotational motion and
torque, which is then used to drive a variety of heavy machinery,
from construction equipment to industrial machinery.
HMF Series Technical parameter:
| HMF hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 |
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed
(Full load condition) | r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 |
| Min continuous working speed | r/min | 500 |
| Pressure | Rated working pressure | Mpa | 35 |
| Max working pressure (transient) | Mpa | 42 |
| Continuous working pressure | Mpa | 30 |
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 |
| Torque | Continuous output torque
(Under continuous working pressure) | Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 |
| Temperature | Allowable shell temperature | ℃ | 80 |
| Max working temperature of oil tank | ℃ | 70 |
| weight | HPV series hydraulic pump hydraulic oil drain | kg | 45 | 46 | 63 | 64 | 82 | 88 |
| HPV series hydraulic motor hydraulic oil drain | kg | 30 | 30 | 36 | 36 | 36 | 38 |
Notices:
Proper Installation: The installation of a Heavy Duty Hydraulic
Motor should be done by a trained professional to ensure that it is
installed correctly. Improper installation can lead to reduced
performance, increased wear, and even damage to the motor. It's
crucial to follow the manufacturer's instructions and
specifications to ensure the motor operates at its best.
Application:
Mixer truck: concrete mixer truck, cement mixer truck;
Coal mining machinery: scraper;
Industry: pharmaceutical machinery;
Transport vehicles: road rollers, concrete pump trucks, stabilized
soil mixers
FAQ
Q1. Can I have a sample order for mobile crusher heavy duty
hydraulic motors ?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
10 to 15 days for samples, mass production according to MOQ
Q3. Do you have any MOQ limit for mobile crusher heavy duty
hydraulic motors ?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
Ship by sea, it generally takes 15-20 days to arrive, and air is
also optional.
Q5. How to proceed an order for mobile crusher heavy duty hydraulic
motors ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our
suggestions.
Thirdly customer confirms the samples and places deposit for formal
order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q7: How to deal with the faulty?
A: Firstly, our products are produced in strict quality control
system.Secondly, we will inspect the defective pump and motor, and
then respond according to the actual situation
