Product Summary:
Cable and wire flame resistant machine meets requirements of
UL1581-2001, which section of 1060 (uprightness burning and
FT1test),1061( cable burning test),1080(VW-1 burning
test),1090(burning test of
electrical equipment’ wire) and 1100(The test specimen oriented
horizontally / FT2 burning test)
Equipment Composing:
Test machine + control system + high accuracy extended burning
control system + temperature testing
system + testing equipment and testing fixture + burning air and
flow control system)
Testing fixture:
| model | Cable and wire flame resistant chamber |
| main fixtures | test stand and burning torch |
| test stand | stainless steel S304.Vertical and horizontal stand |
| burning torch | ASTM D 5025-99 |
| standard power | vertical torch: 500W |
| horizontal torch: 225W |
| crater diameter | 0.90±0.03mm |
| crater lamp long | 1.60±0.05mm |
| the highness from torch to air entrance | 102mm |
| torch lamp angle | horizontal 90°, vertical 20° (Verticalaxis remains on the vertical plane and keeps 20 degree in vertical direction.) |

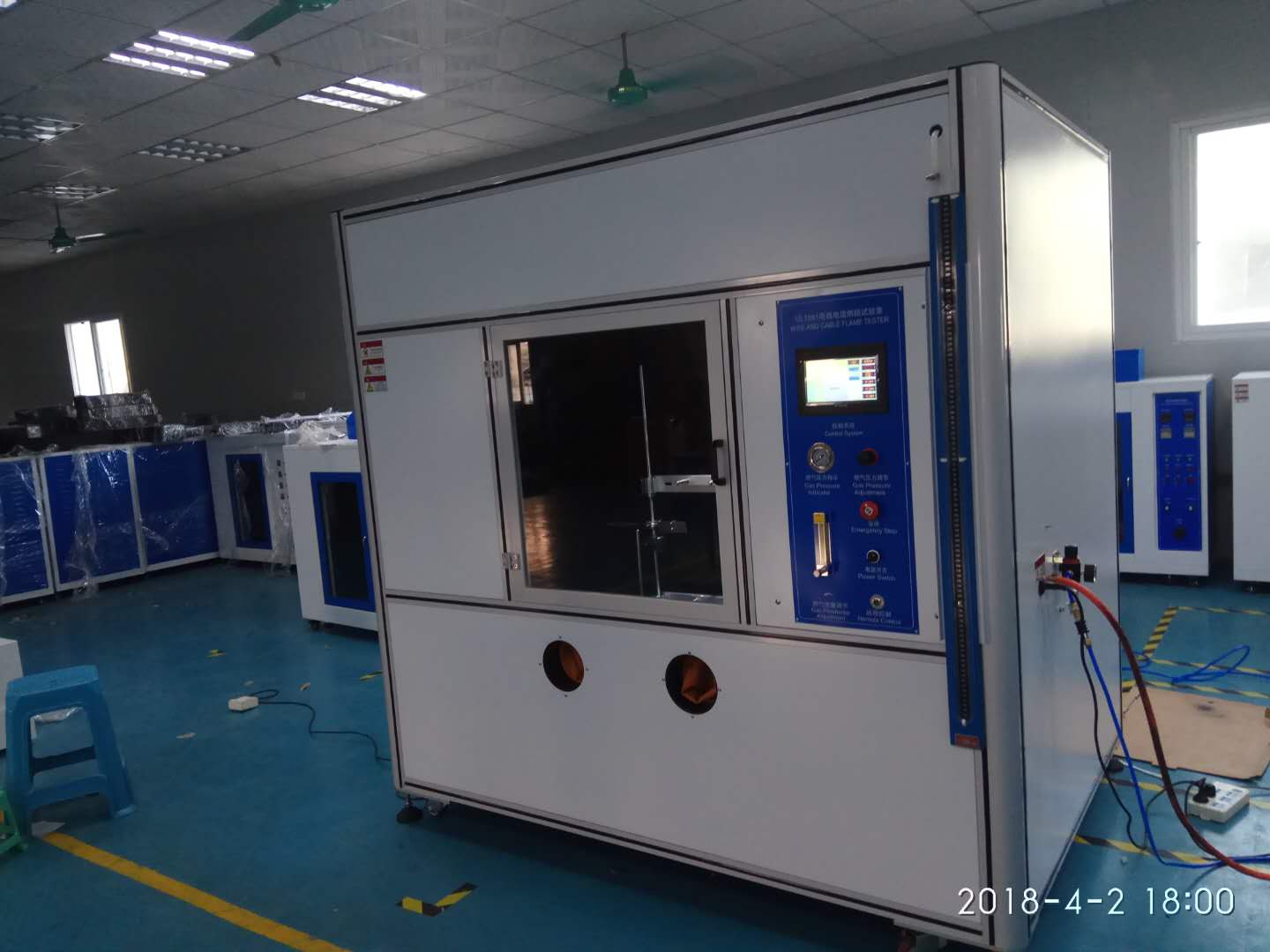

Test chamber:
A,this chamber is made by stainless steel, which has the
characteristics of nice appearance and rust corrosion.
B,Ventilation and smoke-releasing system is on the top of the
chamber, so exhaust gas would release out of the chamber after
finishing test(this price will not include the cost of adding
environmental processing systems according to environment requirement.
C,Steel glass door is set on the front of the chamber to convenient
for observing testing situation.
D,Operate panel is set on right of observed door to convenient for
observing testing situation.
E,test chamber specification:200X120X200(CM),cubage:4.8m3
Control system:
(1)intelligent-touch screen +PLC control testing time, testing frequency and extended time can be set and
recorded by touch screen.It has the characteristic of high
intelligent, menu type operation, simple intuitive and accuracy
testing result
(2)time relay control model:Testing time, testing frequency and extended time are control by
traditional relay to ensure accuracy of testing result.(burning time 0~999.9S,stop burning time:0~99.9s burning
frequency:1~9999 extended time 0~999.9S)
Extended control system:
High accuracy extended burning control system(photographic control system),automatically records the time of stopping burning, and without record manually to reduce
testing tolerances.
Temperature testing system:
(1)Thermal sensor(copper pipe and thermocouple)--Pipe construction of metallic copper with high conductivity, 20mm flame for 1.75 g pipe, 125mm flame for 10 g
pipe.
(2)K-type thermocouple with 0.5mm diametrical stainless steel pipe as
coat.
(3)Intelligent PID temperature list matched with K-type thermocouple,
the indication could be more than 1000℃.
Burning air and air flow control system:
A,burning air:methane(purity of 98%,testify by supplier certification, thermal number is 998BTU
(British thermal unit)/cubic feet.37.1 per cubic meter mega joule(provide for oneself).
B,burning control system:
(1)main include: flow meter,pressure reducing valves
(2)Flow meter:emendation by D3195 criterion with a flow meter which accuracy is
at lest 2%.Flow scale is 1000ml/min.
(3)Burning pressure reducing valves:1 EA, the air flow can be shift to 10 pound/cube inch.
