    Socket Plug Insertion Force Tester , LCD Display Computer Testing Equipment

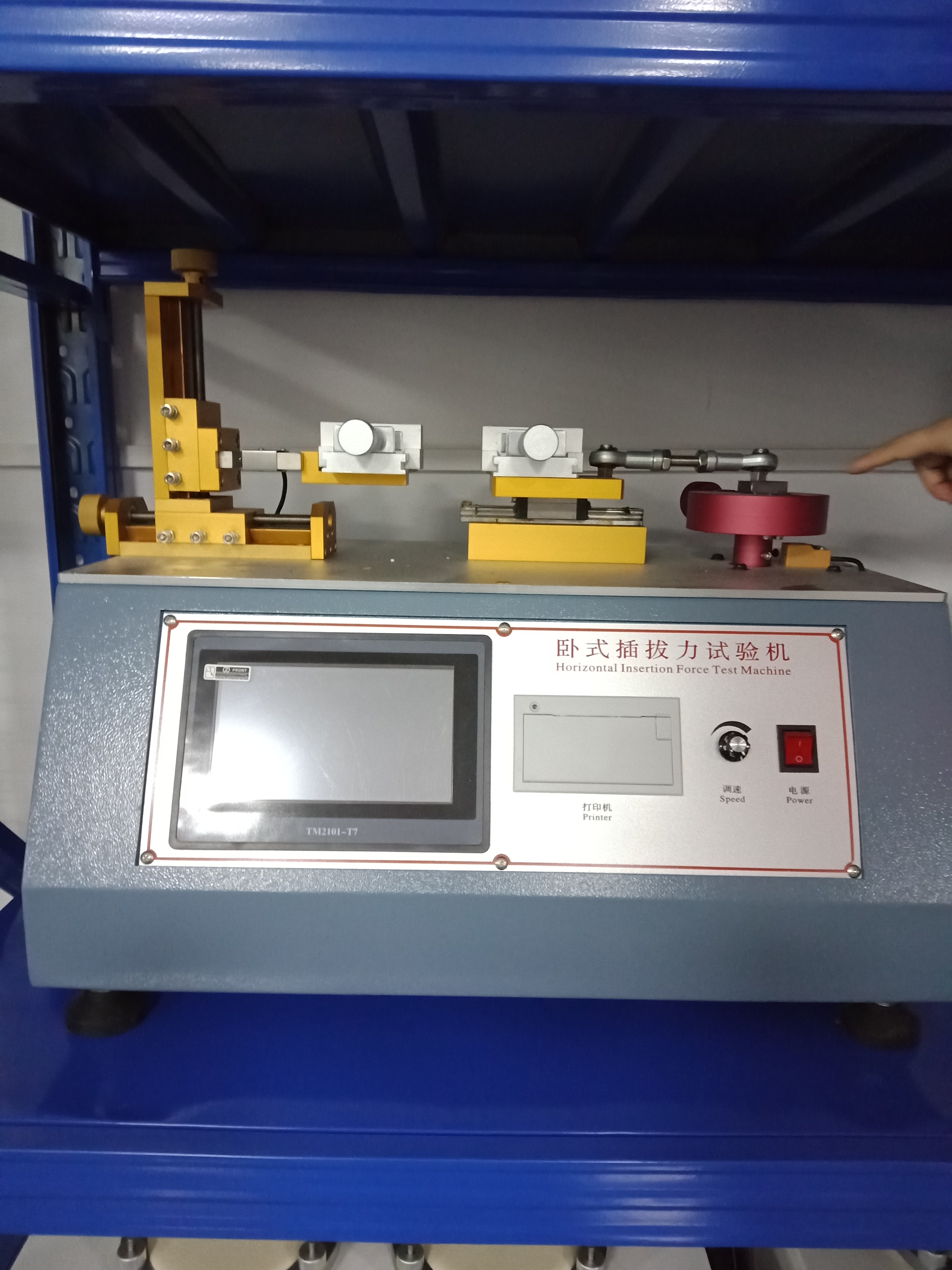

    Socket Plug Insertion Force Tester with LCD Display
    Phone and Laptop Connector Testing Equipment
    The socket plug insertion force tester is designed for comprehensive connector plug testing applications. Featuring embedded microcomputer control technology, this equipment provides precise measurement and display of insertion force, extraction force, and real-time force values.
    Key Features
    • Programmable test cycles with adjustable count settings
    • Variable travel speed with digital speed display
    • Automatic zero calibration function
    • Mathematical computation capabilities
    • Rotating eccentric power transmission design
    • Independent test speed from stroke length
    • Dual unit conversion between Newtons (N) and Kilograms (KG)
    • Equally efficient for both long and short stroke connectors
    Technical Specifications
    ModelSocket Plug Insertion Force Tester
    Frequency Range0 to 999,999 cycles
    Transmission ModeRotating Eccentric Mechanism
    DisplayLarge-screen LCD Real-time Display
    Force Measurement Range0 ~ 20 kg
    Minimum Force Resolution0.01 kg
    Stroke Adjustment Range0 ~ 50 mm
    Test Speed0 ~ 60 mm/s (Digital Display)
    Zero SettingAutomatic Origin Zeroing
    Unit ConversionN, KG
    Dimensions550 (D) × 470 (W) × 450 (H) mm
    Operating VoltageSingle-phase 220V
    Socket Plug Insertion Force Testing Equipment with LCD Display
