Plastic HDT VICAT Softening Point Temperature Tester , Plastic
Molds HDT Vicat Tester
Specification:
| Temperature range | Room temperature - 300°C |
| Heating rate | (120±10)°C/h (12±1°C/6min); (50±5)°C/h(5±0.5°C/6min) |
| Temperature error | 0.1°C |
| Temperature accuracy | ±0.5°C |
| Max. deflection error | ±0.01mm |
| Deflection measuring range | 0-1.5mm |
| Sample holder | 3 pieces |
| Load pole and pallet weight | 68g |
| Heating medium | methyl silicone oil or Transformer oil |
| Heating power | 4KM |
| Cooling method | >150°C, natural cooling; <150°C water cooling or natural
cooling |
| Power: | Single phase, 220V, 50Hz |
| Dimension | 528mm*545mm*37mm |
Instruction:
Plastic Molds HDT Vicat Tester used to measure plastic, rubber, nylon, cable …
macro molecule material thermal deformation temperature and vi cat
softening temperature, the main sensor,
element with high-quality, high reliability, security, the sample
frame has the function of automatic up and down,
simultaneity equip power test software system function mightiness,
is a suit of special software of thermal
deformation temperature, vi cat softening point temperature test.

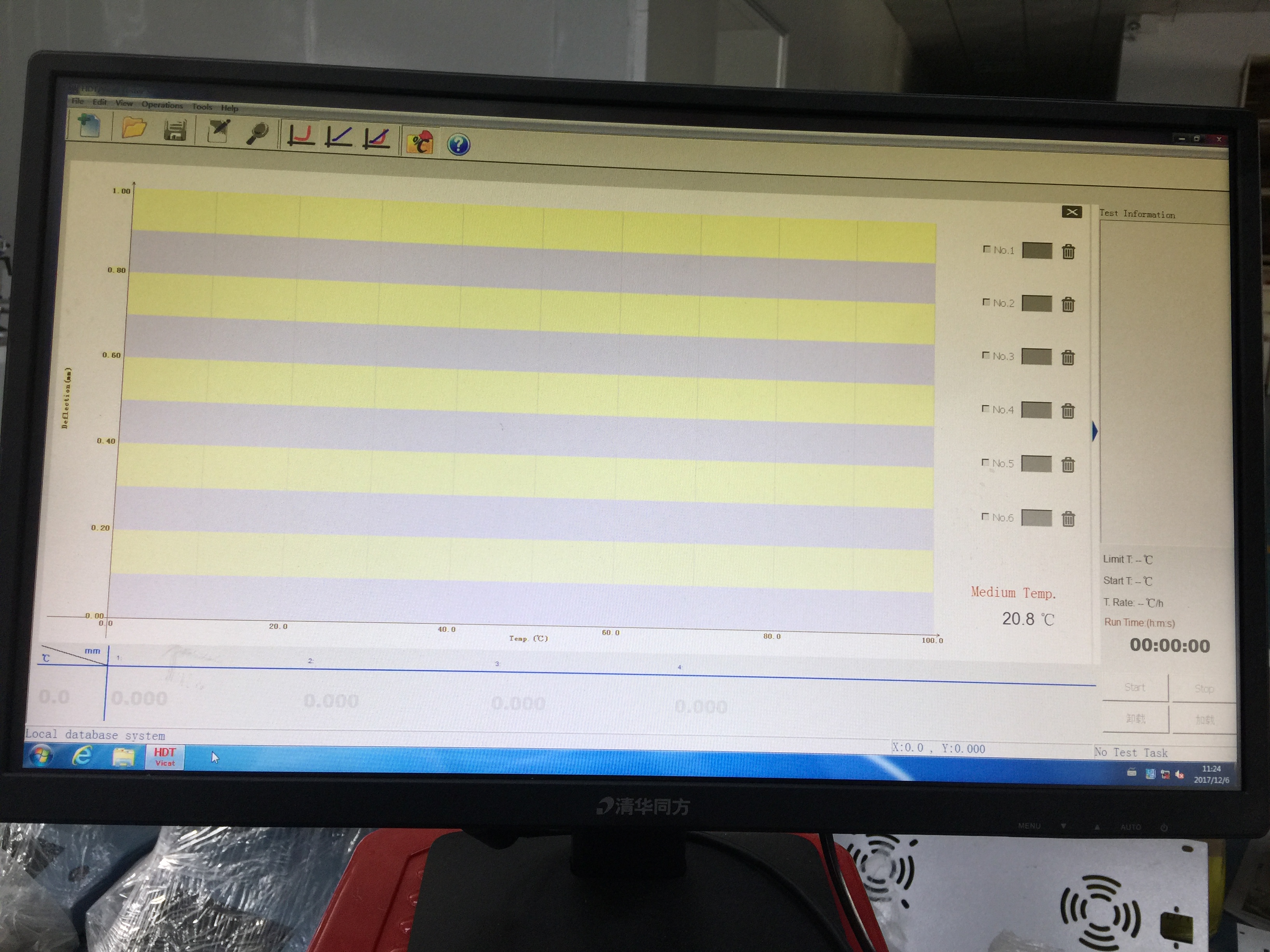

Plastic HDT VICAT Softening Point Temperature Tester adopts Windows 98, Windows 2000 with control software, in the test
process, monitor the real experiment temperature, the deformation
curve and dynamically when real draw the curve of the
temperature,deformation,realize the historical inventory, print
test reports, so that future query at any time before test data,
for a variety of experimental data contrast research, is a highly
intelligent test instrument, when using the mouse to click anywhere
in the deformation, temperature curve, interface of the deformation
and the temperature will automatically display here.
Meet Standard:
Plastic HDT VICAT Softening Point Temperature Tester meet IS075(E),IS0306(E),GB /T8802,GB/T1633,GB/T1634
