Automatic rotary glass bottle syrup and honey twist off servo
capping machine capper

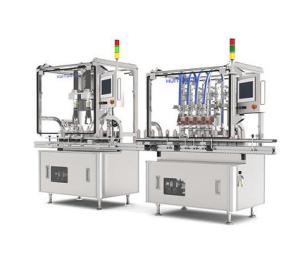

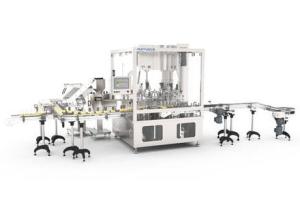

Huituo automatic capping machine
Full automatic capping machine, 2-20 head, it can be linear or
rotary
Speed: 50-300bpm
Bottle volume: 10ml-5L
Bottles suitable: cylinder, flat and irregular shapes
Caps suitable: twist-off, screw cap, pump cap, spray trigger etc.
Key components description
1. Bottle-feeding by screw rod
The screw separates the bottle and is installed the bottle entering
detection, achieving no bottle and no cap. When the bottle is
clogged, the machine automatically stops and alarms.
2. Different products change-Templates
For different specifications of products, it adopts quick-release
design, including the bottle-in star wheel, bottle-out star wheel,
bottle-taking star wheel, bottle in-and-out guide plate, and outer
retaining ring.
3. Capping head
The capping head rubber strip is made of wear-resistant material,
which can effectively prevent the cap from being damaged during the
capping process. The whole set of head adopts modular design. When
changing different specifications, the whole set is quickly
converted into production, which is convenient, simple and fast.
Servo capping torque control
Servo capping, precise and adjustable torque
Each capping head is flexibly controlled by its own independent
servo motor. The servo motor controls the capping head to rotate
forward and reverse, which can better ensure there is no damage to
the products. The torque is adjustable, the torque is displayed on
the touch screen in real time and the actual torque is recorded.
4. Rejection system
A double-conveyor belt structure with an intelligent detection
sensor is installed at the bottle exiting part. The qualified
bottles are normally conveyed, and the unqualified (no cap or no
tube) bottles are automatically diverted to another conveyor belt
by using a swing cylinder. When bottle block appears, the capping
machine will automatically stop and it will start again when the
problem solved.
5. Cap sorter
It is to arrange the disorderly large round cap regularly. The
speed of the unscrambler is automatically adjusted according to the
elevator. The sorter is automatically controlled by the capping
machine interface, without manual adjustment.
