    Auto Weighing Packing Machine Vffs Peanuts Packaging Machine Nuts dates Weighing And Packaging Machine

    Ask Lasest Price
    Brand Name : LONGCHUANG
    Model Number : LC-420A
    Certification : CE,ISO9001
    Price : Negotiation
    Payment Terms : T/T, L/C
    Supply Ability : 100 sets/month
    Delivery Time : 7-25 days
    • Product Details
    • Company Profile

    Auto Weighing Packing Machine Vffs Peanuts Packaging Machine Nuts dates Weighing And Packaging Machine

    vffs packaging machine puffed food potato chips snacks weighing and packaging machine


    1. Application:

    Suitable for packaging many different kinds of products; such as puffy food, shrimp roll, peanut, popcorn, cornmeal, dried fruit, seed, small hardware,dumplings, vegetable, fruits and sugar etc.which shape is roll, slice and granule.


    2. Technical parameter:

    Main machine parameterLC-420LC-520LC-720LC-820LC-920LC-1050
    Speed10-50bag/min10-50bag/min10-40bag/min10-40bag/min10-40bag/min5-30bag/min
    Bag-making size

    (L)80-300mm*

    (W)80-200mm

    (L)80-350mm

    (W)100-250mm

    (L)100-500mm

    (W)160-350mm

    (L)100-500mm(W)200-400mm

    (L)100-500mm

    (W)220-450mm

    (W)200-500mm (L)100-480mm,

    film pulling twice 800mm

    Bag-making typeback sides sealingback sides sealingback sides sealingback sides sealingback sides sealingback sides sealing
    Filling range80-1000ml150-2000ml150-4000ml150-5000ml150-6000ml1000-10000ml
    Max film width420mm520mm720mm820mm920mm1050mm
    Film thickness(0.04-0.08)0.04-0.08mm0.04-0.08mm0.04-0.08mm0.04-0.08mm0.04-0.08mm0.06-0.12mm
    Air consumtion0.3m³/min 0.65Mpa0.3m³/min 0.65Mpa0.3m³/min 0.65Mpa0.3m³/min 0.65Mpa0.3m³/min 0.65Mpa750L/min 0.6×105Pa
    Power2.2KW/220V 50-60HZ2.5KW/220V 50-60HZ3KW/220V 50-60HZ3KW/220V 50-60HZ3KW/220V 50-60HZ7.5KW/220V 50-60Hz
    Machine sizeL1320*W950*H1360mmL1430*W1200*H1700mmL1716*W1260*H1820mmL1854*W1440*H2019mmL2014*W1574*H2095mm2100×1450×2600mm
    Machine weight450kg400kg500kg600kg700kg900kg

    3. Technical characteristics:
    1. PLC control with stable reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing,cutting , finished in one operation.
    2. Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.
    3. Film-pulling with servo motor double belt: less pulling resistance, bag is formed in good shape with better appearance, belt is resistant to be worn-out.
    4. External film releasing mechanism: simpler and easier installation of packing film.
    5. Adjustment of bag deviation just needed to be controlled by the touch screen. Operation is very simple .
    6. Close down type mechanism , defending powder into inside of machine.


    4. FAQ:

    Q1: How to find a Packing machine suitable for my product?

    To Longchuang distinguished customers and friends , in order to we have an accurate and efficient communication, please kindly consult us and provide following details as possible as you could .

    1-Packing products:

    2-Packing weight:

    3-Dimension of the bag

    4-Bag type:

    5-Packing capacity:


    If you have video or picture is very warm weclome.

    For there are over 100 kinds of packing machine,different on bag sizes.

    In order to recommend you the most suitable and best solution ,we need know these information.

    Of course , if you are new and just start this business and don't have bag size , pls send us a sample picture or draft drawing)

    , we can help you to find similar weight bag for your reference with our rich professional experience.



    Q2: Can you send engineer service oversea?
    Yes, and you need to pay some fee.
    According to save your cost, we will send you a video of the installation of the machine.


    Q3. How can we make sure about the machine's quality after we paid?
    Before delivery, we will send you the pictures and videos of the machines.
    And also you can visit our factory and test the machine.


    Q4. We would like to have our own rand , is that ok ?

    Yes, we accept OEM/ODM with your brand or your design.


    Q5. Payment Method ?
    1. 30% deposit, 70% before shipping.
    2. We accept T/T, L/C etc.

    Q6: Warranty
    2 years for main parts after you received machines (Except the quick-wear parts)


    Q7: About shipment:

    You could designated freight logistics , we could also help for shipment by professionally .


    5. Why Choose us ?

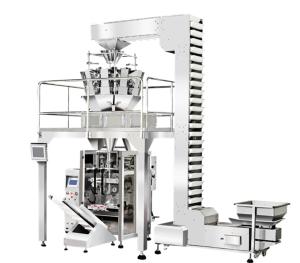

    6. Machine picture


    Type large10-hopper scale
    Maximum weighing10-2000g
    Precision of weighing0.1-2g
    Speed of weighing80 bags /minute
    Power1000W Voltage: 220V
    Gross weight271kg
    Net weight220kg
    Preset number of product10 kinds
    Overall size(mm)1680(L)*1182(W)*1268H)

    Main feature:

    (1) Range of application: dosing and weighing of small grain, powder material of daily food and condiment such as white sugar, salt, seed, rice, sodium glutamate, fodder, milk powder, coffee and sesame, etc.

    (2) High precision data-type weighing sensor realizes precise weighing.

    (3) Microcomputer control system with double vibration feeding and imported instrument; advanced technology and simple operation.

    (4) Stainless steel sealed machine body; corrosion resistance and dust resistance.

    (5) The measuring hopper can be disassembled rapidly; and it’s convenient in cleaning and maintenance.

    (6) It can make different combination to enlarge weighing range according to customer’s requirements.

    (7) With strong compatibility, it’s easy to be supported with other packing device.


    7. Bag samples


    8. Customer reputation



    9. If you need more machine details and videos , pls contact us directly.
