19.5Inch TFT LCD PCAP Touch Monitor Screen With Mount Bracket

    Buy cheap 19.5Inch TFT LCD PCAP Touch Monitor Screen With Mount Bracket from wholesalers

    Buy cheap 19.5Inch TFT LCD PCAP Touch Monitor Screen With Mount Bracket from wholesalers
    • Buy cheap 19.5Inch TFT LCD PCAP Touch Monitor Screen With Mount Bracket from wholesalers
    • Buy cheap 19.5Inch TFT LCD PCAP Touch Monitor Screen With Mount Bracket from wholesalers
    • Buy cheap 19.5Inch TFT LCD PCAP Touch Monitor Screen With Mount Bracket from wholesalers

    19.5Inch TFT LCD PCAP Touch Monitor Screen With Mount Bracket

    Ask Lasest Price
    Brand Name : CJTOUCH
    Model Number : COT195-CFK03
    Certification : RoHS, CE, FCC
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 5000pcs per quarter
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

    19.5Inch TFT LCD PCAP Touch Monitor Screen With Mount Bracket

    19.5 inch Flat Screen multi-touch PCAP Touch Monitor with industrial tft lcd mount bracket provided


    Dongguan CJTouch Electronic Co., Ltd. is a leading provider of Touchscreen, Touch monitor and All-in-one computers. With advanced, cost-effective touch solutions, CJTouch believes in engaging with customers while providing customized services. (More information : www.cjtouch.com )

    Technology:

    CJTouch has always relied on continuous innovation to stay ahead in touch technology. We are committed to delivering the most cutting-edge solutions in the industry.
    Surface Acoustic Wave (SAW) touch technology
    Infrared touch technology
    Projected Infrared Touch technology


    19.5 inch PCAP touch monitor Features:

    • Using new industrial TFT LCD screen
    • Projected capacitive touch screen with 10-point tempered cover lens option.
    • The screen is full flat with IP65 waterproof resistance.
    • The material is Aluminum alloy.
    • Using Industrial grade motherboard with reliable performance.
    • Our products have got FCC,ROHS,CE,CCC,ISO certification approval.
    • Satisfactory after-sales service

    19.5 inch Capacitive touch monitor specification :

    General
    ModelCOT195-CFK03
    SeriesFlat screen
    LCD Type19.5 inch a-Si TFT-LCD
    Video InputVGA and DVI H-DMI
    OSD controlsAllow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
    Power Supply

    Type: External brick

    Input (line) voltage: 100-240 VAC, 50-60 Hz

    Output voltage/current: 12 volts at 4 amps max

    Mount Interface

    1)VESA 75mm and 100mm

    2)Mount bracket, horizontal or vertical

    LCD Specification
    Active Area(mm)437.2 × 239.6 mm (H×V)
    Resolution1600(RGB)×900, HD+
    Dot Pitch(mm)0.0904×0.2626 mm (H×V)
    Nominal Input Voltage+3.3V(Typ)
    Viewing angle (v/h)85/85/80/80 (Typ.)(CR≥10)
    Contrast1000 : 1 (Typ.)
    Luminance(cd/m2)250 (Typ.)
    Response Time(Rising)3.8/1.2 (Typ.)(Tr/Td) ms
    Support Color16.7M Colors
    Backlight MTBF(hr)Min30000 hrs
    Touchscreen Specification
    TypeCjtouch Projected Capacitive touch screen
    Multi touch5/10points touch
    Touch Life Cycle10 millions
    Touch Response time8ms
    Touch System InterfaceUSB interface
    Power consumption+5V@80mA
    External AC Power Adapter
    OutputDC 12V /4A
    Input100-240 VAC, 50-60 Hz
    MTBF50000 hr at 25°C
    Environment
    Operating Temp.0~50°C
    Storage Temp.-20~60°C
    Operating RH:20%~80%
    Storage RH:10%~90%

    Components:

    USB Cable 180cm*1 Pcs,

    VGA Cable 180cm*1 Pcs,

    Power Cord with Switching Adapter *1 Pcs,

    Bracket*2 Pcs


    19.5 inch PCAP touch monitor drawing:

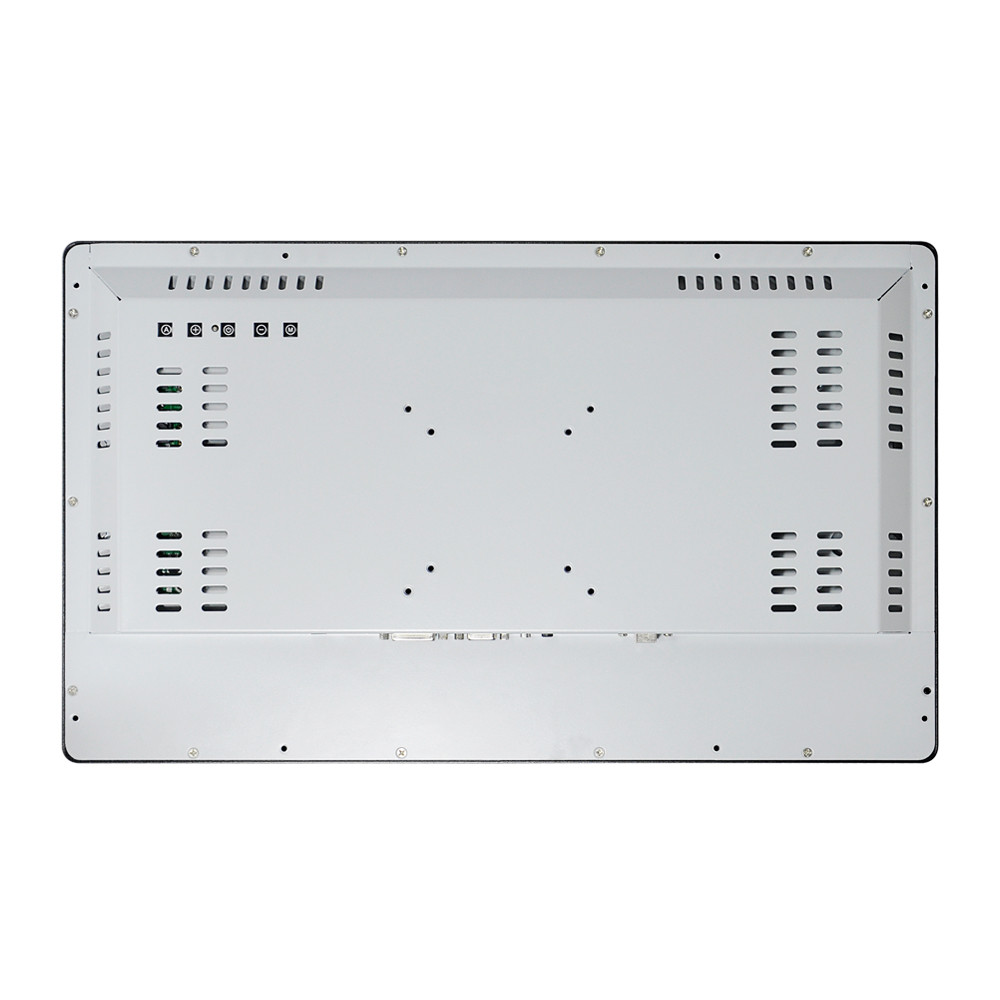

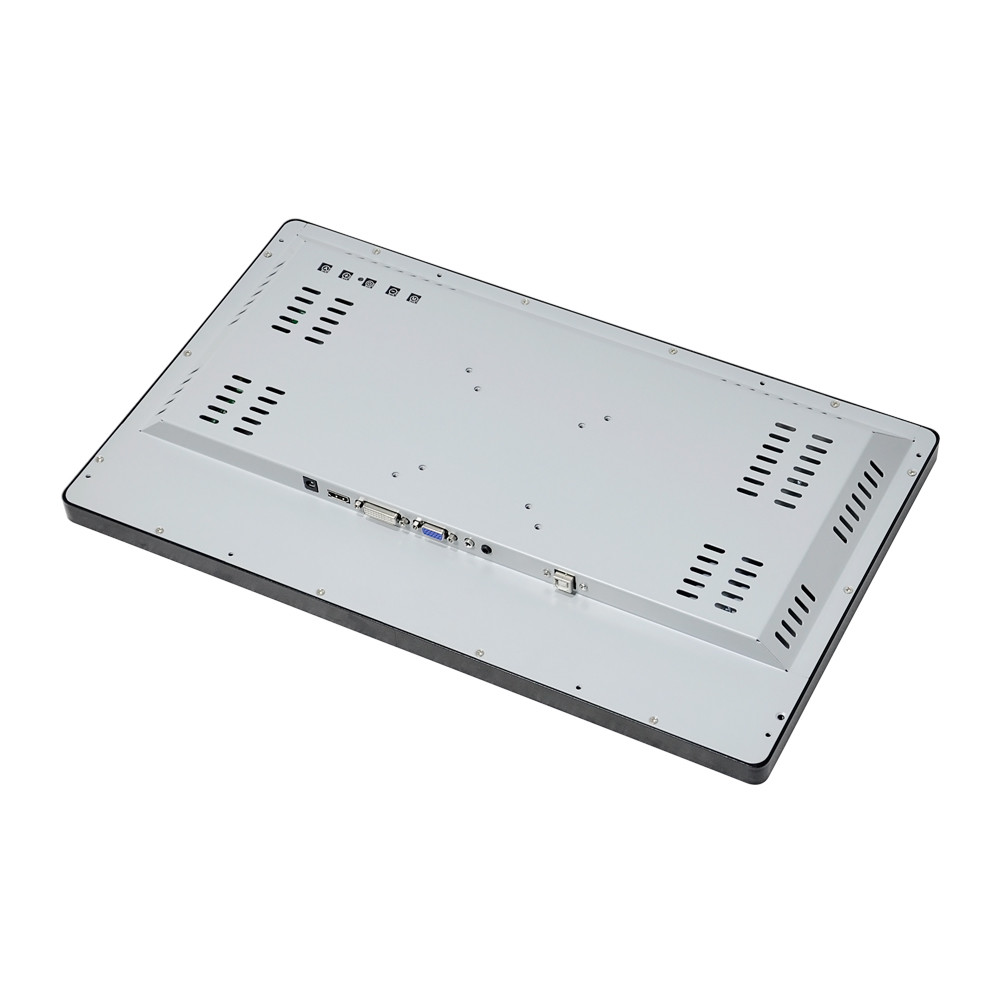

    19.5 inch Capacitive display monitor pictures:
