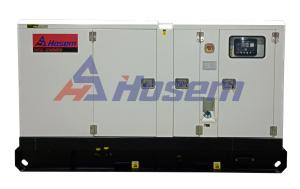

50kVA 40kW Soundproof Diesel Generator Set Three Phase with Cummins
4BTA3.9-G2
| Generator Set Specification |
| Model | A-C55S |
| Max. Power | kVA | 55 |
| kW | 44 |
| Rate Power | kVA | 50 |
| kW | 40 |
| Frequency | Hz | 50 |
| Rate Voltage | V | 380/220 |
| Rate Current | A | 72.2 |
| Fuel Tank Capacity | L | 120 |
| Dimension For Open-type Genset | mm | 1880 X 830 X 1350 |
| Weight For Open-type Genset | kg | 755 |
| Dimension For Soundproof Genset | mm | 2300 X 900 X 1250 |
| Weight For Soundproof Generator | kg | 1005 |
| Noise Level for Soundproof Generator at 7M | dBA | 72 |
| Battery | Two of Free Maintenance Battery |
| Engine Specification |
| Engine Manufacturer | Dongfeng Cummins Engine Co., Ltd. |
| Engine Brand | Cummins |
| Engine Model | 4BTA3.9G2 |
| No. of Cylinder | 4 Cylinder in line |
| Aspiration | Turbocharged & Aftercooled |
| Governor | Electric |
| Engine Max. Output Power | kW | 55 |
| Displacement | L | 3.9 |
| Compression Ratio | 17.3: 1 |
| Starting Voltage | V | 24 |
| Bore | mm | 102 |
| Stroke | mm | 120 |
| Lubrication Oil Capacity | L | 11 |
| Intake Air Flow | M3/Min | 4.13 |
| Fuel Consumption at 100% Load | L/H | 15 |
| Alternator Specification |
| Alternator Manufacturer | Fuzhou Hosem Power Co., Ltd. |
| Alternator Model | ASF224E |
| Alternator Brand | Hosem |
| Rate Output | kVA | 60 |
| Frequency | Hz | 50Hz |
| Altitude | M | ≤1000 |
| Insulation | Class H |
| Phase | 3 Phase |
| Working Temperature without power decrease | ≤40℃ |
| Working Altitude without power decrease | ≤1000m |
| Automatic Voltage Regulation | 0 |
| Protection Grade | IP23 |
| Alternator for optional | Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for
optional |
|
| Control Panel Specification |
| Controller Brand | Smartgen |
| Controller Model | HGM6120N |
| Breaker Brand | Delixi |
| Breaker Capacity (A) | 80 |
| Battery Charger | Smartgen Model BAC06A |
| Emergency Stop Button | Supply |
| Automatic Mains Fail (AMF) | Supply |
| Fuel Level | Supply |
| Automatic Transfer Switch | ATS as optional part |
| The control panel supply the full protection with alarm and
shutdown of the diesel generator include Start-up fault (generator
set shutdown), High coolant temperature (alarm and generator set
shutdown), Low oil pressure (alarm and generator set shutdown), Low
fuel level (alarm), Low cooling fluid level alarm (as optional),
Overload (alarm and generator set shutdown), Battery voltage high
(alarm). |
|
|
| Optional controller: Each model of Deepsea, Smartgen, ComAp brand
controller. |
Product Description
Δ Genset Features
1. Brand-new engine, with the starter motor.
2. Brushless alternator, single bearing, flange connection, IP23, H
insulation class, with AVR.
3. Auto control panel with LCD display.
4. Genset with a battery charge of the main supply.
5. Circuit Breaker, Exhaust Silencer.
6. Four-cylinder, four-stroke, water-cooled diesel engine.
7. 8 hours running at full load on a single tank of fuel.
8. Dual access doors for easy maintenance.
9. Optional automatic or manual transfer switches are available.
10. ATS ( auto transfer switch for city power and generator power )
/ AMF (auto mains failure) /parallel running for option.

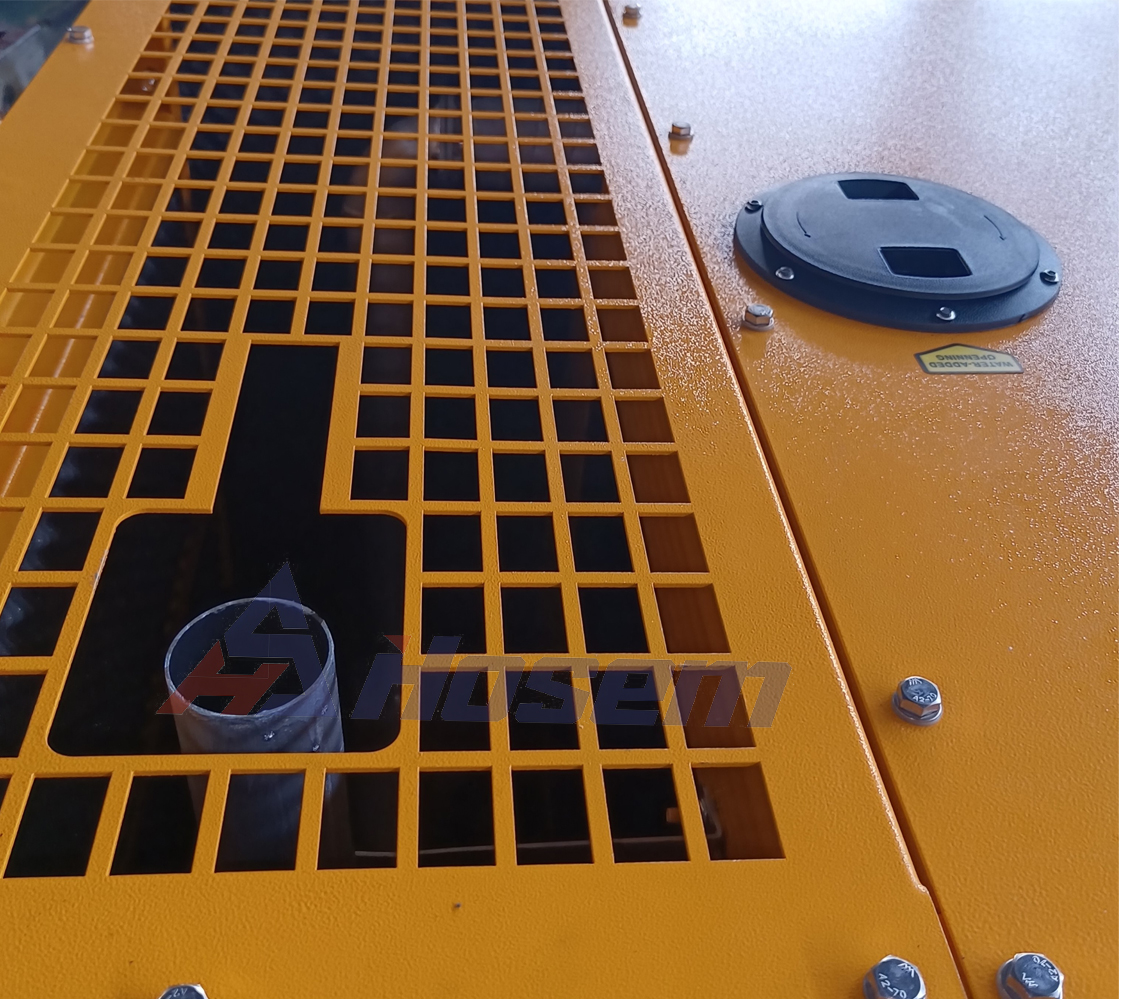

11. Weatherproof and soundproof, enclosure high-grade SS304 and
powder coat paint protected.
12. Incorporate internally mounted exhaust silencers.
13. External recessed emergency stop button for extra safety.
